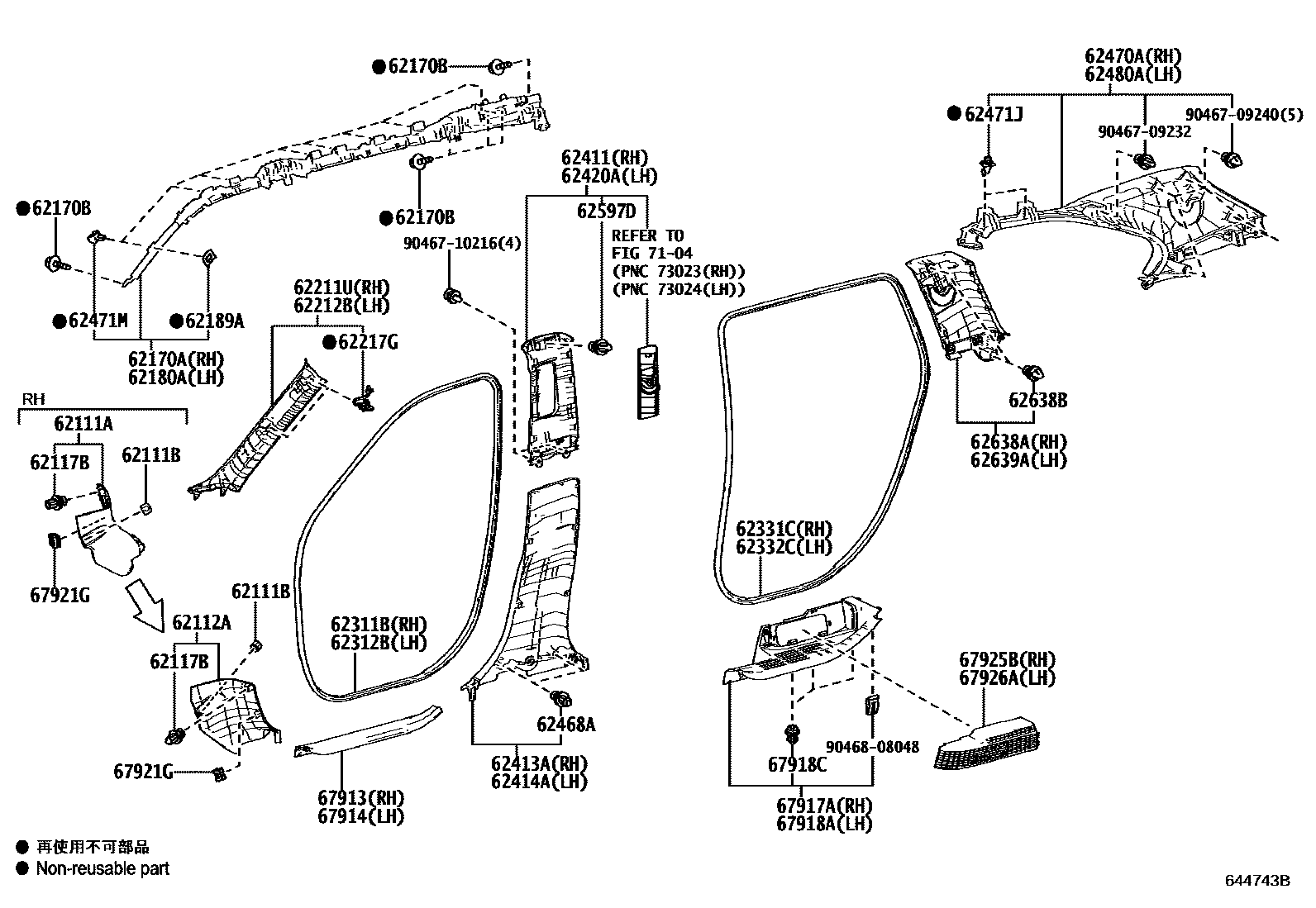

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-0E070-C0iAXUH78,TXUA7#..RHD202011-202312

BLACK,TRIM1#,2#,4#

main62101-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main62101-0E080-C0iGSU75..RUS;AXUH7#..LHD..LIMD;AXUH78..LHD..XLE..EUR202002-202311

BLACK,TRIM1#,2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-A0024iAXUH7#,GSU7#202002-202410

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-0E080-C0iAXUH78,GSU7#..RHD202011-202312

BLACK,TRIM1#,2#,4#

main62102-0E090-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main62102-0E090-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main62489-0E010iAXUH78,TXUA7#..RHD202002-202410

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0E100iAXUH7#,GSU75202002-202008

sub62170-0E101

main62170-0E101iAXUH7#,GSU75..GCC,RUS202009-202208

sub62170-0E102

main62170-0E102iAXUH7#,TXUA75..GCC,RUS202208-202410

main62170-0E190iAXUH78,GSU7#..ARL,EUR202102-202207

sub62170-0E191

main62170-0E191iAXUH78,TXUA7#..ARL,EUR202208-202312

62170BBOLT, W/WASHER

main90080-11699iAXUH78,TXUA7#..RHD202002-202410

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0E100iAXUH7#,GSU75202002-202008

sub62180-0E101

main62180-0E101iAXUH78,GSU7#..ARL,EUR202009-202208

sub62180-0E102

main62180-0E102iAXUH7#,TXUA75..GCC,RUS202208-202410

main62180-0E190iAXUH78,GSU7#..ARL,EUR202102-202207

main62180-0E191iAXUH78,TXUA7#..RHD202208-202312

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAXUH7#,GSU7#202002-202410

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-0E110-B0iAXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202002-202311

LT. GRAY,TRIM1#,2#

main62210-0E110-B0iAXUH7#..(LE,XLE)..GCC202002-202410

LT. GRAY,TRIM1#,2#,4#

main62210-0E110-B0iAXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202011-202312

LT. GRAY,TRIM1#,2#,40

main62210-0E110-C0iAXUH78..RHD..EUR202011-202312

BLACK,TRIM41

main62210-0E110-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

main62210-0E110-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM42

main62210-0E120-B1iAXUH7#..LIMD..GCC202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER,LT. GRAY,TRIM1#,2#,40

main62210-0E120-B1iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,LT. GRAY,TRIM1#,2#,40

main62210-0E120-B1iAXUH78..LIMD..(EUR,GCC)202003-202312

LT. GRAY,TRIM1#,2#,40

main62210-0E120-B1iTXUA75..LIMD..RUS202210-202311

AUDIO-12.3INCH T2 JBL11SPEAKER,LT. GRAY,TRIM1#,2#,4#

main62210-0E120-C1iAXUH78,TXUA7#..LIMD..ARL202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER,BLACK,TRIM41

main62210-0E120-C1iAXUH78,TXUA7#..LIMD..ARL202003-202312

BLACK,TRIM41

main62210-0E120-C1iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,BLACK,TRIM42

main62210-0E120-C1iAXUH78..LIMD..GCC202311

AUDIO-12.3INCH JBL11SPEAKER,BLACK,TRIM41,42

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-0E120-B0iAXUH78..LHD..LIMD..EUR202002-202410

LT. GRAY,TRIM1#,2#,4#

main62220-0E120-B0iAXUH7#..(LE,XLE)..GCC202002-202311

LT. GRAY,TRIM1#,2#

main62220-0E120-B0iAXUH78..LIMD..EUR202011-202312

LT. GRAY,TRIM1#,2#,40

main62220-0E120-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41,42

main62220-0E120-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM42

main62220-0E120-C0iAXUH78..RHD..EUR202011-202312

BLACK,TRIM41

main62220-0E130-B1iAXUH78,TXUA7#..LIMD..ARL202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER,LT. GRAY,TRIM1#,2#,40

main62220-0E130-B1iAXUH78,TXUA7#..LIMD..ARL202003-202312

LT. GRAY,TRIM1#,2#,40

main62220-0E130-B1iAXUH78..LHD..LIMD..EUR202210-202311

AUDIO-12.3INCH T2 JBL11SPEAKER,LT. GRAY,TRIM1#,2#,4#

main62220-0E130-B1iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,LT. GRAY,TRIM1#,2#,40

main62220-0E130-C1iAXUH78..LHD..LIMD..EUR202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER,BLACK,TRIM41

main62220-0E130-C1iAXUH78..RHD..EUR202003-202312

BLACK,TRIM41

main62220-0E130-C1iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,BLACK,TRIM42

main62220-0E130-C1iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,BLACK,TRIM41,42

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iAXUH7#,TXUA7#202002-202410

main62217-48020iAXUH7#,TXUA7#202310-202312

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0E080iAXUH7#,GSU7#202002-202212

sub62311-0E081

main62311-0E081iAXUH7#,TXUA75..LHD202301-202410

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0E080iAXUH7#,TXUA7#202002-202212

sub62312-0E081

main62312-0E081iAXUH7#,TXUA75..LHD202301-202410

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0E080iAXUH7#,GSU7#202002-202212

sub62331-0E081

main62331-0E081iAXUH7#,TXUA75..LHD202301-202410

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0E080iAXUH7#,GSU7#202002-202212

sub62332-0E081

main62332-0E081iAXUH70..LIMD202301-202410

62411GARNISH, CENTER PILLAR, RH

main62410-0E090-B0iAXUH7#..(LE,XLE)..GCC202002-202311

LT.GRAY,TRIM1#,2#

main62410-0E090-B0iAXUH7#..(LE,XLE)..GCC202002-202410

LT.GRAY,TRIM1#,2#,4#

main62410-0E090-B0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202312

LT.GRAY,TRIM1#,2#,40

main62410-0E090-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202003-202312

BLACK,TRIM41

main62410-0E090-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM42

main62410-0E090-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0E070-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main62413-0E070-C0iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202311

BLACK,TRIM1#,2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main62414-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-0E090-B0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202312

LT.GRAY,TRIM1#,2#,40

main62420-0E090-B0iAXUH7#..(LE,XLE)..GCC202002-202311

LT.GRAY,TRIM1#,2#

main62420-0E090-B0iAXUH7#..(LE,XLE)..GCC202002-202410

LT.GRAY,TRIM1#,2#,4#

main62420-0E090-C0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202312

BLACK,TRIM41

main62420-0E090-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

BLACK,TRIM42

main62420-0E090-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main62489-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0E200-B0iAXUH7#..(LE,XLE)..GCC202002-202311

LT.GRAY,TRIM1#,2#

main62470-0E200-B0iAXUH7#..(LE,XLE)..GCC202002-202410

LT.GRAY,TRIM1#,2#,4#

main62470-0E200-B0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202312

LT.GRAY,TRIM1#,2#,40

main62470-0E200-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM42

main62470-0E200-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

main62470-0E200-C0iAXUH78..LIMD..GCC202003-202312

BLACK,TRIM41

62471JCLIP (FOR ROOF SIDE GARNISH)

main62489-60020iAXUH7#,GSU7#202002-202410

62471MCLIP

main90467-18017iAXUH7#,GSU7#202002-202410

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0E210-B0iAXUH7#..(LE,XLE)..GCC202002-202311

LT.GRAY,TRIM1#,2#

main62480-0E210-B0iAXUH7#..(LE,XLE)..GCC202002-202410

LT.GRAY,TRIM1#,2#,4#

main62480-0E210-B0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202003-202312

LT.GRAY,TRIM1#,2#,40

main62480-0E210-C0iAXUH78,TXUA75..LHD..LIMD..(EUR,RUS)202003-202312

BLACK,TRIM41

main62480-0E210-C0iAXUH78..LIMD..GCC202311

BLACK,TRIM41,42

main62480-0E210-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM42

62597DCLIP

main90467-10188iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

62638AGARNISH, QUARTER PILLAR, RH

main62550-0E030-B0iAXUH7#..LE,XLE202002-202008

LT.GRAY,TRIM1#,2#

sub62550-0E031

main62550-0E030-B0iAXUH7#..LE,XLE202002-202008

LT.GRAY,TRIM1#,2#,4#

sub62550-0E031

main62550-0E030-B0iGSU75..LIMD202003-202008

LT.GRAY,TRIM1#,2#,40

sub62550-0E031

main62550-0E030-C0iGSU75..LIMD202003-202008

BLACK,TRIM41

sub62550-0E031

main62550-0E031-B0iAXUH7#..(LE,XLE)..GCC202009-202311

LT.GRAY,TRIM1#,2#

main62550-0E031-B0iAXUH7#..(LE,XLE)..GCC202009-202410

LT.GRAY,TRIM1#,2#,4#

main62550-0E031-B0iAXUH7#..(LE,XLE)..GCC202009-202312

LT.GRAY,TRIM1#,2#,40

main62550-0E031-C0iAXUH78..LIMD..GCC202009-202312

BLACK,TRIM41

main62550-0E031-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM42

main62550-0E031-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41,42

62638BCLIP

main90467-09240iAXUH7#,GSU7#202002-202410

62639AGARNISH, QUARTER PILLAR, LH

main62560-0E030-B0iAXUH7#..LE,XLE202002-202008

LT.GRAY,TRIM1#,2#

sub62560-0E031

main62560-0E030-B0iAXUH7#..LE,XLE202002-202008

LT.GRAY,TRIM1#,2#,4#

sub62560-0E031

main62560-0E030-B0iGSU75..LIMD202003-202008

LT.GRAY,TRIM1#,2#,40

sub62560-0E031

main62560-0E030-C0iGSU75..LIMD202003-202008

BLACK,TRIM41

sub62560-0E031

main62560-0E031-B0iAXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202009-202410

LT.GRAY,TRIM1#,2#,4#

main62560-0E031-B0iAXUH7#..(LE,XLE)..GCC202009-202311

LT.GRAY,TRIM1#,2#

main62560-0E031-B0iAXUH7#..(LE,XLE)..GCC202009-202312

LT.GRAY,TRIM1#,2#,40

main62560-0E031-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

BLACK,TRIM41,42

main62560-0E031-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

BLACK,TRIM42

main62560-0E031-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202009-202312

BLACK,TRIM41

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0E100-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main67913-0E100-C0iAXUH7#..(LE,XLE)..GCC202003-202312

BLACK,TRIM1#,2#,4#

main67913-0E110-C0iAXUH78,TXUA75..LIMD..(EUR,GCC,RUS)202002-202410

BLACK,TRIM1#,2#,4#

main67913-0E110-C0iAXUH78..RHD..EUR202210-202312

NEW ZEALAND SPEC,BLACK,TRIM1#,2#,4#

main67913-0E120-C0iAXUH78,GSU7#..LIMD..ARL202012-202312

BLACK,TRIM1#,2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0E100-C0iAXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202002-202311

BLACK,TRIM1#,2#

main67914-0E100-C0iAXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202003-202312

BLACK,TRIM1#,2#,4#

main67914-0E110-C0iAXUH78..RHD..EUR202210-202312

NEW ZEALAND SPEC,BLACK,TRIM1#,2#,4#

main67914-0E110-C0iAXUH7#,GSU75..LIMD..(EUR,GCC,RUS)202002-202410

BLACK,TRIM1#,2#,4#

main67914-0E120-C0iAXUH78,TXUA7#..LIMD..ARL202012-202312

BLACK,TRIM1#,2#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0E080-C0iTXUA75..RUS202003-202312

BLACK,TRIM1#,2#,4#

main67917-0E090-C0iAXUH78..XLE..EUR;AXUH7#..LHD..LIMD202002-202311

BLACK,TRIM1#,2#

main67917-0E090-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0E090-C0iTXUA7#..ARL202003-202312

BLACK,TRIM1#,2#,4#

main67918-0E100-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main67918-0E100-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

67918CCLIP(FOR REAR SCUFF PLATE)

main67773-0E020iAXUH7#,GSU7#202002-202410

67921GRETAINER, FRONT DOOR SCUFF PLATE

main67921-0E050iAXUH7#,GSU7#202002-202410

67925BPANEL, REAR DOOR SCUFF, RH

main67925-0E050-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main67925-0E050-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

67926APANEL, REAR DOOR SCUFF, LH

main67926-0E040-C0iAXUH78..ARL,EUR;AXUH78..LIMD..GCC202002-202410

BLACK,TRIM1#,2#,4#

main67926-0E040-C0iAXUH78..ARL,EUR;AXUH78..LIMD..GCC202002-202311

BLACK,TRIM1#,2#

7104

9046709232

main90467-09232

9046709240

main90467-09240

9046710216

main90467-10216

9046808048

main90468-08048

41 parts on this diagram · 3 diagrams in section
