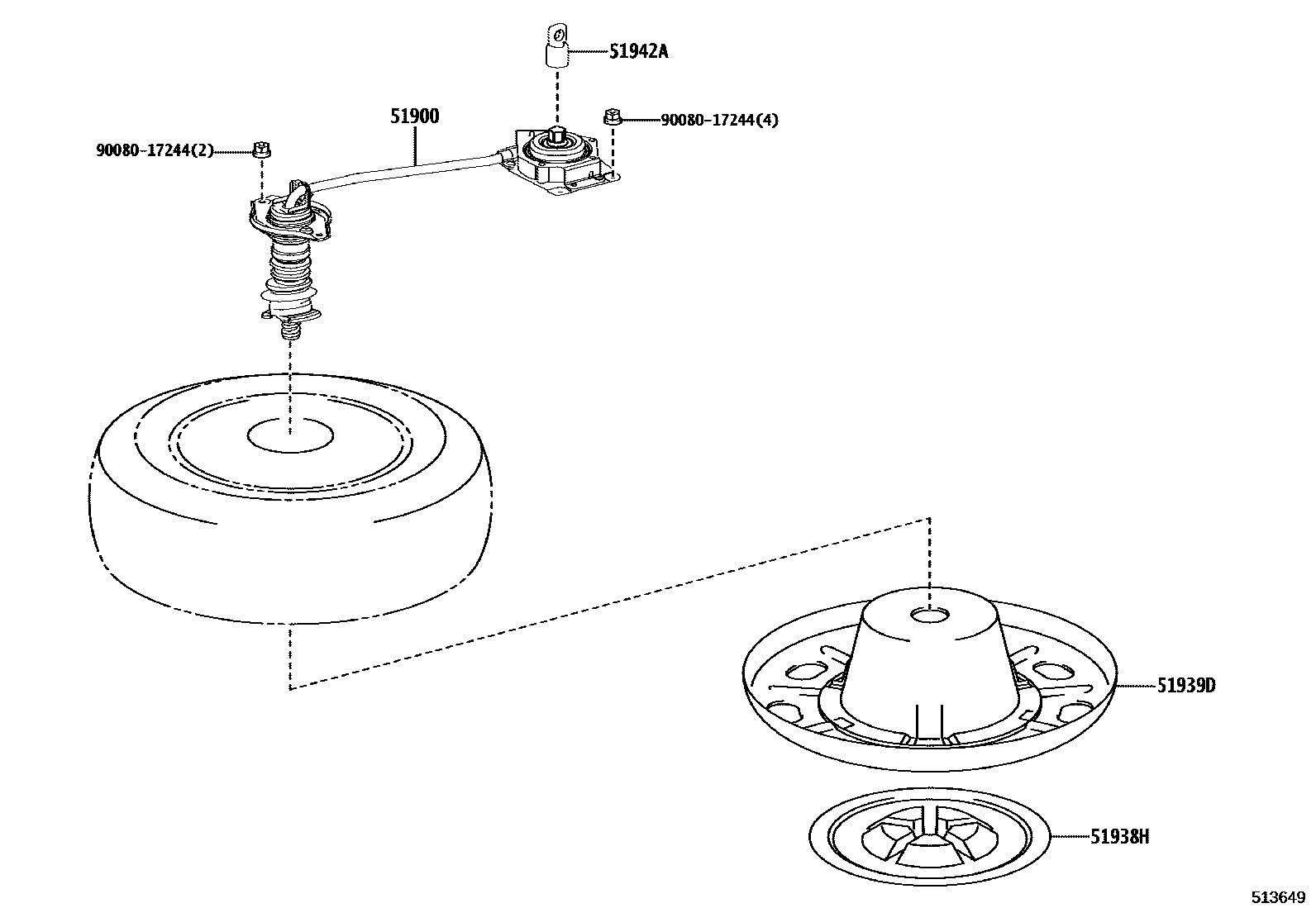

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1

51900CARRIER ASSY, SPARE WHEEL

main51900-0E042iAXUH7#,GSU7#202002-202210

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

main51938-0E030iAXUH7#,GSU7#..ARL,GCC,RUS202002-202210

51939DCOVER, SPARE WHEEL CARRIER LOCK

main51939-0E031iAXUH7#,GSU7#..ARL,GCC,RUS202002-202210

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010iAXUH7#,GSU7#202002-202210

9008017244

main90080-17244

5 parts on this diagram · 3 diagrams in section
