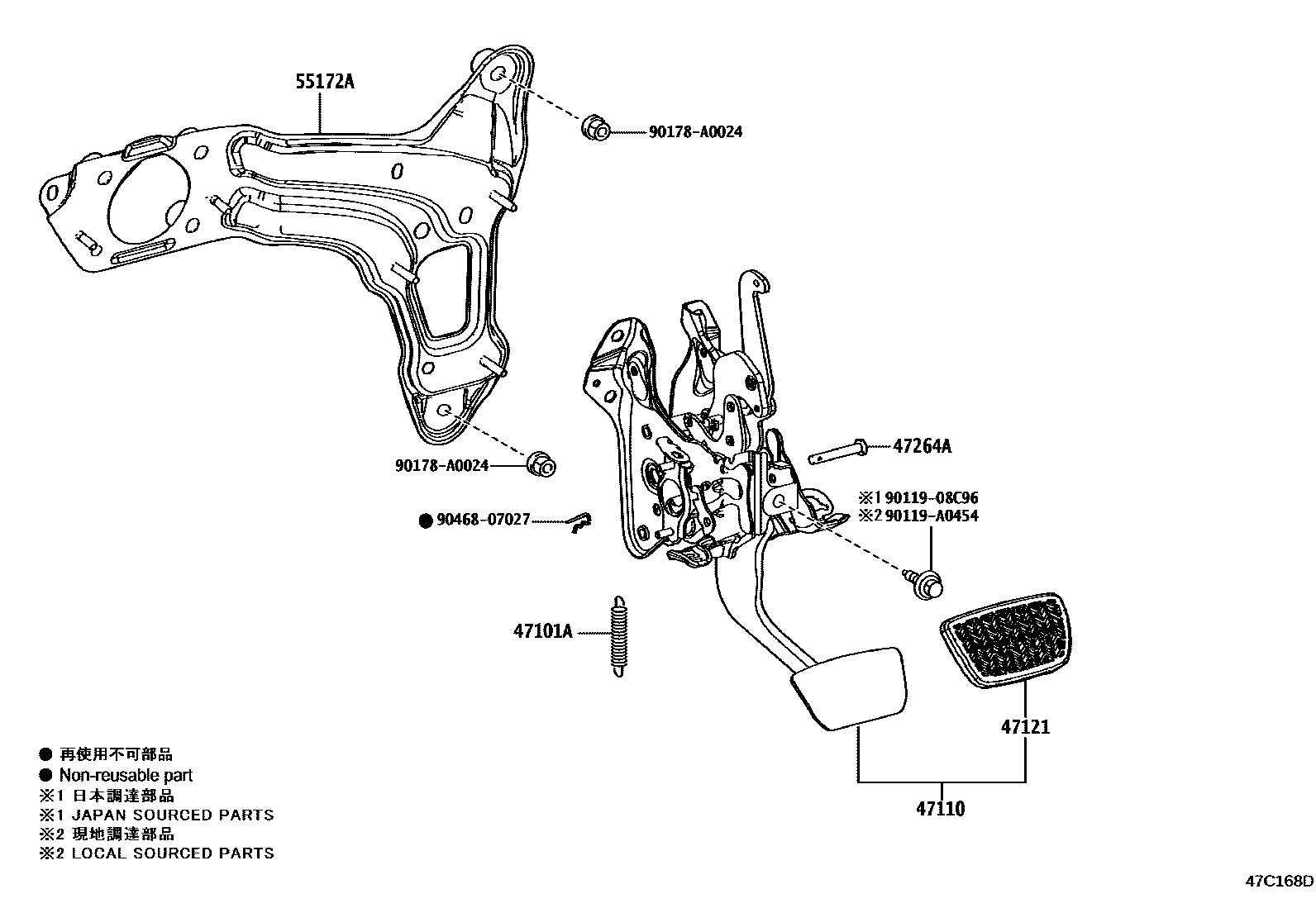

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXUH7#,TXUA75..LHD202210-202311

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E140iGSU75..RUS202003-202210

main47110-0E141iTXUA75..RUS202210-202311

main47110-0E150iAXUH7#..LHD202002-202210

main47110-0E151iAXUH70..LIMD202311-202410

main47110-0E160iGSU7#..ARL202012-202210

main47110-0E161iTXUA7#..ARL202210-202312

main47110-0E170iAXUH78..RHD202011-202210

main47110-0E171iAXUH78..RHD202210-202312

47121PAD, BRAKE PEDAL

main47121-48010iAXUH7#,GSU7#202002-202210

main47121-62010iAXUH7#,TXUA75..LHD202210-202311

47264APIN(FOR PUSH ROD)

main90240-06028iTXUA75..RUS202210-202311

main90240-08078iAXUH78;AXUH70..LE,XLE202311

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0E050iAXUH70..LIMD202311-202410

main55172-0E080iAXUH78,TXUA7#..RHD202210-202312

9011908C96

main90119-08C96

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046807027

main90468-07027

9 parts on this diagram · 4 diagrams in section
