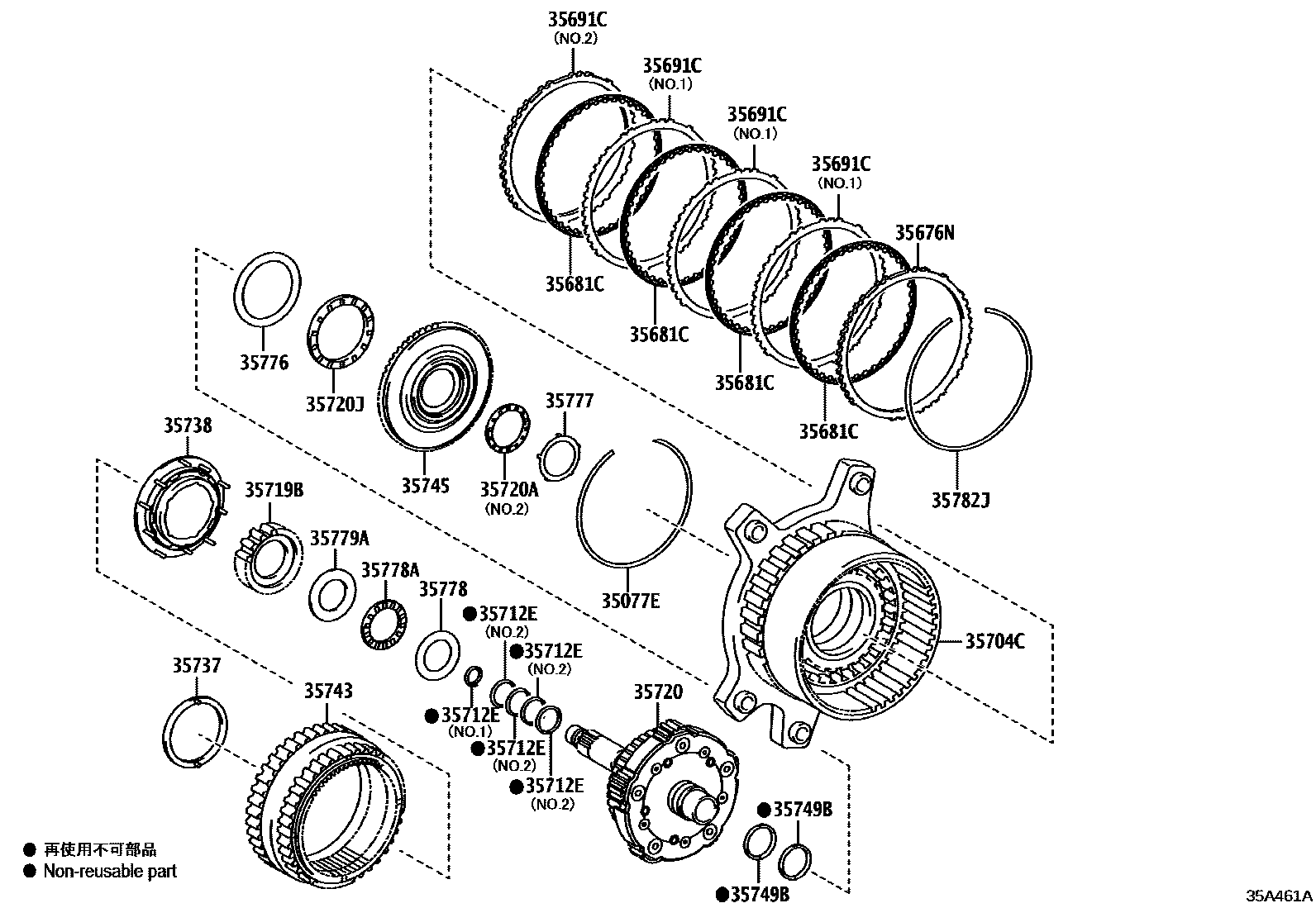

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35676NFLANGE, BRAKE, NO.1
T=3.5,MARK 0,TMMWV:REFER 35-01
T=3.6,MARK 1,TMMWV:REFER 35-01
T=3.7,MARK 2,TMMWV:REFER 35-01
T=3.8,MARK 3,TMMWV:REFER 35-01
T=3.9,MARK 4,TMMWV:REFER 35-01
T=4.0,MARK 5,TMMWV:REFER 35-01
T=4.1,MARK 6,TMMWV:REFER 35-01
T=3.5,MARK 0,AISIN AW:REFER 35-01
T=3.6,MARK 1,AISIN AW:REFER 35-01
T=3.7,MARK 2,AISIN AW:REFER 35-01
T=3.8,MARK 3,AISIN AW:REFER 35-01
T=3.9,MARK 4,AISIN AW:REFER 35-01
T=4.0,MARK 5,AISIN AW:REFER 35-01
T=4.1,MARK 6,AISIN AW:REFER 35-01
35681CDISC, BRAKE, NO.1
(J)
35691CPLATE, BRAKE, NO.1
NO.1,TMMWV:SEE 35-01
NO.2,TMMWV:SEE 35-01
(J),NO.1
(J),NO.2
35704CGEAR SUB-ASSY, COUNTER DRIVE
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
35712ERING, INPUT SHAFT OIL SEAL
NO.1,AISIN:SEE 35-01
NO.1,TMMWV:SEE 35-01
NO.2,AISIN:SEE 35-01; NO.2,TMMWV:SEE 35-01
35719BGEAR, PLANETARY SUN
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
35720GEAR ASSY, FRONT PLANETARY
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
NO.2
NO.1,*228
NO.1,TMMWV:SEE 35-01
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35737WASHER, PLANETARY CARRIER THRUST
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
TMMWV:REFER 35-01
AISIN:REFER 35-01
35749BRING, INPUT SHAFT OIL SEAL, REAR
35776GEAR, PRIMARY REDUCTION DRIVEN
AISIN AW:REFER 35-01
TMMWV:REFER 35-01
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
21 parts on this diagram · 4 diagrams in section
