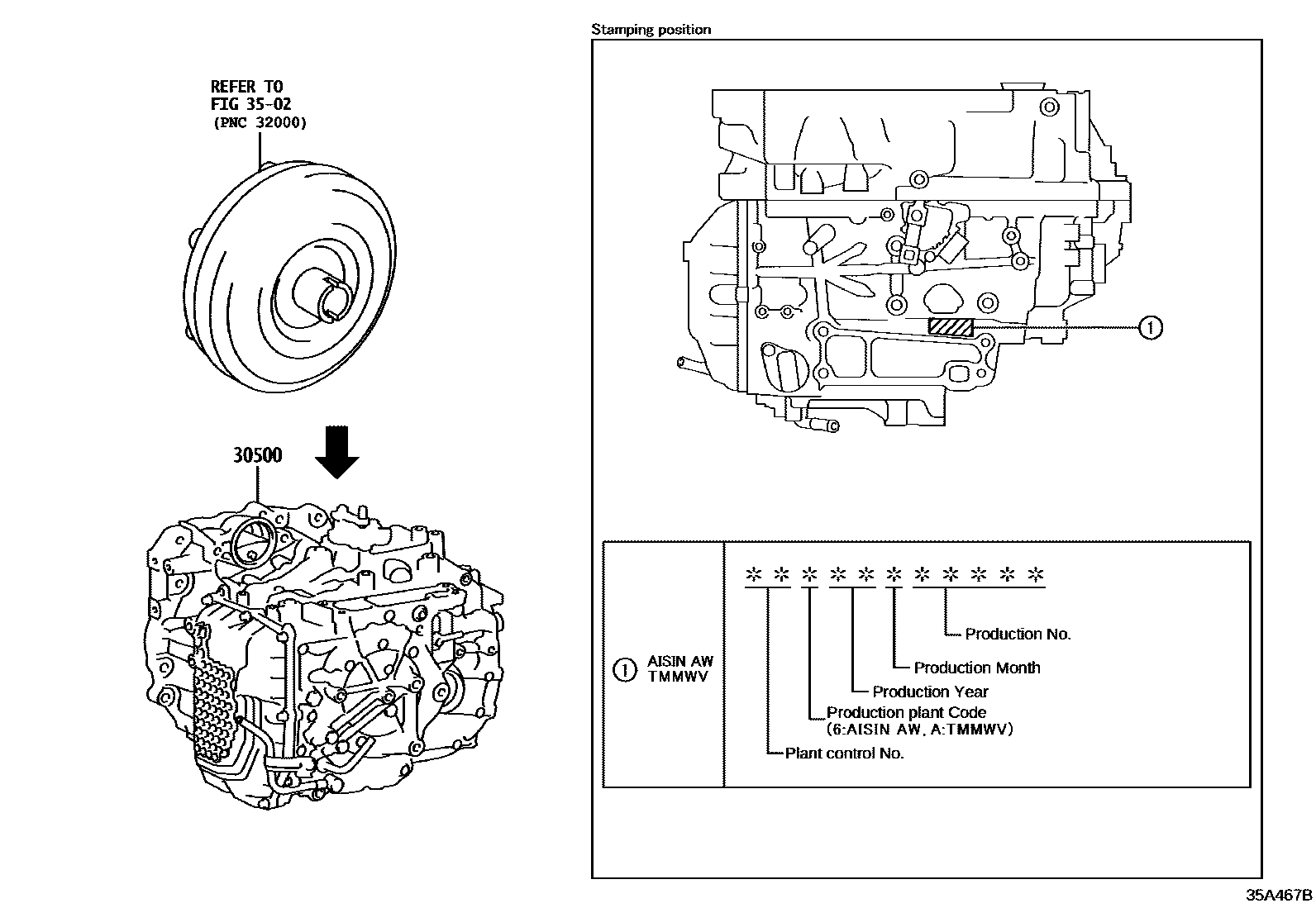

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1UA80E,UA80F,UA81E,UA81F 0002 1UA80F

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0E100iGSU70202012-202210

UA80E,TMMWV

main30500-0E150iGSU75..RUS202003-202210

UA80F,TMMWV

main30500-0E160iGSU75..ARL202012-202210

UA80F,TMMWV

main30500-0E190iTXUA70202210-202312

UA81E

main30500-0E200iTXUA75..ARL202210-202312

UA81F,(L)

main30500-0E210iTXUA75..RUS202210-202311

UA81F,(L)

main30500-48610iTXUA75..ARL202401

UA81F,(J)

main30500-48690iTXUA75..RUS202311

UA81F,(J)

main30500-48710iGSU75..RUS202003-202210

UA80F,AISIN AW

main30500-48720iGSU75..ARL202012-202210

UA80F,AISIN AW

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

2 parts on this diagram · 2 diagrams in section
