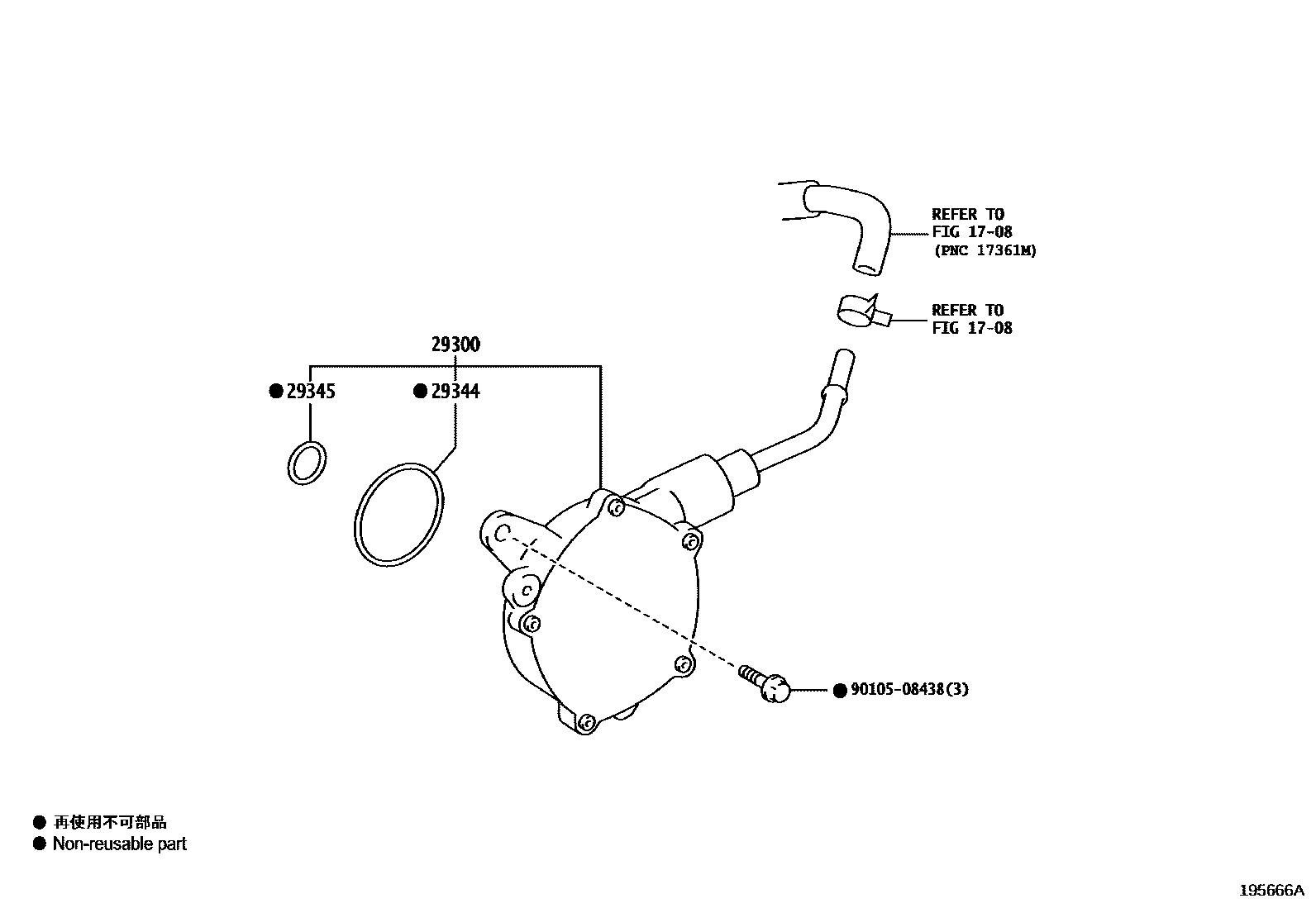

VACUUM PUMP

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-0P011i2GRFKS..GSU7#202003-202210

main29300-25012iT24AFTS..TXUA7#..ARL202210-202312

(J)

main29300-F0012iT24AFTS..TXUA7#..ARL202210-202312

(L)

29344RING, O VACUUM PUMP, NO.2

main29344-0P010i2GRFKS..GSU7#202003-202210

29345RING, O VACUUM PUMP, NO.3

main29345-0P010i2GRFKS..GSU7#202003-202210

9010508438

main90105-08438

5 parts on this diagram · 2 diagrams in section
