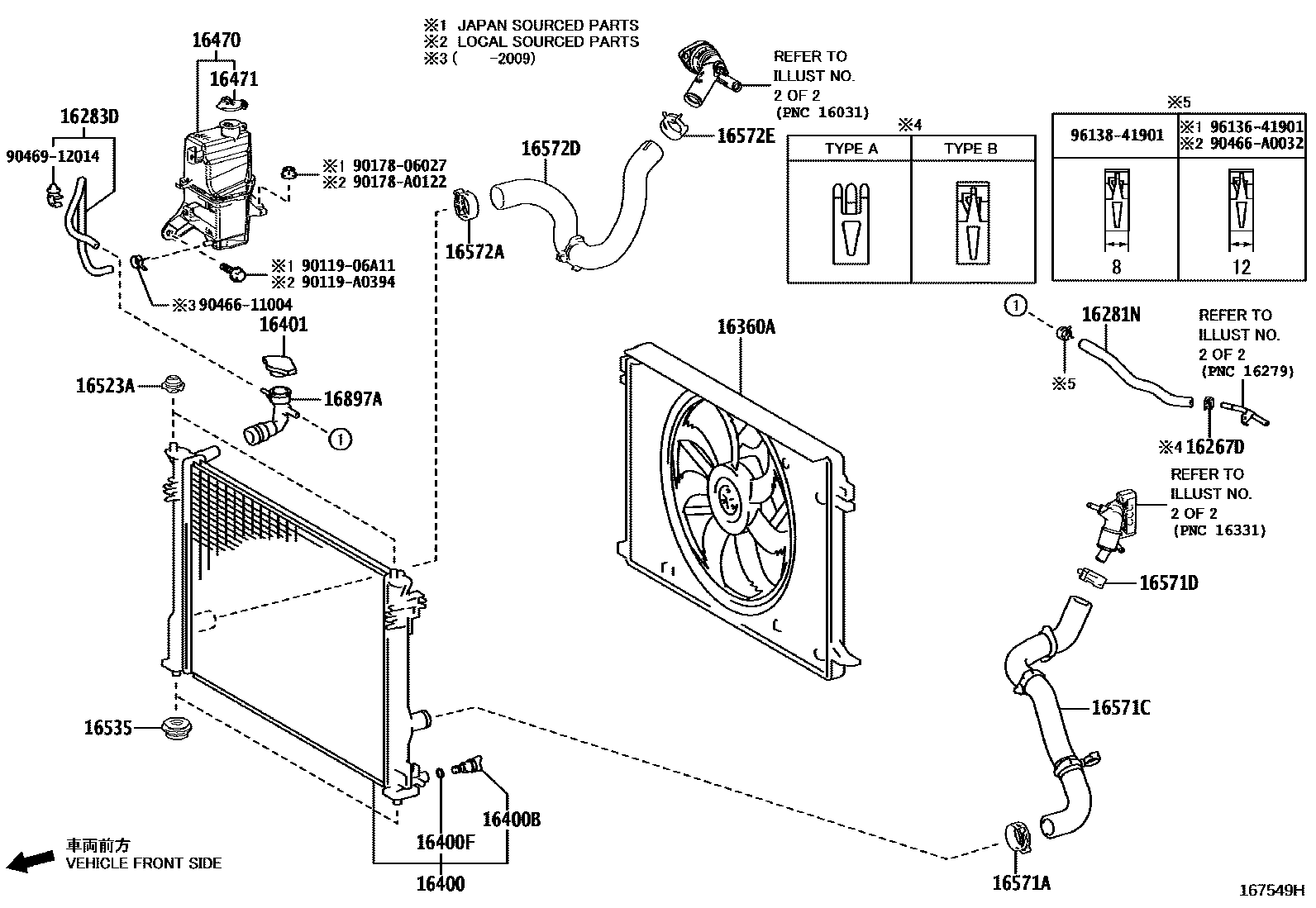

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE 0003 1ENGINE SIDE 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16267HOSE, WATER BY-PASS, NO.3

main16267-0P050i2GRFKS..GSU7#202003-202210

main16267-25020iA25AFXS..AXUH7#..LHD202210-202311

*636,*489

main16267-25030iT24AFTS..TXUA7#202311

16267DCLIP(FOR WATER BY-PASS HOSE NO.4)

main90467-15022iA25AFXS..AXUH78..RHD202210-202312

TYPE A:REFER ILLUST.

main96138-41701iA25AFXS..AXUH78;A25AFXS..AXUH70..LE,XLE202311

main96138-51701iA25AFXS..AXUH7#..LHD202210-202311

TYPE B:REFER ILLUST.

16281HOSE, WATER BY-PASS, NO.4

main16281-0P080i2GRFKS..GSU7#202003-202210

main16281-25021iA25AFXS..AXUH7#202002-202110

*636,*489

main16281-25060iT24AFTS..TXUA7#..ARL202210-202312

main99555-10200iA25AFXS..AXUH7#202110-202210

*489,*636

16281NHOSE, WATER BY-PASS, NO.4

main16281-0P150i2GRFKS..GSU7#202003-202210

main16281-F0080iA25AFXS..AXUH7#..LHD202210-202311

main16281-F0100iT24AFTS..TXUA7#202311

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25AFXS..AXUH7#202002-202210

*636,*489

16283DHOSE, WATER BY-PASS, NO.6

main16283-0P050iA25AFXS..AXUH7#202002-202210

16360AFAN ASSY, W/MOTOR

main16360-F0100iA25AFXS..AXUH7#202002-202210

main16360-F0110iT24AFTS..TXUA7#202311

16400RADIATOR ASSY

main16400-0P560i2GRFKS..GSU75..RUS202003-202210

main16400-F0080iA25AFXS..AXUH7#..LHD202210-202311

main16400-F0090iT24AFTS..TXUA75..RUS202210-202311

main16400-F0190iT24AFTS..TXUA7#..ARL202401

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180iA25AFXS..AXUH7#..LHD; T24AFTS..TXUA75..RUS202210-202311

main16417-OC180iT24AFTS..TXUA7#..ARL202210-202312

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFKS..GSU7#202003-202210

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFXS..AXUH78;A25AFXS..AXUH70..LE,XLE; T24AFTS..TXUA7#202311

16470TANK ASSY, RADIATOR RESERVE

main16470-0P130i2GRFKS..GSU7#202003-202210

16471CAP SUB-ASSY, RESERVE TANK

main16405-F0030i2GRFKS..GSU7#202003-202210

16523ACUSHION, RADIATOR SUPPORT

main16523-F0020×2iA25AFXS..AXUH7#..LHD; T24AFTS..TXUA75..RUS202210-202311

16535SUPPORT, RADIATOR, LOWER

main16535-0H030×2iA25AFXS..AXUH70..LIMD202311-202410

main16535-0V010×2iT24AFTS..TXUA7#202311

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25AFXS..AXUH7#202002-202210

(J)

main90466-A0038iA25AFXS..AXUH7#202002-202210

(L)

16571CHOSE, RADIATOR, NO.1

main16571-0P370i2GRFKS..GSU7#202003-202210

main16571-F0200iA25AFXS..AXUH7#..LHD202210-202311

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25AFXS..AXUH7#202002-202210

(J)

main90466-A0037iA25AFXS..AXUH7#202002-202210

(L)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25AFXS..AXUH7#202002-202210

(J)

main90466-A0038iA25AFXS..AXUH78..RHD202210-202312

(L)

16572DHOSE, RADIATOR, NO.2

main16572-0P340i2GRFKS..GSU7#202003-202210

main16572-F0150iA25AFXS..AXUH70..LIMD202311-202410

main16572-F0270iT24AFTS..TXUA75..RUS202210-202311

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i2GRFKS..GSU7#202003-202210

NO.1,(J)

main90466-43002iA25AFXS..AXUH70..LIMD202311-202410

(J)

main90466-A0037iA25AFXS..AXUH7#..LHD202210-202311

(L)

main90466-A0038×2iT24AFTS..TXUA7#202311

16897ANECK, FILLER

main16897-0P010i2GRFKS..GSU7#202003-202210

main16897-F0080iA25AFXS..AXUH78..RHD; T24AFTS..TXUA7#..ARL202210-202312

9011906A11

main90119-06A11

90119A0394

main90119-A0394

9017806027

main90178-06027

90178A0122

main90178-A0122

9046611004

main90466-11004

90466A0032

main90466-A0032

9046912014

main90469-12014

9613641901

main96136-41901

9613841901

main96138-41901

31 parts on this diagram · 10 diagrams in section
