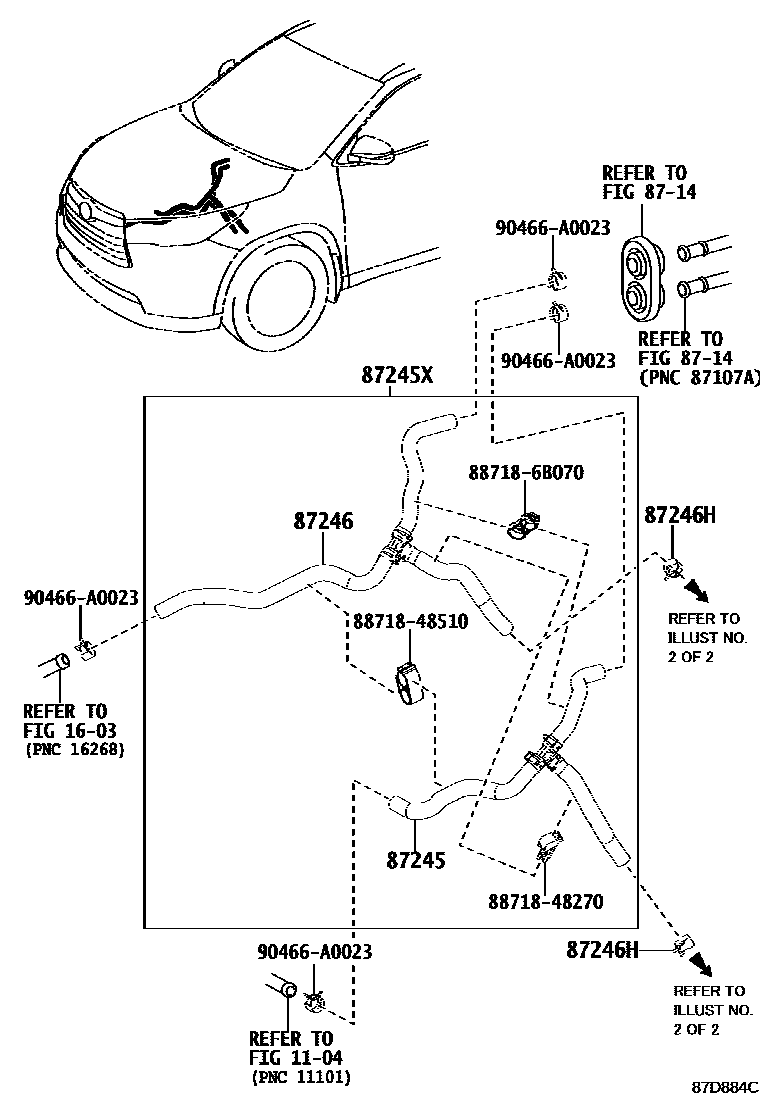

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1 0003 1FRONT 0004 1 0005 1REAR 0006 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0E160iGSU5#201312-201611

main87209-0E180iASU50201312-201611

main87209-0E520iASU50201611

87245XHOSE, HEATER WATER

main87209-0E130iGSU5#201312-201611

main87209-0E140iASU50201312-201611

87246HOSE, HEATER WATER, OUTLET

main87209-0E170iGSU5#201312-201611

main87209-0E190iASU50201312-201611

main87209-0E460iASU50201611

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main90466-A0022iASU50,GSU5#201312-201611

8871848270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48270

8871848510PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48510

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

90466A0023

main90466-A0023

11 parts on this diagram · 6 diagrams in section
