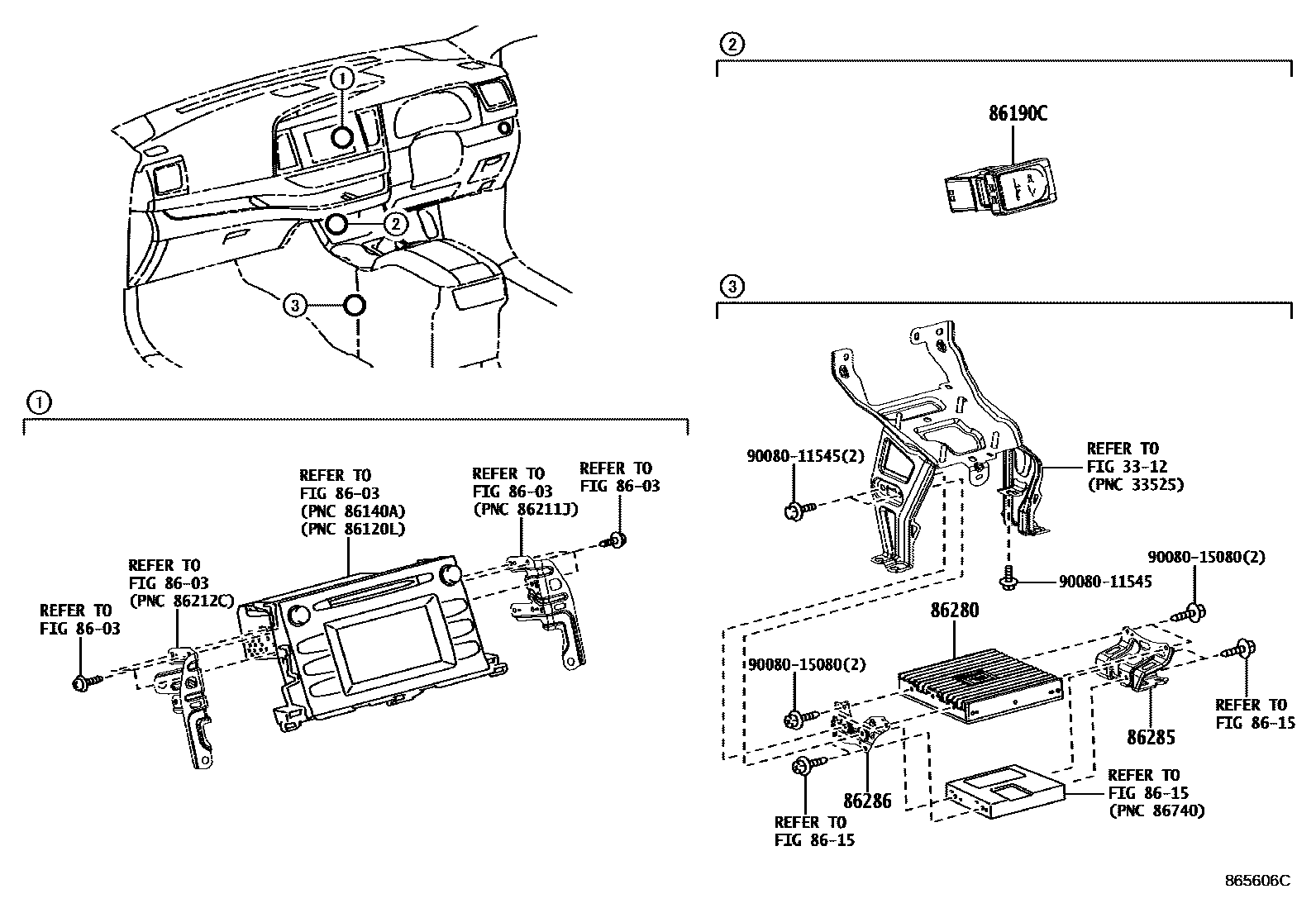

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSEAR 0004 1I-POD/VTR CABLE 0005 1VTR CABLE

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0E070iASU50,GSU5#201312-201511

main86190-0R010iASU50,GSU5#201511-201611

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0E120

main86280-0E121

86285BRACKET, AMPLIFIER, NO.1

main86285-0E051iASU50,GSU55..RUS201312-201611

main86285-0E080iASU50,GSU55..RUS201611-201911

UKRAINE

86286BRACKET, AMPLIFIER, NO.2

main86286-0E051iASU50,GSU55..RUS201312-201611

main86286-0E051iASU50,GSU55..RUS201611-201911

UKRAINE

9008011545

main90080-11545

9008015080

main90080-15080

8 parts on this diagram · 5 diagrams in section
