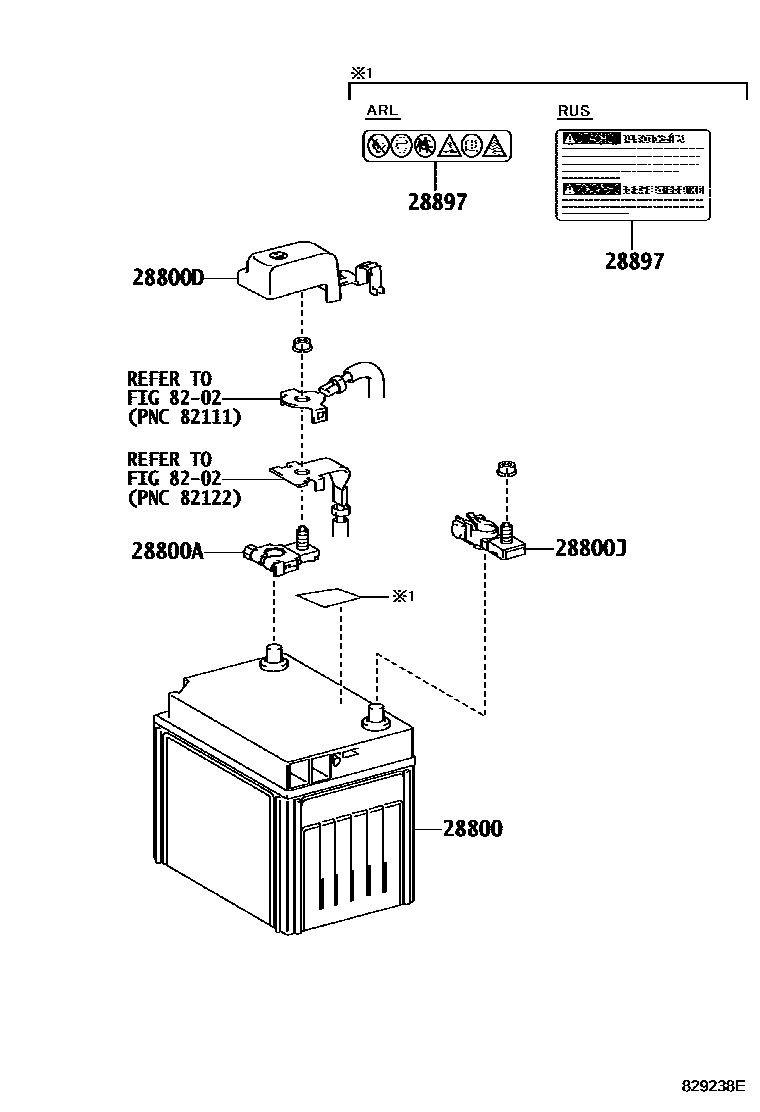

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i1ARFE..ASU50201312-201603

80D26L

main28800-03044i1ARFE..ASU50201312-201603

80D26L,JOHNSON CONTROLS

main28800-03045i2GRFE..GSU5#201604-201611

80D26L,JOHNSON CONTROLS

main28800-03045i1ARFE..ASU50201604-201807

80D26L

main28800-03046i1ARFE,2GRFKS..ASU50,GSU5#201808-201908

80D26L

main28800-03047i1ARFE,2GRFKS..ASU50,GSU5#201909

80D26L

main28800-AA041i2GRFE..GSU5#201312-201611

80D26L,EXIDE

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main90982-05062i2GRFKS..GSU5#201611

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0E010i1ARFE..ASU50201312-201611

main82821-52060i2GRFKS..GSU5#201611

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1ARFE,2GRFE..ASU50,GSU5#201312-201611

28897PLATE, BATTERY CAUTION

main28897-0P010i2GRFE..GSU5#..ARL201312-201611

main28897-0P020i1ARFE,2GRFKS..ASU50,GSU55..RUS201312-201611

8202WIRING & CLAMP

→ Go to FIG 82-02

6 parts on this diagram · 1 diagram in section
