EPC Data

REAR SEAT & SEAT TRACK

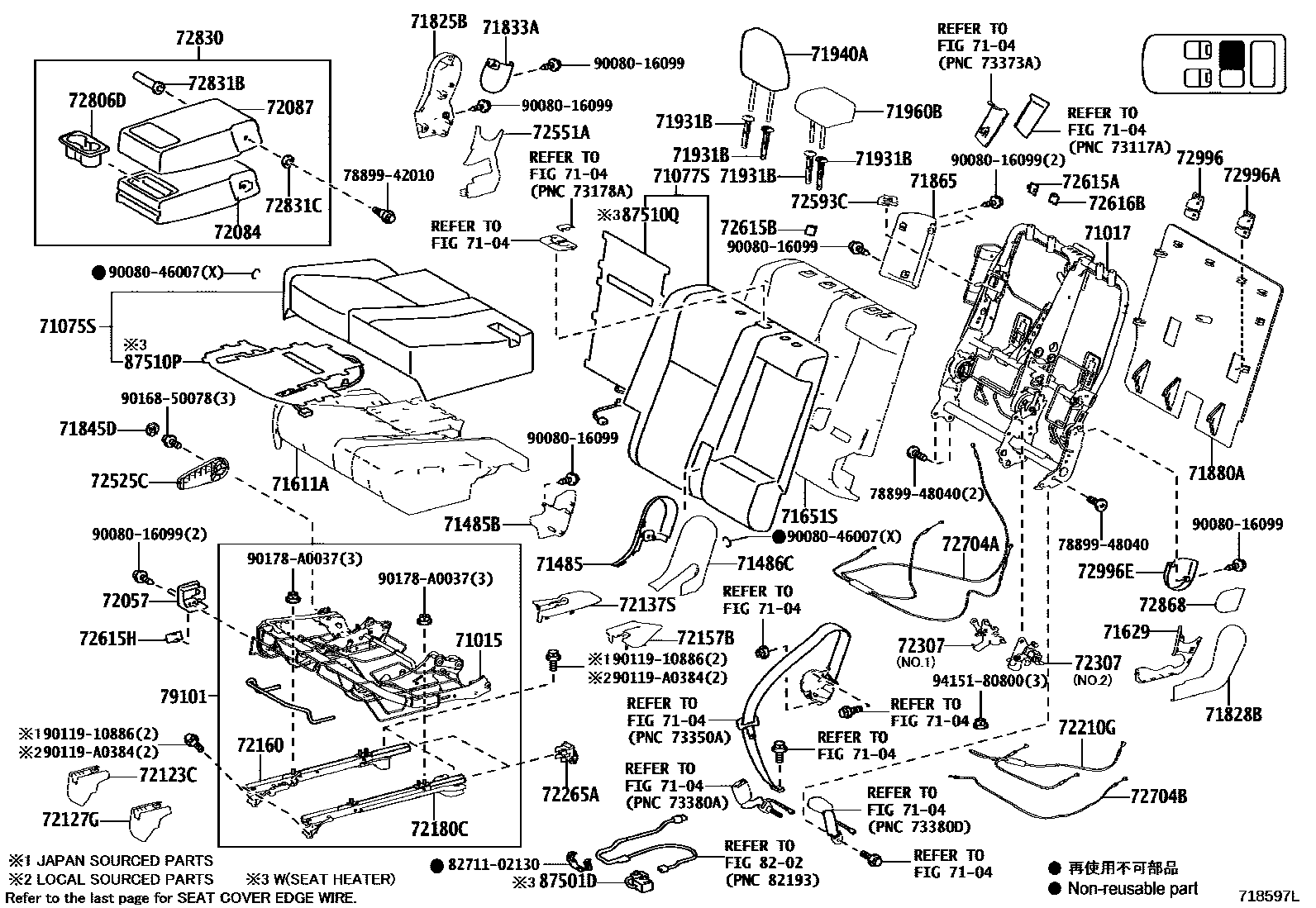

Parts diagram
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71015-0E090supersedes 71015-0E040i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main71015-0E180supersedes 71015-0E040i201611
LEATHER PACKAGE
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-0E090i201312-201611
main71017-0E170i201611
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-0E090-C4i201312-201604
BLACK,TRIM2#
main71075-0E091-C4i201604-201611
BLACK,TRIM2#
main71075-0E091-C5i201611
BLACK,TRIM2#
main71075-0E210-A4i201312-201604
FLAXEN,TRIM0#
main71075-0E210-C3i201312-201604
BLACK,TRIM2#
main71075-0E211-A4i201604-201611
FLAXEN,TRIM0#
main71075-0E211-A5i201611-201809
FLAXEN,TRIM0#
main71075-0E211-C3i201604-201611
BLACK,TRIM2#
main71075-0E211-C4i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main71075-0E211-E1i201611-201809
BROWN,TRIM4#
main71075-0E214-A6i201809
FLAXEN,TRIM0#
main71075-0E214-C5i201809
LEATHER PACKAGE,BLACK,TRIM2#
main71075-0E214-E2i201809
BROWN,TRIM4#
main71075-0E220-A4i201312-201604
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main71075-0E220-C3i201312-201604
BLACK,TRIM2#
main71075-0E221-A4i201604-201611
FLAXEN,TRIM0#
sub71075-0E225
main71075-0E221-A5i201611-201809
FLAXEN,TRIM0#
sub71075-0E225
main71075-0E221-C3i201604-201611
BLACK,TRIM2#
sub71075-0E225
main71075-0E221-C4i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
sub71075-0E225
main71075-0E221-E1i201611-201809
BROWN,TRIM4#
sub71075-0E225
main71075-0E224-A6i201809-201910
FLAXEN,TRIM0#
sub71075-0E226
main71075-0E224-C5i201809-201910
LEATHER PACKAGE,BLACK,TRIM2#
sub71075-0E226
main71075-0E224-E2i201809-201910
BROWN,TRIM4#
sub71075-0E226
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0E100-C2i201312-201604
BLACK,TRIM2#
main71077-0E101-C2i201604-201611
BLACK,TRIM2#
main71077-0E102-C2i201611
BLACK,TRIM2#
main71077-0E130-A2i201312-201604
FLAXEN,TRIM0#
main71077-0E130-C1i201312-201604
BLACK,TRIM2#
main71077-0E131-A2i201604-201611
FLAXEN,TRIM0#
main71077-0E131-C1i201604-201611
BLACK,TRIM2#
main71077-0E132-A2i201611-201809
FLAXEN,TRIM0#
main71077-0E132-C1i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main71077-0E132-E0i201611-201809
BROWN,TRIM4#
main71077-0E135-A3i201809
FLAXEN,TRIM0#
main71077-0E135-C2i201809
LEATHER PACKAGE,BLACK,TRIM2#
main71077-0E135-E1i201809
BROWN,TRIM4#
main71077-0E210-A2i201312-201604
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main71077-0E210-C1i201312-201604
BLACK,TRIM2#
main71077-0E211-A2i201604-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main71077-0E211-C1i201604-201611
BLACK,TRIM2#
main71077-0E212-A2i201611-201809
FLAXEN,TRIM0#
main71077-0E212-C1i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main71077-0E212-E0i201611-201809
BROWN,TRIM4#
main71077-0E215-A3i201809
FLAXEN,TRIM0#
main71077-0E215-C2i201809
LEATHER PACKAGE,BLACK,TRIM2#
main71077-0E215-E1i201809
BROWN,TRIM4#
71485COVER, REAR SEAT HINGE
main71485-0E030-A0i201312-201611
FLAXEN,TRIM0#
main71485-0E030-C0i201312-201611
BLACK,TRIM2#
main71485-0E120-A0i201611
FLAXEN,TRIM0#
main71485-0E120-C0i201611
BLACK,TRIM2#
71485BCOVER, REAR SEAT HINGE
main71485-0E040-A0i201312-201611
FLAXEN,TRIM0#
main71485-0E040-C0i201611
BLACK,TRIM2#
71486CCOVER, REAR SEAT HINGE, LH
main71486-0E030-A0i201611
FLAXEN,TRIM0#
main71486-0E030-C0i201611
BLACK,TRIM2#
71611APAD, REAR SEAT CUSHION, RH
main71611-0E060i201611
71629COVER, REAR SEAT CUSHION HINGE
main71629-0E010-A0i201611
FLAXEN,TRIM0#
main71629-0E010-C0i201611
BLACK,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0E070i201312-201611
71825BMOULDING, REAR SEAT CUSHION, RH
main71825-0E060-A0i201611
FLAXEN,TRIM0#
main71825-0E060-C0i201611
BLACK,TRIM2#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
main71828-0E070-A0i201312-201611
FLAXEN,TRIM0#
main71828-0E070-C0i201611
BLACK,TRIM2#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-0E030-C0i201312-201611
BLACK,TRIM2#
71845DCAP, REAR SEAT COVER, RH
main71845-0E080-A0i201312-201611
FLAXEN,TRIM0#
main71845-0E080-C0i201312-201611
BLACK,TRIM2#
71865BEZEL, REAR SEAT COVER, NO.1
main71865-0E050-A0i201312-201611
FLAXEN,TRIM0#
main71865-0E050-C0i201611
BLACK,TRIM2#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-0E030-A0i201611
FLAXEN,TRIM0#
main71880-0E030-C0i201611
BLACK,TRIM2#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71930-47020-A7×3i201312-201611
W(LOCK),FLAXEN,TRIM0#
main71930-47020-C0×3i201611-201710
W(LOCK),BLACK,TRIM2#
main71930-47020-C4×3i201710
W(LOCK),BLACK,TRIM2#
main71931-47020-A7×3i201312-201611
W/O(LOCK),LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main71931-47020-C0×3i201611-201710
W/O(LOCK),BLACK,TRIM2#,4#
main71931-47020-C4×3i201710
W/O(LOCK),BLACK,TRIM2#,4#
71940AHEADREST ASSY, REAR SEAT
main71940-0E300-A4×2i201312-201604
FLAXEN,TRIM0#
main71940-0E300-C2×2i201312-201604
BLACK,TRIM2#
main71940-0E301-A4×2i201604-201611
FLAXEN,TRIM0#
main71940-0E301-A5×2i201611
FLAXEN,TRIM0#
main71940-0E301-C2×2supersedes 71940-0E290-C0i201604-201611
BLACK,TRIM2#
main71940-0E301-C4×2supersedes 71940-0E290-C0i201611
LEATHER PACKAGE,BLACK,TRIM2#
main71940-0E301-E0×2i201611
BROWN,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0E180-A5i201312-201604
FLAXEN,TRIM0#
main71960-0E180-C3i201312-201604
BLACK,TRIM2#
main71960-0E181-A5i201604-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main71960-0E181-A7i201611-201809
FLAXEN,TRIM0#
main71960-0E181-C3supersedes 71960-0E170-C2i201604-201611
BLACK,TRIM2#
main71960-0E181-C5i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main71960-0E181-E1i201611-201809
BROWN,TRIM4#
main71960-0E182-A8i201809
FLAXEN,TRIM0#
main71960-0E182-C6supersedes 71960-0E170-C2i201809
LEATHER PACKAGE,BLACK,TRIM2#
main71960-0E182-E2i201809
BROWN,TRIM4#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-0E040-A0i201611
FLAXEN,TRIM0#
main72057-0E040-C0i201611
BLACK,TRIM2#
72084PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2
main72084-0E020i201312-201611
72087COVER, REAR SEAT CENTER ARMREST, NO.1
main72087-0E060-C2i201611-201808
BLACK,TRIM2#
main72087-0E073-A3i201809
FLAXEN,TRIM0#
main72087-0E073-C3supersedes 72087-0E061-C0i201809
LEATHER PACKAGE,BLACK,TRIM2#
main72087-0E073-E0i201809
BROWN,TRIM4#
main72087-0E080-A0i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
main72087-0E080-A1i201611-201809
FLAXEN,TRIM0#
main72087-0E080-C0supersedes 72087-0E060-C0i201312-201611
BLACK,TRIM2#
main72087-0E080-C1i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main72087-0E080-E1i201611-201809
BROWN,TRIM4#
72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-0E100-C0i201312-201611
BLACK,TRIM2#
72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-0E100-C0i201312-201611
BLACK,TRIM2#
72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-0E170-C0i201312-201611
BLACK,TRIM2#
72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH
main72157-0E070-C0i201312-201611
BLACK,TRIM2#
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-0E060i201312-201508
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main72160-0E061supersedes 72160-0E031i201508-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main72160-0E110supersedes 72160-0E031i201611
LEATHER PACKAGE
72180CTRACK ASSY, REAR SEAT, INNER RH
main72180-0E030i201312-201508
main72180-0E031i201508-201611
72210GCABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH
main72210-0E030i201312-201611
72265ACOVER, SEAT TRACK UPPER RAIL, RH
main72265-0E020×2i201312-201611
72307LINK SUB-ASSY, RECLINING CONTROL, RH
main72307-0E060i201611
NO.1
main72307-0E070i201312-201611
NO.2
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
main72525-0E030-A0i201312-201611
FLAXEN,TRIM0#
main72525-0E030-C0i201611
BLACK,TRIM2#
72551ACOVER, RECLINING HINGE
main72551-0E040-A0i201312-201611
FLAXEN,TRIM0#
main72551-0E040-C0i201312-201611
BLACK,TRIM2#
72593CKNOB, RECLINING REMOTE CONTROL LEVER, NO.2
main72593-0E060-A0i201312-201611
FLAXEN,TRIM0#
main72593-0E060-C0i201312-201611
BLACK,TRIM2#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-0E060-A0i201312-201611
FLAXEN,TRIM0#
main72615-0E060-C0i201611
BLACK,TRIM2#
72615BCOVER, REAR SEAT LOCK STRIKER, RH
main72615-0E060-A0i201312-201611
FLAXEN,TRIM0#
main72615-0E060-C0i201611
BLACK,TRIM2#
72615HCOVER, REAR SEATBACK LOCK STRIKER, NO.1
main72615-0E120-A0×2i201312-201611
FLAXEN,TRIM0#
main72615-0E120-C0×2i201312-201611
BLACK,TRIM2#
72616BCOVER, REAR SEAT LOCK STRIKER
main72615-0E060-A0i201312-201611
FLAXEN,TRIM0#
main72615-0E060-C0i201611
BLACK,TRIM2#
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-0E130i201312-201611
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
main72704-0E140i201312-201611
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-0E010-A0i201312-201611
FLAXEN,TRIM0#
main72806-0E010-C0i201611
BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-0E210-C3i201611-201808
BLACK,TRIM2#
main72830-0E223-A4i201809
FLAXEN,TRIM0#
main72830-0E223-C4supersedes 72830-0E211-C2i201809
LEATHER PACKAGE,BLACK,TRIM2#
main72830-0E223-E0i201809
BROWN,TRIM4#
main72830-0E230-A1i201312-201611
FLAXEN,TRIM0#
main72830-0E230-A2i201611-201809
FLAXEN,TRIM0#
main72830-0E230-C1supersedes 72830-0E210-C2i201312-201611
BLACK,TRIM2#
main72830-0E230-C2i201611-201809
LEATHER PACKAGE,BLACK,TRIM2#
main72830-0E230-E1i201611-201809
BROWN,TRIM4#
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
main72831-0R010i201611
72831CPLATE, REAR SEAT CENTER ARMREST, NO.2
main72831-0R020i201312-201611
72868COVER, CENTER ARMREST HINGE, RH
main72868-0E020-A0i201312-201611
FLAXEN,TRIM0#
main72868-0E020-C0i201611
BLACK,TRIM2#
72996COVER, REAR SEATBACK, RH
main72996-0E070-A1i201312-201611
FLAXEN,TRIM0#
main72996-0E070-C0i201312-201611
BLACK,TRIM2#
main72996-0E071-A1i201611
FLAXEN,TRIM0#
main72996-0E071-C0i201611
BLACK,TRIM2#
72996ACOVER, REAR SEATBACK
main72996-0E110-A0i201312-201611
FLAXEN,TRIM0#
main72996-0E110-C0i201312-201611
BLACK,TRIM2#
main72996-0E111-A0i201611
FLAXEN,TRIM0#
main72996-0E111-C0i201611
BLACK,TRIM2#
72996ECOVER, REAR SEAT SHIELD INNER, NO.1
main72996-0E100i201312-201611
79101FRAME SUB-ASSY, NO.1 SEAT CUSHION
main79101-0E070i201312-201508
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main79101-0E071supersedes 79101-0E031i201508-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main79101-0E200supersedes 79101-0E031i201611
LEATHER PACKAGE
8202
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-60040×2i201611
LEATHER PACKAGE
main87501-60050×2i201312-201407
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
87510PHEATER ASSY, SEAT
main87510-0E050i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
sub87510-0E051
87510QHEATER ASSY, SEAT
main87530-0E040i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
7889942010BOLT, FRONT SEAT
main78899-42010
7889948040BOLT, FRONT SEAT
main78899-48040
8271102130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-02130
9008016099
main90080-16099
9008046007
main90080-46007
9011910886
main90119-10886
90119A0384
main90119-A0384
9016850078
main90168-50078
90178A0037
main90178-A0037
9415180800
main94151-80800

64 parts on this diagram · 6 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
