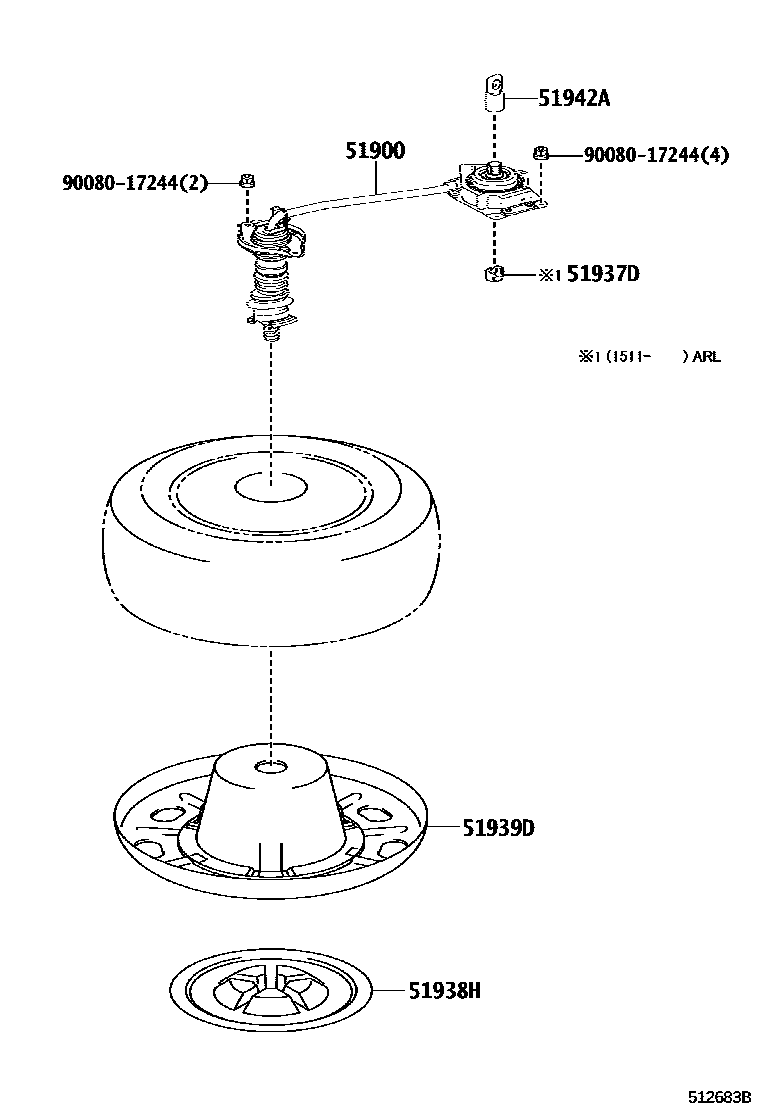

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-0E040iASU50,GSU5#201312-201603

main51900-0E041iASU50,GSU5#201604-201610

main51900-0E042iASU50,GSU5#201704

51937DCOVER, SPARE WHEEL CARRIER HINGE, UPPER

main51937-0E010iGSU5#..ARL201511-201611

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

main51938-0E030iASU50,GSU5#201312-201611

51939DCOVER, SPARE WHEEL CARRIER LOCK

main51939-0E031iASU50,GSU5#201312-201611

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010iASU50,GSU5#201312-201611

9008017244

main90080-17244

6 parts on this diagram · 1 diagram in section
