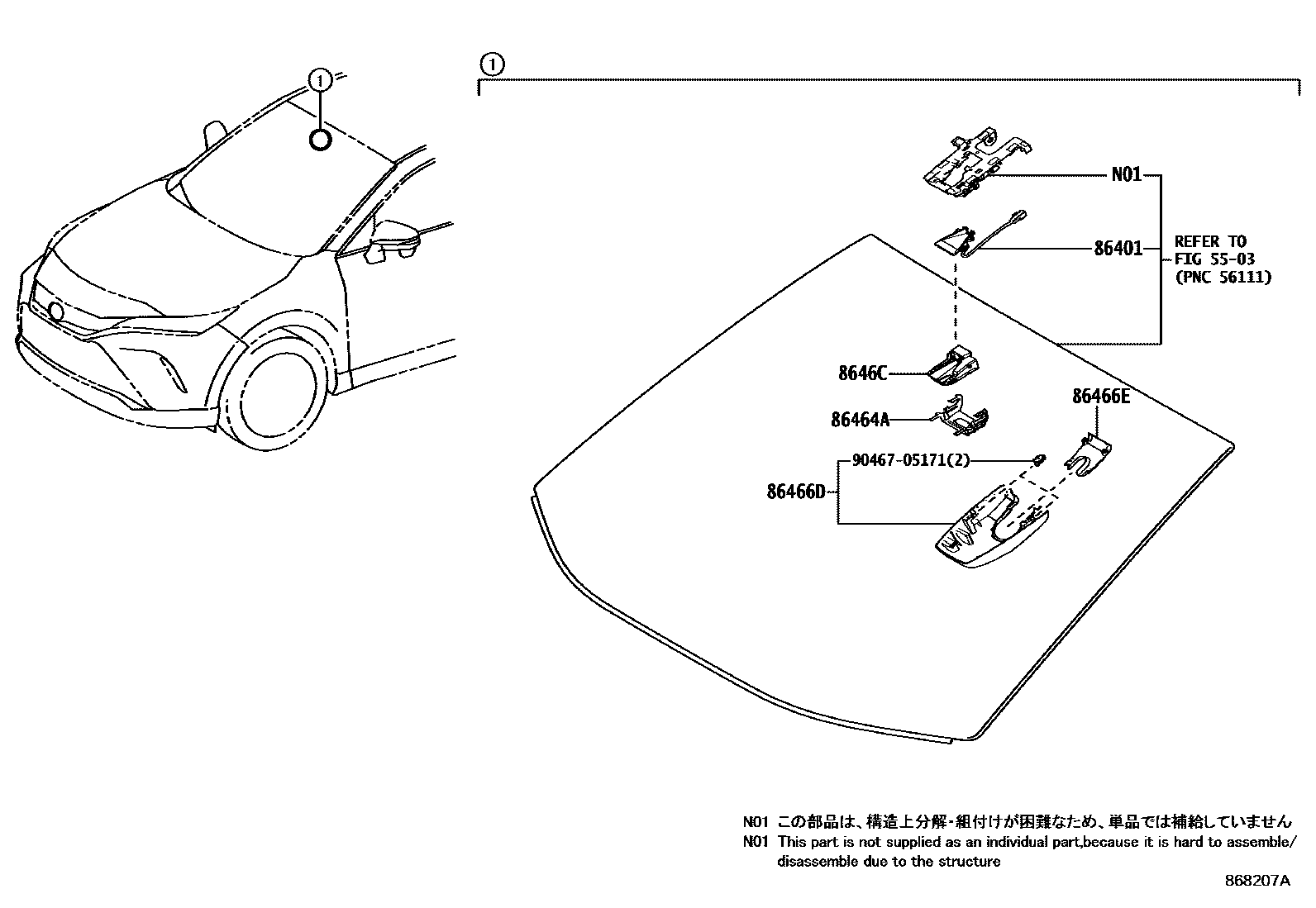

PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-42041iAXUH80,MXUA80202009-202210

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXUH80,MXUA80202009-202210

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060iAXUH80,MXUA80202009-202210

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070iMXUA80..G202210-202309

main86466-42130supersedes 86466-42070iAXUH80,MXUA80..S202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-48060iAXUH80,MXUA80202009-202112

*614

main8646C-48061iAXUH80,MXUA80202112-202210

*614

main8646C-48130iAXUH80;MXUA80..S202210

*614

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
