ANTENNA

86077COVER KIT, ANTENNA

main86077-47010-A1iAXUH80,MXUA80202009-202210

WHITE PEARL CS.,070

main86077-47010-A3iMXUA80..G202210-202309

PLATINUM WHITE PEARL MC.,089

main86077-47010-C1iAXUH80;MXUA80..S202009-202309

BLACK,202

main86077-47010-C5iAXUH80;MXUA80..S202009-202309

PRECIOUS BLACK,219

main86077-47010-D1iMXUA80..G202009-202309

RED MC.,3T3

main86077-47010-E0iAXUH80;MXUA80..S202009-202309

STEEL BLONDE,4X1

main86077-47010-J5iAXUH80,MXUA80202009-202309

DK. BLUE MC.,8X8

main86077-47010-P1iMXUA80..G202210-202309

SLATE GRAY ME.,1K9

main86077-47010-P1iAXUH80,MXUA80202009-202210

SLATE GRAY ME.,1K4 ,1K9

86101CORD SUB-ASSY, ANTENNA

main86101-4D380iAXUH80,MXUA80202009-202210

main86101-4DL20iMXUA80..G202210-202309

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-4D250iAXUH80,MXUA80202009-202210

main86101-4DL00iMXUA80..G202210-202309

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-48Z60iMXUA80..G202210-202309

main86101-4D150iAXUH80,MXUA80202009-202210

86300JANTENNA ASSY, ROOF

main86300-42250iMXUA80..G202210-202309

main86300-47220iAXUH80,MXUA80202009-202210

86769HOUSING, ROOF ANTENNA

main86769-12010iAXUH80,MXUA80202009-202210

main86769-K0010iAXUH80;MXUA80..S202210-202309

8271548R60BRACKET,WIRING HARNESS CLAMP

main82715-48R60

8271548R80BRACKET,WIRING HARNESS CLAMP

main82715-48R80

9011906A06

main90119-06A06

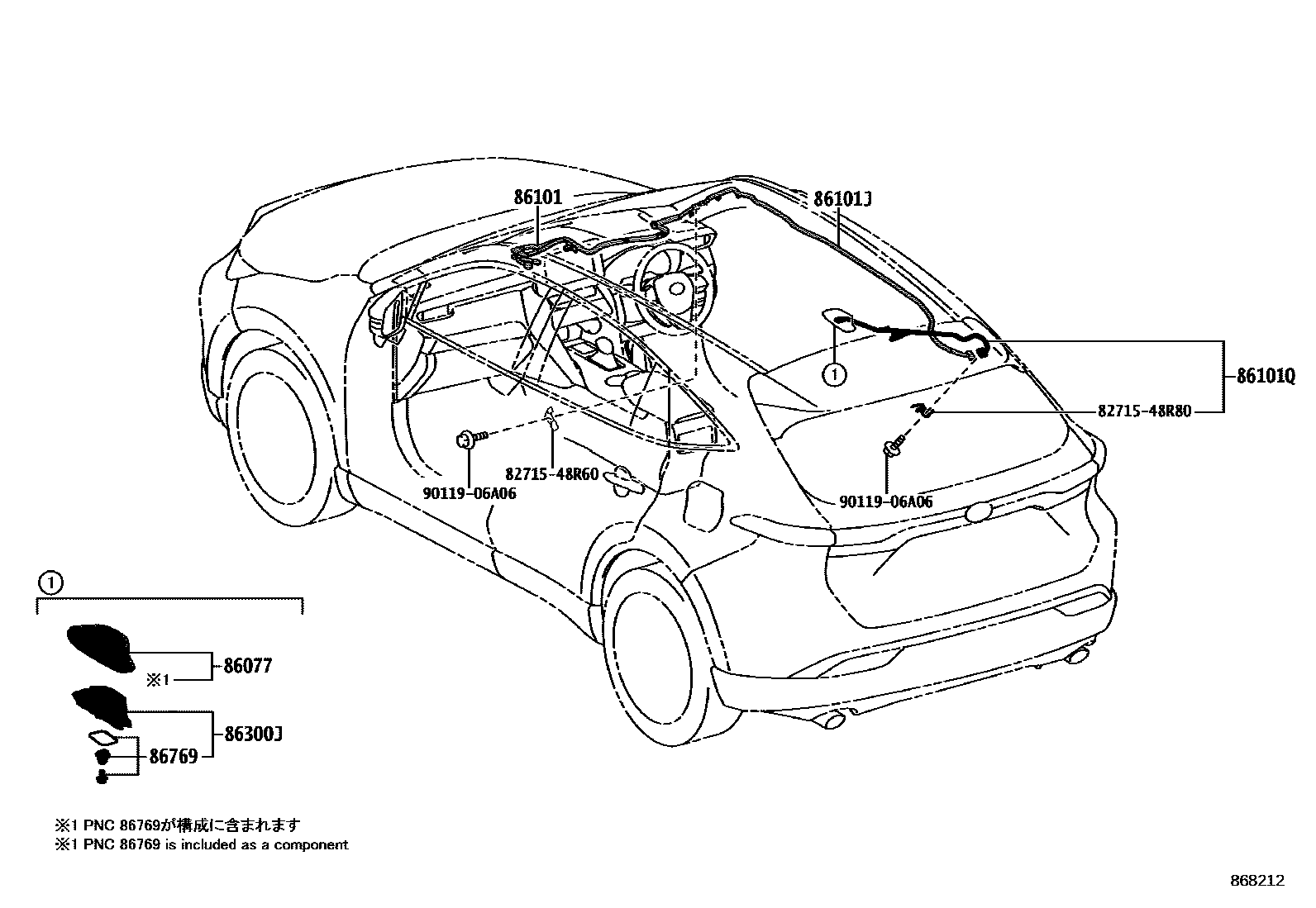

9 parts on this diagram · 1 diagram in section
