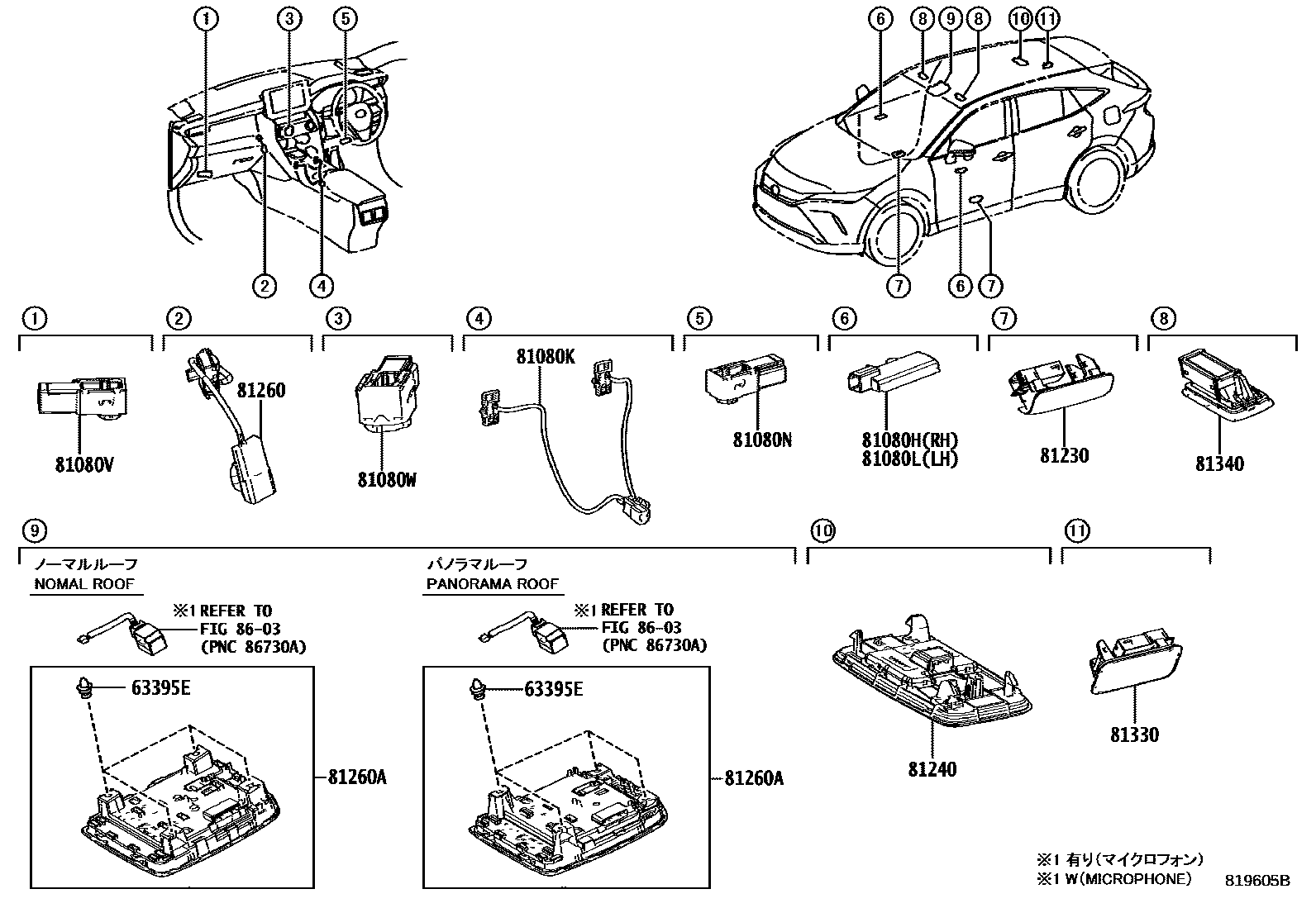

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09245×4iMXUA80..G202210-202309

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-35010iAXUH80,MXUA80202009-202210

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81081-48030iAXUH80,MXUA80202009-202210

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-35020iAXUH80,MXUA80202009-202210

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iAXUH80,MXUA80202009-202210

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33280iAXUH80,MXUA80202009-202210

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-42040iAXUH80,MXUA80202009-202210

81230LAMP ASSY, COURTESY

main81230-11030×2iAXUH80;MXUA80..S202210

81240LAMP ASSY, ROOM, NO.1

main81240-48030-B0iAXUH80,MXUA80202009-202109

LT.GRAY,TRIM1#

main81240-48030-C1iAXUH80,MXUA80202009-202109

BLACK,TRIM2#,4#

main81240-48040-B0iAXUH80;MXUA80..S202210

LT.GRAY,TRIM1#

main81240-48040-C1iMXUA80..G202210-202309

BLACK,TRIM2#,4#

81260LAMP ASSY, GLOVE BOX

main81081-48050iAXUH80,MXUA80202009-202210

81260ALAMP ASSY, MAP

main81208-48420iAXUH80,MXUA80202009-202210

main81260-48M00iMXUA80..G202210-202309

main81208-48430supersedes 81260-48M40iAXUH80,MXUA80..S202009-202210

MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iMXUA80..G202210-202309

81340LAMP ASSY, VANITY

main81340-48020×2iMXUA80..G202210-202309

main81340-50260×2iAXUH80,MXUA80202009-202210

8603

14 parts on this diagram · 1 diagram in section
