SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-B0iAXUH80,MXUA80202009-202210

LT.GRAY,TRIM1#

main73023-12030-C0iMXUA80..G202210-202309

BLACK,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-B0iAXUH80,MXUA80202009-202210

LT.GRAY,TRIM1#

main73024-12020-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXUH80;MXUA80..S202210

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020×2iAXUH80,MXUA80202009-202210

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47281-C7iAXUH80,MXUA80202009-202207

BLACK,TRIM1#,2#,4#

main73210-47282-C7iAXUH80;MXUA80..S202210

BLACK/BLACK,TRIM1#,2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAXUH80;MXUA80..S202210

73219STOPPER, TONGUE PLATE

main73219-33010iMXUA80..G202210-202309

BLACK

main73219-33020iAXUH80;MXUA80..S202210

GRAY

main73219-33030iMXUA80..G202210-202309

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-C7iAXUH80,MXUA80202009-202207

BLACK,TRIM1#,2#,4#

main73220-47222-C7iAXUH80,MXUA80202208-202210

BLACK/BLACK,TRIM1#,2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48550-C0supersedes 73230-48600-C0iAXUH80;MXUA80..S202210

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48610-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

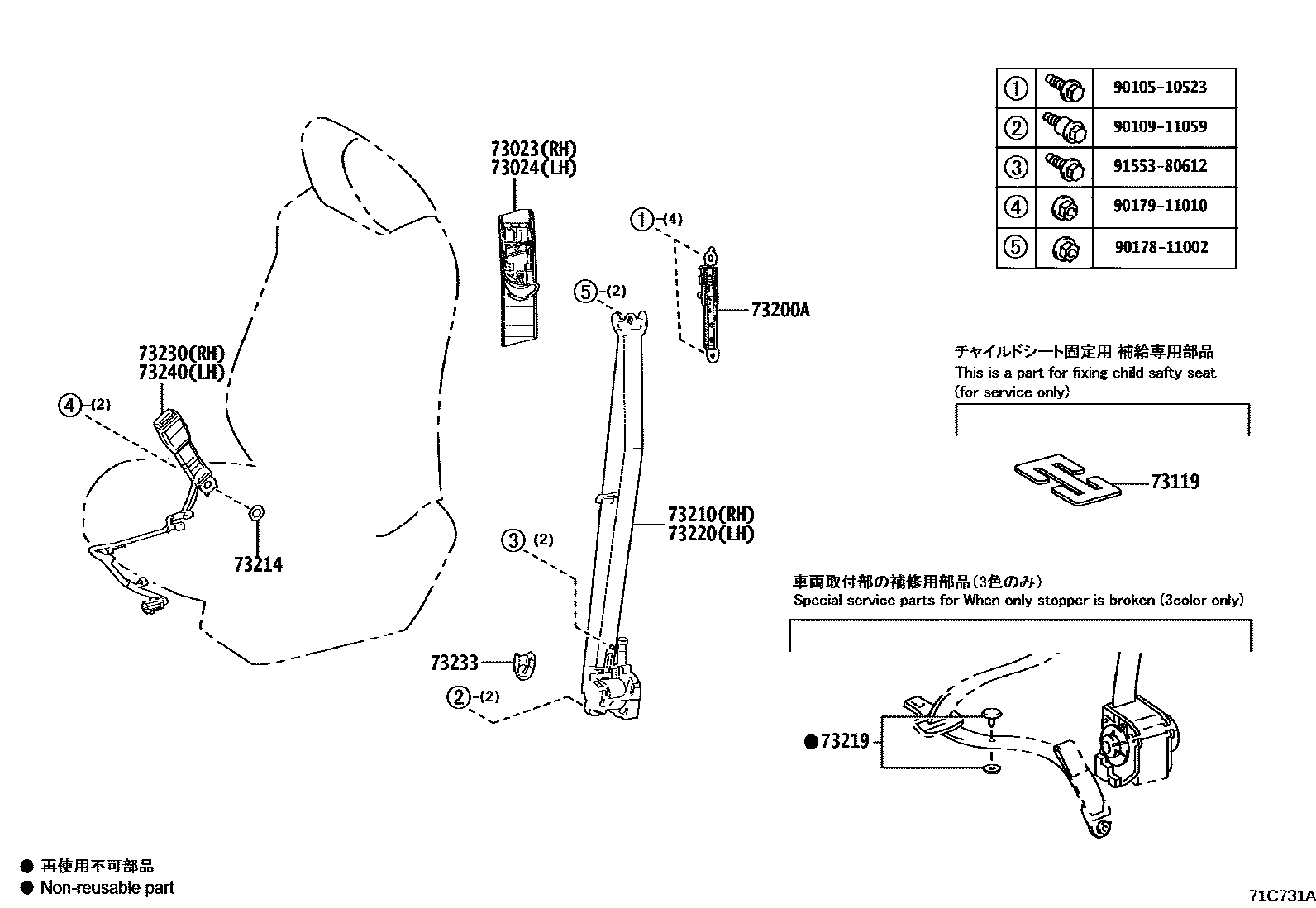

16 parts on this diagram · 2 diagrams in section
