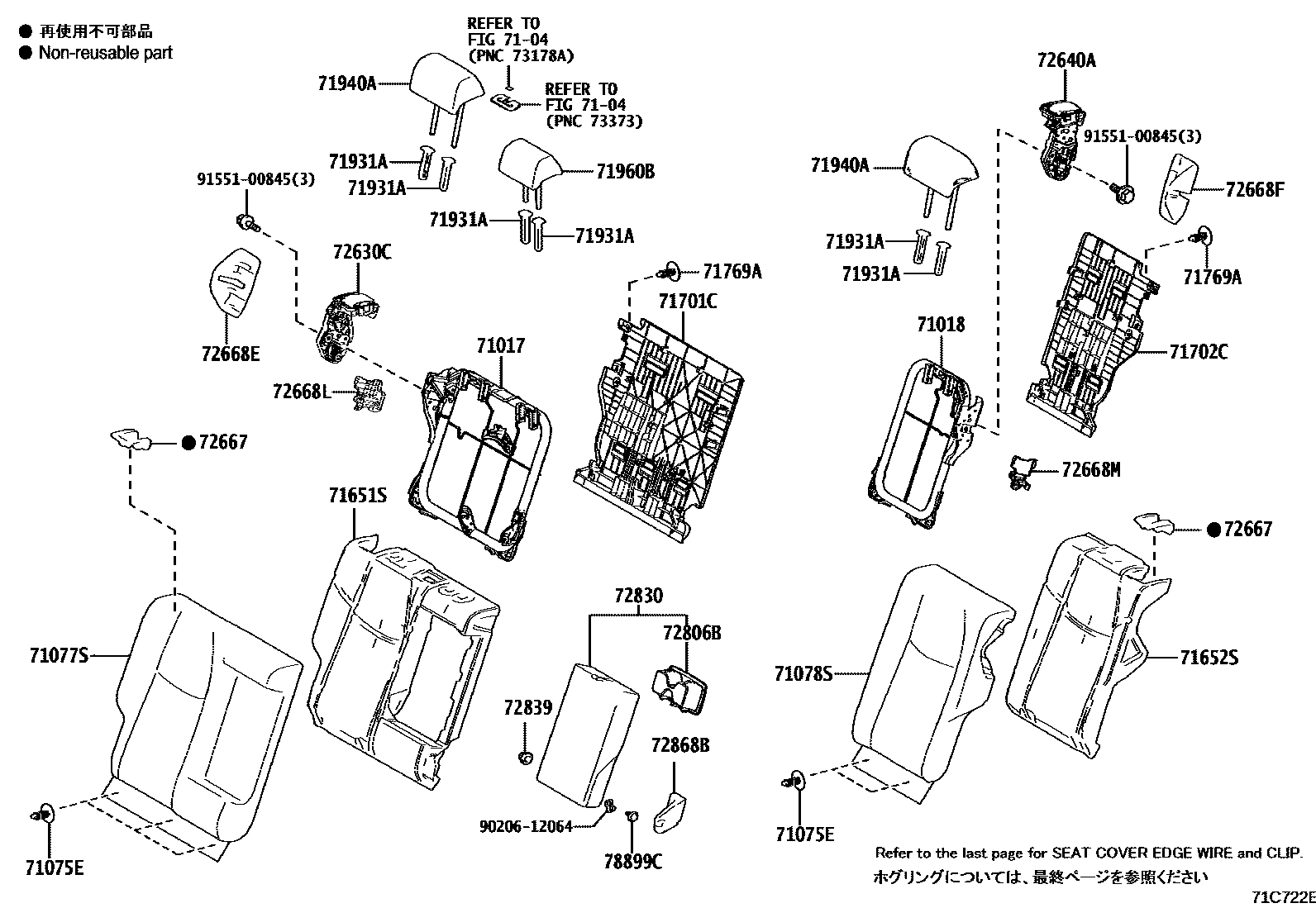

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT BACK 0003 1SEAT CUSHION 0004 1FITTING PARTS 0005 1CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48270iAXUH80,MXUA80202009-202210

main71017-48320iMXUA80..G202210-202309

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-48210iAXUH80,MXUA80202009-202210

7104

71075ECLIP(FOR REAR SEAT)

main90467-07080-C0×4iAXUH80;MXUA80..S202403

BLACK

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48K80-B3supersedes 71077-48K50-B2iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K80-C4supersedes 71077-48K50-C2iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#

main71077-48K80-C5supersedes 71077-48K50-C3iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#

main71077-48K81-22supersedes 71077-48K50-C4iMXUA80..G202210-202309

LEATHER PACKAGE,BLACK/GRAY,TRIM2#

main71077-48K81-23supersedes 71077-48K50-C9iAXUH80;MXUA80..S202210-202403

LEATHER PACKAGE,BLACK/CAMEL,TRIM4#

main71077-48K81-25supersedes 71077-48K50-C8iAXUH80;MXUA80..S202404

LEATHER PACKAGE,BLACK/GRAY,TRIM2#

main71077-48K81-26supersedes 71077-48K50-C9iAXUH80;MXUA80..S202404

LEATHER PACKAGE,BLACK/CAMEL,TRIM4#

main71077-48K81-B4supersedes 71077-48K50-B3iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K81-B6supersedes 71077-48K50-B4iAXUH80;MXUA80..S202210-202403

LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K81-B7supersedes 71077-48K50-B4iAXUH80;MXUA80..S202404

LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#

main71077-48K81-C6supersedes 71077-48K50-C4iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#

main71077-48K81-C7supersedes 71077-48K50-C5iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-48J90-20supersedes 71078-48J60-C4iMXUA80..G202210-202309

LEATHER PACKAGE,BLACK/GRAY,TRIM2#

main71078-48J90-21supersedes 71078-48J60-C9iAXUH80;MXUA80..S202210-202403

LEATHER PACKAGE,BLACK/CAMEL,TRIM4#

main71078-48J90-23supersedes 71078-48J60-C8iAXUH80;MXUA80..S202404

LEATHER PACKAGE,BLACK/GRAY,TRIM2#

main71078-48J90-24supersedes 71078-48J60-C9iAXUH80;MXUA80..S202404

LEATHER PACKAGE,BLACK/CAMEL,TRIM4#

main71078-48J90-B2supersedes 71078-48J60-B2iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J90-B3supersedes 71078-48J60-B3iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J90-B5supersedes 71078-48J60-B3iMXUA80..G202210-202309

LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J90-B6supersedes 71078-48J60-B4iAXUH80;MXUA80..S202404

LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#

main71078-48J90-C2supersedes 71078-48J60-C2iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#

main71078-48J90-C3supersedes 71078-48J60-C3iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#

main71078-48J90-C4supersedes 71078-48J60-C4iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#

main71078-48J90-C5supersedes 71078-48J60-C5iAXUH80,MXUA80202112-202210

"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48310iMXUA80..G202210-202309

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-48280iAXUH80,MXUA80202009-202210

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-48010iAXUH80,MXUA80202009-202210

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-48010iAXUH80,MXUA80202009-202210

71769ACLIP, REAR SEATBACK BOARD

main71769-28040×5iAXUH80;MXUA80..S202210

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5×3iAXUH80,MXUA80202009-202210

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-47030-C4×3iAXUH80;MXUA80..S202210

W/O(LOCK),BLACK,TRIM1#,2#,4#

71940AHEADREST ASSY, REAR SEAT

main71940-48C70-B1×2iAXUH80,MXUA80202009-202210

MEDIUM GRAY,TRIM1#

main71940-48C70-C0×2iAXUH80,MXUA80202009-202210

BLACK,TRIM2#,4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48750-B1iAXUH80;MXUA80..S202210

MEDIUM GRAY,TRIM1#

main71960-48750-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM2#,4#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-48070-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-48020-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-48060-C0×2iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

72668EBEZEL, REAR SEATBACK LOCK, LOWER RH

main72668-48030-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

72668FBEZEL, REAR SEATBACK LOCK, LOWER LH

main72668-48040-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

72668LBEZEL, REAR SEATBACK LOCK, LOWER RH NO.2

main72668-48050iAXUH80,MXUA80202009-202210

72668MBEZEL, REAR SEATBACK LOCK, LOWER LH NO.2

main72668-48060iAXUH80,MXUA80202009-202210

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-42020-C0iMXUA80..G202210-202309

BLACK,TRIM1#,2#,4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-48B90-B0iMXUA80..G202210-202309

MEDIUM GRAY,TRIM1#

main72830-48B90-C0iMXUA80..G202210-202309

BLACK,TRIM2#,4#

main72830-48C00-B0supersedes 72830-48B90-B0iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),MEDIUM GRAY,TRIM1#

main72830-48C00-C0supersedes 72830-48B90-C0iAXUH80,MXUA80202009-202112

"LEATHER PACKAGE"*(S),BLACK,TRIM2#,4#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iAXUH80;MXUA80..S202210

72868BCOVER, CENTER ARMREST HINGE

main72868-42040-C0iMXUA80..G202210-202309

BLACK,TRIM1#,2#,4#

78899CBOLT, REAR SUB SEAT

main78899-60070iAXUH80,MXUA80202009-202210

9020612064

main90206-12064

9155100845

main91551-00845

28 parts on this diagram · 5 diagrams in section
