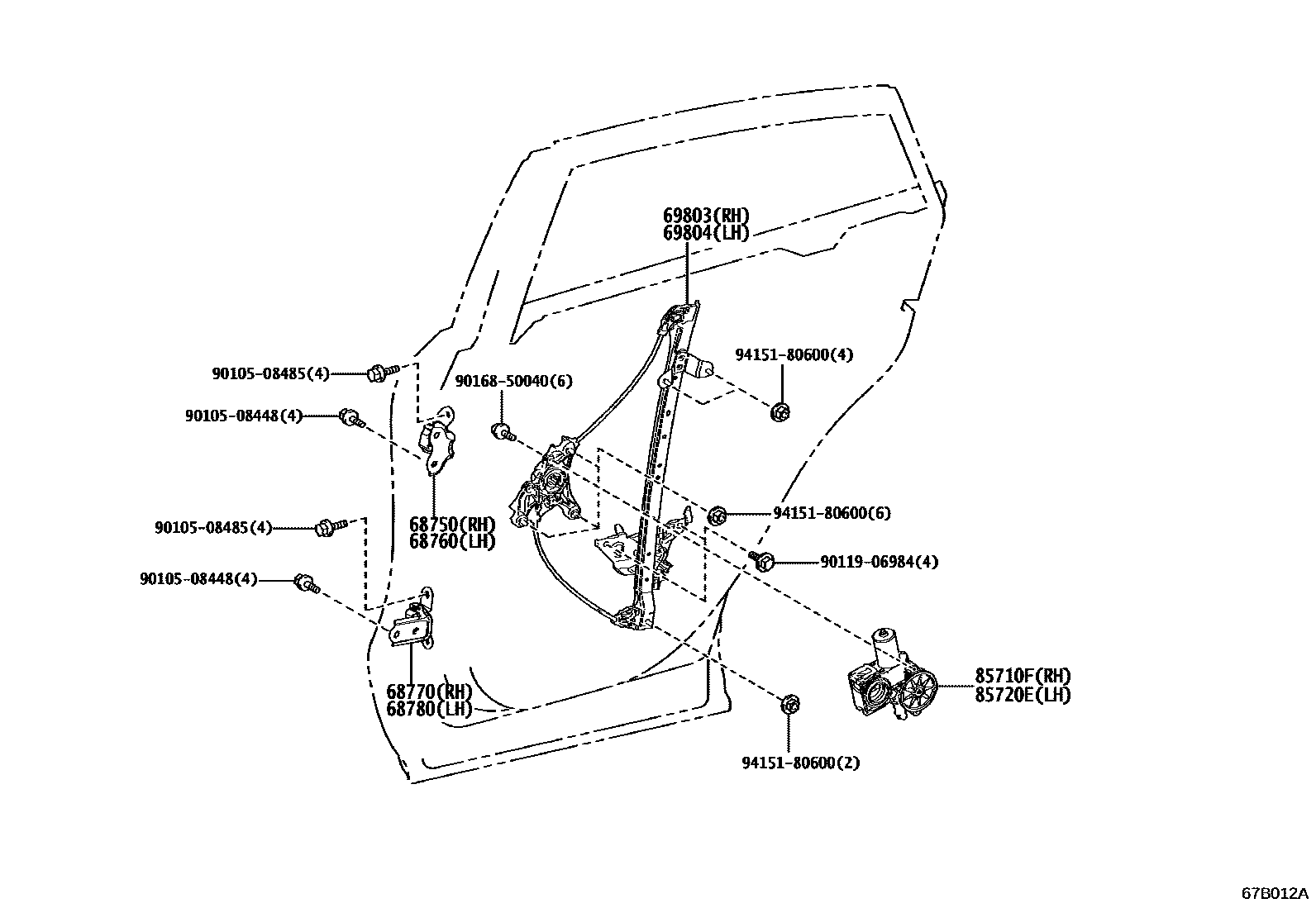

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iMXUA80..G202210-202309

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAXUH80,MXUA80202009-202210

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAXUH80,MXUA80202009-202210

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAXUH80,MXUA80202009-202210

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-48060iAXUH80,MXUA80202009-202104

main69803-48061iMXUA80..G202210-202309

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-48060iAXUH80,MXUA80202009-202104

main69804-48061iAXUH80,MXUA80202105-202210

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iMXUA80..G202210-202309

main85710-42150iAXUH80,MXUA80202009-202112

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iAXUH80;MXUA80..S202210

main85720-42140iAXUH80,MXUA80202009-202112

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
