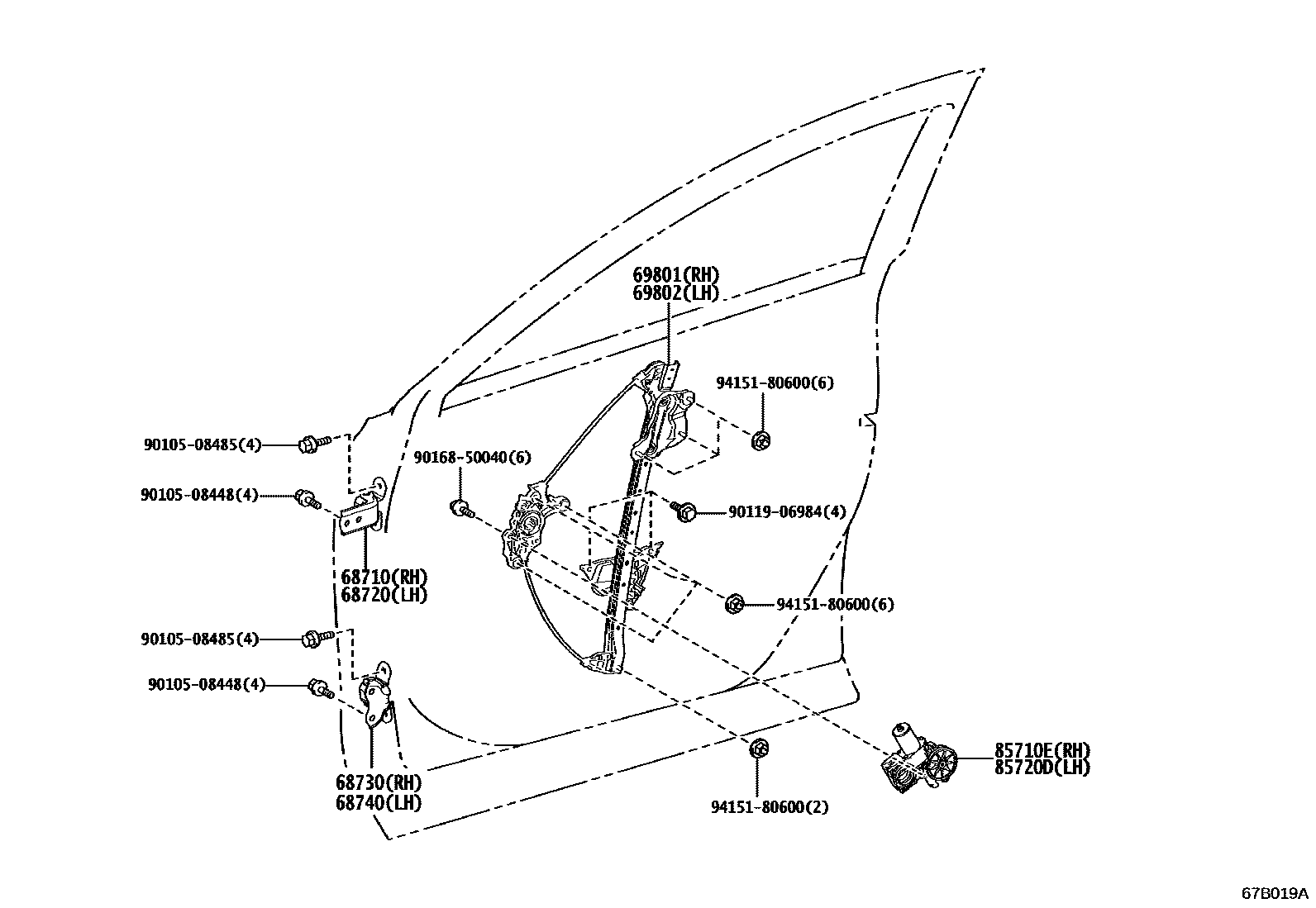

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMXUA80..G202210-202309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAXUH80,MXUA80202009-202210

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAXUH80,MXUA80202009-202210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAXUH80,MXUA80202009-202210

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-48090iAXUH80,MXUA80202009-202104

main69801-48091iMXUA80..G202210-202309

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-48100iAXUH80,MXUA80202009-202104

main69802-48101iAXUH80,MXUA80202105-202210

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iMXUA80..G202210-202309

main85710-42140iAXUH80,MXUA80202009-202112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iAXUH80;MXUA80..S202210

main85720-42130iAXUH80,MXUA80202009-202112

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
