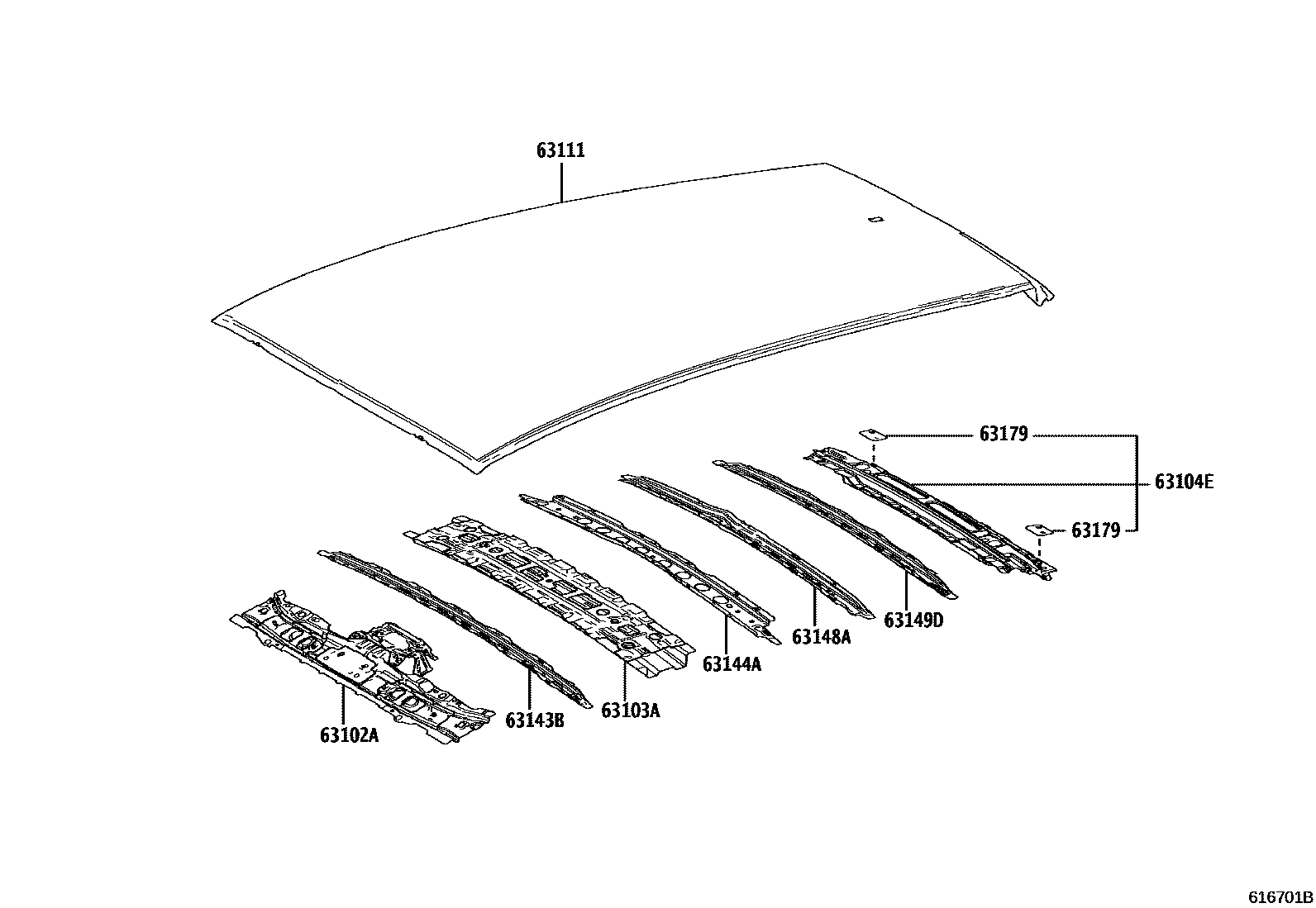

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF POANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF(PANORAMA ROOF)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48250iAXUH80,MXUA80..S202210

main63102-48918iAXUH80,MXUA80202009-202309

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-48070iAXUH80,MXUA80202009-202309

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-48040iAXUH80;MXUA80..S202009-202309

63111PANEL, ROOF

main63111-48400iAXUH80,MXUA80202009-202309

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48120iAXUH80,MXUA80202009-202309

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48110iAXUH80,MXUA80202009-202309

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-48050iAXUH80,MXUA80202009-202309

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-48050iAXUH80,MXUA80202009-202309

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iMXUA80..G202210-202309

9 parts on this diagram · 3 diagrams in section
