CONSOLE BOX & BRACKET

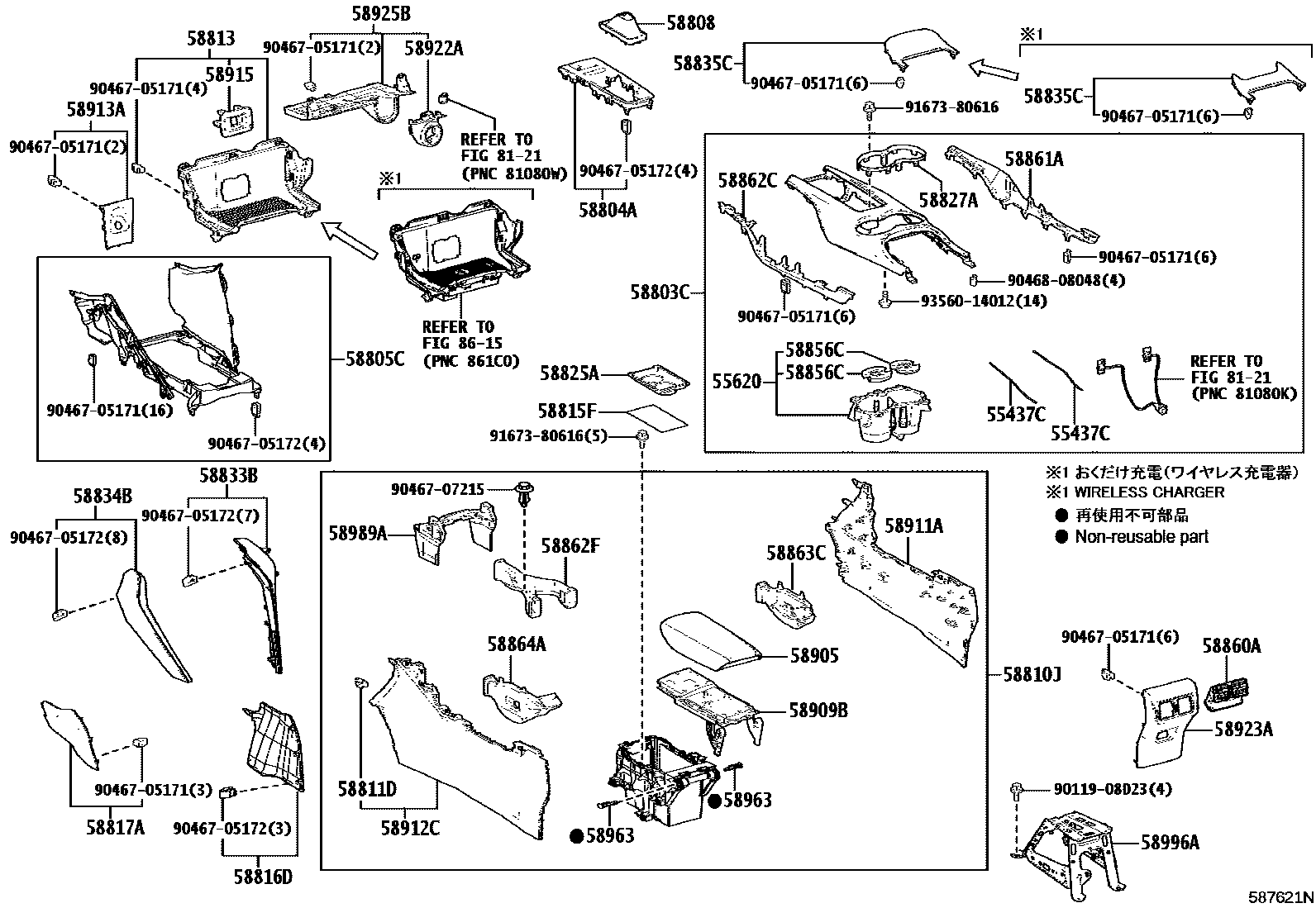

Parts diagram
55437CRETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
main55437-48160×2i202210
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-48190i202009-202210
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-48150-B3i202009-202010
MEDIUM GRAY,TRIM1#
main58803-48150-C2i202009-202011
BLACK,TRIM2#
main58803-48150-E0i202009-202010
DARK CHESTNUT,TRIM4#
main58803-48151-B3i202011-202210
MD.GRAY,TRIM1#
main58803-48151-C2i202011-202210
BLACK,TRIM2#
main58803-48151-E0i202011-202210
DARK CHESTNUT,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-48630i202009-202210
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-48150-A0i202210
WHITE WOOD,TRIM1#
main58805-48150-B0i202210-202309
GRAY WOOD,TRIM4#
main58805-48150-C0i202009-202210
GEOMETRIC BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-48030-C0i202210-202309
BLACK,TRIM1#,2#,4#
58810JBOX ASSY, CONSOLE
main58810-48600-C0i202009-202210
BLACK,TRIM2#
main58810-48600-C1i202009-202210
BLACK, MEDIUM GRAY,TRIM1#
main58810-48600-C2i202009-202210
BLACK, DK. CHESTNUT,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main90467-08227×2i202009-202210
58813BOX, CONSOLE, UPPER
main58813-48130i202009-202210
58815FCARPET, CONSOLE BOX
main58815-48080i202210-202309
58816DINSERT, CONSOLE BOX, FRONT NO.1
main58816-42030-C0i202009-202210
BLACK,TRIM1#,2#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-42030-C0i202009-202210
BLACK,TRIM1#,2#,4#
58825APOCKET, CONSOLE BOX
main58825-48050i202009-202210
58827AGARNISH, CONSOLE BOX POCKET
main58827-48011i202009-202210
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-48300-B0i202210-202309
MEDIUM GRAY,TRIM1#
main58833-48300-C0i202210-202309
BLACK,TRIM2#
main58833-48300-E0i202009-202210
DARK CHESTNUT,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-48170-B0i202210
MEDIUM GRAY,TRIM1#
main58834-48170-C0i202210-202309
BLACK,TRIM2#
main58834-48170-E0i202009-202210
DARK CHESTNUT,TRIM4#
58835CORNAMENT, CONSOLE BOX
main58835-48300-A0supersedes 58835-48290-A0i202210-202309
LEATHER PACKAGE,WHITE WOOD,TRIM1#
main58835-48300-B0supersedes 58835-48290-B0i202210-202309
LEATHER PACKAGE,GRAY WOOD,TRIM4#
main58835-48300-C0supersedes 58835-48290-C0i202009-202210
"LEATHER PACKAGE"*(S),GEOMETRIC BLACK,TRIM2#
58856CHOLDER, CONSOLE
main58856-48030×2i202210-202309
58860AREGISTER ASSY, CONSOLE BOX
main58860-48050-C2i202009-202210
BLACK,TRIM1#,2#,4#
58861ASUPPORT, CONSOLE BOX, NO.1
main58865-48050-B1i202210
MD. GRAY,TRIM1#
main58865-48050-C1i202009-202210
BLACK,TRIM2#
main58865-48050-E0i202009-202210
DARK CHESTNUT,TRIM4#
58862CSUPPORT, CONSOLE BOX, NO.2
main58866-48040-B1i202210-202309
MD. GRAY,TRIM1#
main58866-48040-C1i202009-202210
BLACK,TRIM2#
main58866-48040-E0i202009-202210
DARK CHESTNUT,TRIM4#
58862FDUCT, CONSOLE BOX, NO.2
main58862-48110i202210
58863CDUCT, CONSOLE BOX, NO.3
main58863-48070i202009-202210
58864ASUPPORT, CONSOLE BOX, NO.4
main58864-48070i202009-202210
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-48120-B0i202009-202209
MDEIUM GRAY,TRIM1#
main58905-48120-C0i202210
BLACK,TRIM2#
main58905-48120-E0i202210-202309
DK. CHESTNUT,TRIM4#
58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT
main58909-48010i202009-202209
58911APANEL, BOX SIDE, NO.1
main58911-48080-C0i202009-202210
BLACK,TRIM1#,2#,4#
58912CPANEL, BOX SIDE, NO.2
main58912-48160-C0i202009-202210
BLACK,TRIM1#,2#,4#
58913APANEL, BOX, NO.3
main58913-48060i202009-202210
58915PANEL, BOX BOTTOM
main58915-48100i202009-202210
58922APLATE, BOX, UPPER NO.2
main58922-48100i202009-202210
58923APANEL, CONSOLE REAR END
main58923-48190-C0i202009-202210
BLACK,TRIM1#,2#,4#
58925BINSULATOR, CONSOLE BOX, UPPER
main58925-48020i202009-202210
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
main58963-47040×2i202009-202209
58989ARETAINER, CONSOLE BOX
main58985-48030i202009-202210
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-42080i202009-202207
main58996-42081i202208-202210
8121
8615
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046707215
main90467-07215
9046808048
main90468-08048
9167380616
main91673-80616
9356014012
main93560-14012

45 parts on this diagram · 3 diagrams in section
