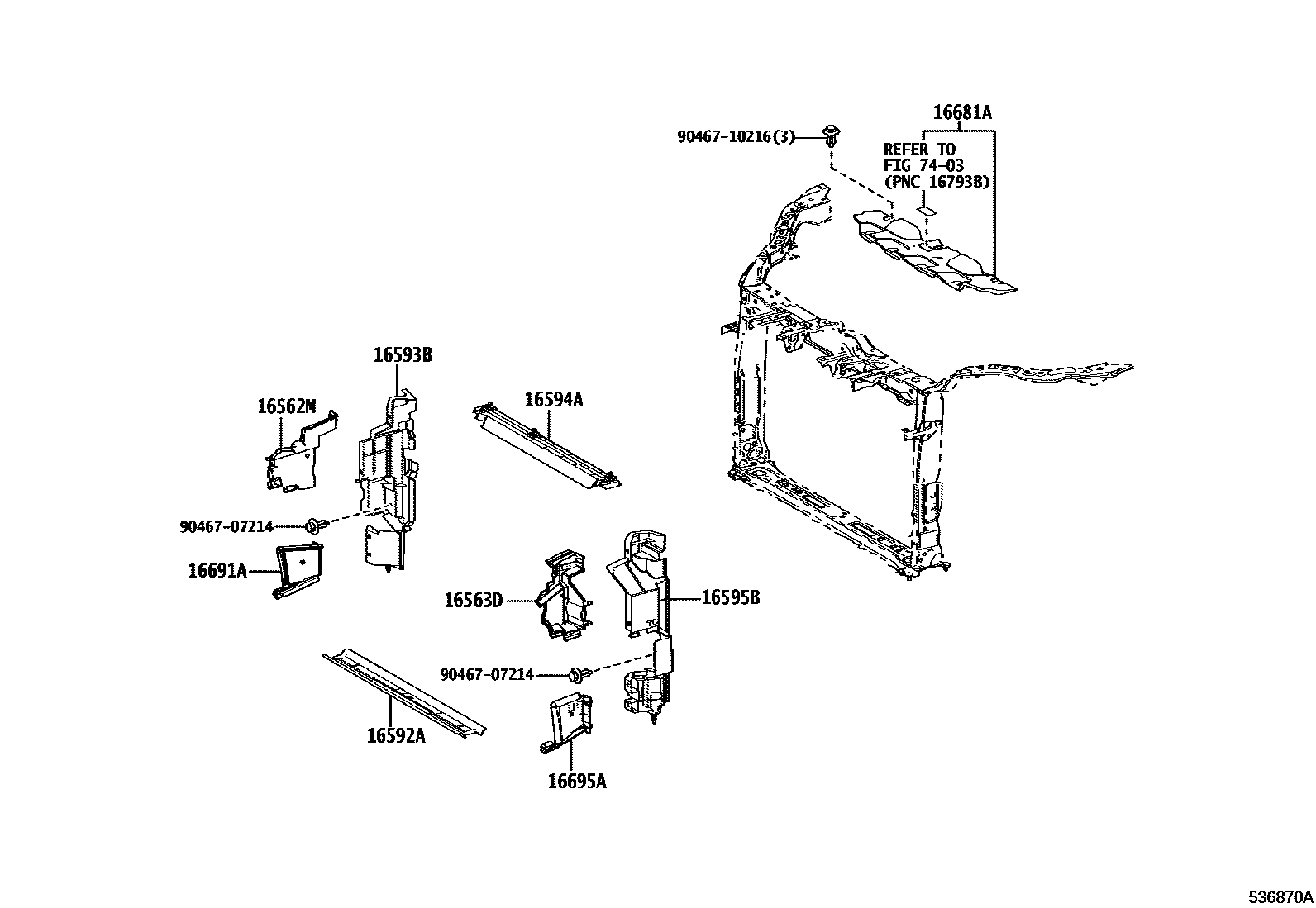

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-24030iM20AFKS..MXUA80..G202210-202309

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-24030iA25AFXS,M20AFKS..AXUH80,MXUA80202009-202210

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010iM20AFKS..MXUA80..G202210-202309

main16592-25040iA25AFXS..AXUH80202210

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24090iM20AFKS..MXUA80202009-202112

main16593-25140iA25AFXS..AXUH80202010-202112

main16593-25320iA25AFXS,M20AFKS..AXUH80,MXUA80202112-202210

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25AFXS,M20AFKS..AXUH80,MXUA80202009-202112

main16594-25040iA25AFXS,M20AFKS..AXUH80,MXUA80202112-202210

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24090iM20AFKS..MXUA80202009-202112

main16595-25140iA25AFXS..AXUH80202010-202112

main16595-25310iM20AFKS..MXUA80..G202210-202309

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-24010iM20AFKS..MXUA80..S202210

main16681-25030iA25AFXS..AXUH80202210

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-24030iA25AFXS..AXUH80;M20AFKS..MXUA80..S202210

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-24010iA25AFXS,M20AFKS..AXUH80,MXUA80202009-202210

7403

9046707214

main90467-07214

9046710216

main90467-10216

12 parts on this diagram · 4 diagrams in section
