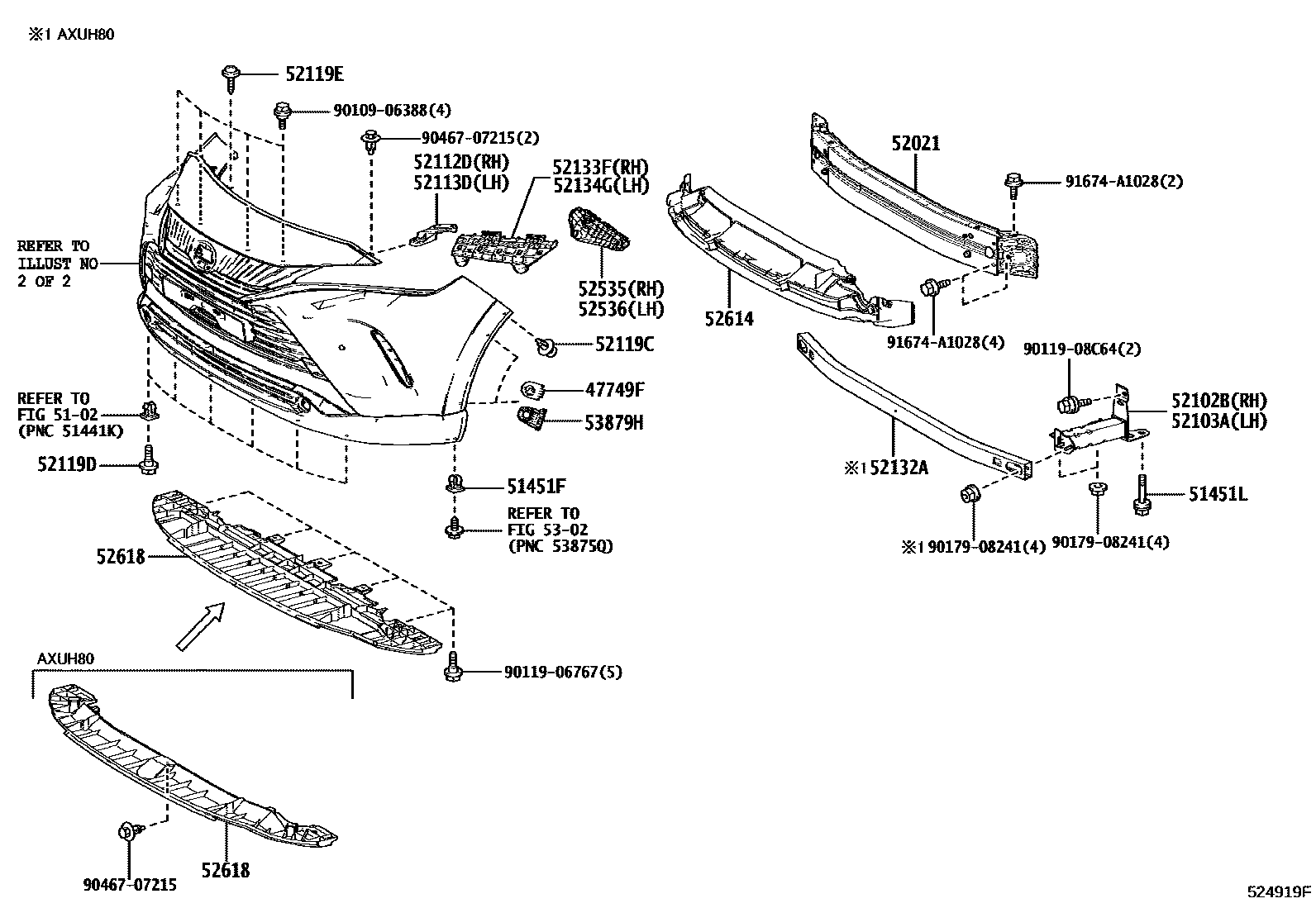

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-33030×4supersedes 47749-33030iAXUH80,MXUA80202009-202210

5102

51451FGROMMET, NO.1

main90189-06237×2supersedes 90189-06237iAXUH80,MXUA80202009-202210

51451LBOLT, NO.1

main90119-16029×2iMXUA80..G202210-202309

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42200iAXUH80,MXUA80202009-202210

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXUH80202010-202210

main52102-42110iMXUA80..G202210-202309

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXUH80202210

main52103-42110iMXUA80..G202210-202309

52112DEXTENSION, FRONT BUMPER, RH

main52112-48070iAXUH80,MXUA80202009-202210

NO PAINT REQ.

52113DEXTENSION, FRONT BUMPER, LH

main52113-48050iAXUH80,MXUA80202009-202210

NO PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2supersedes 90467-05170iAXUH80,MXUA80202009-202210

52119DSCREW, NO.1

main90159-60477×6supersedes 90159-60477iAXUH80,MXUA80202009-202210

52119ESCREW, NO.2

main90167-50063supersedes 90167-50063iAXUH80,MXUA80202009-202210

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXUH80202010-202210

52133FBRACKET, FRONT BUMPER, RH

main52133-48090iAXUH80,MXUA80202009-202210

52134GBRACKET, FRONT BUMPER, LH

main52134-48090iAXUH80,MXUA80202009-202210

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48090supersedes 52535-48090iAXUH80,MXUA80202009-202210

main52535-48091iAXUH80;MXUA80..S202411

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48080supersedes 52536-48080iAXUH80,MXUA80202009-202210

main52536-48081iAXUH80;MXUA80..S202411

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-48070iAXUH80,MXUA80202009-202204

main52614-48071iAXUH80,MXUA80202204-202210

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48040iMXUA80202009-202210

main52618-48050iAXUH80202010-202210

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4supersedes 53879-33030iAXUH80,MXUA80202009-202210

9010906388

main90109-06388

9011906767

main90119-06767

9011908C64

main90119-08C64

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

27 parts on this diagram · 2 diagrams in section
