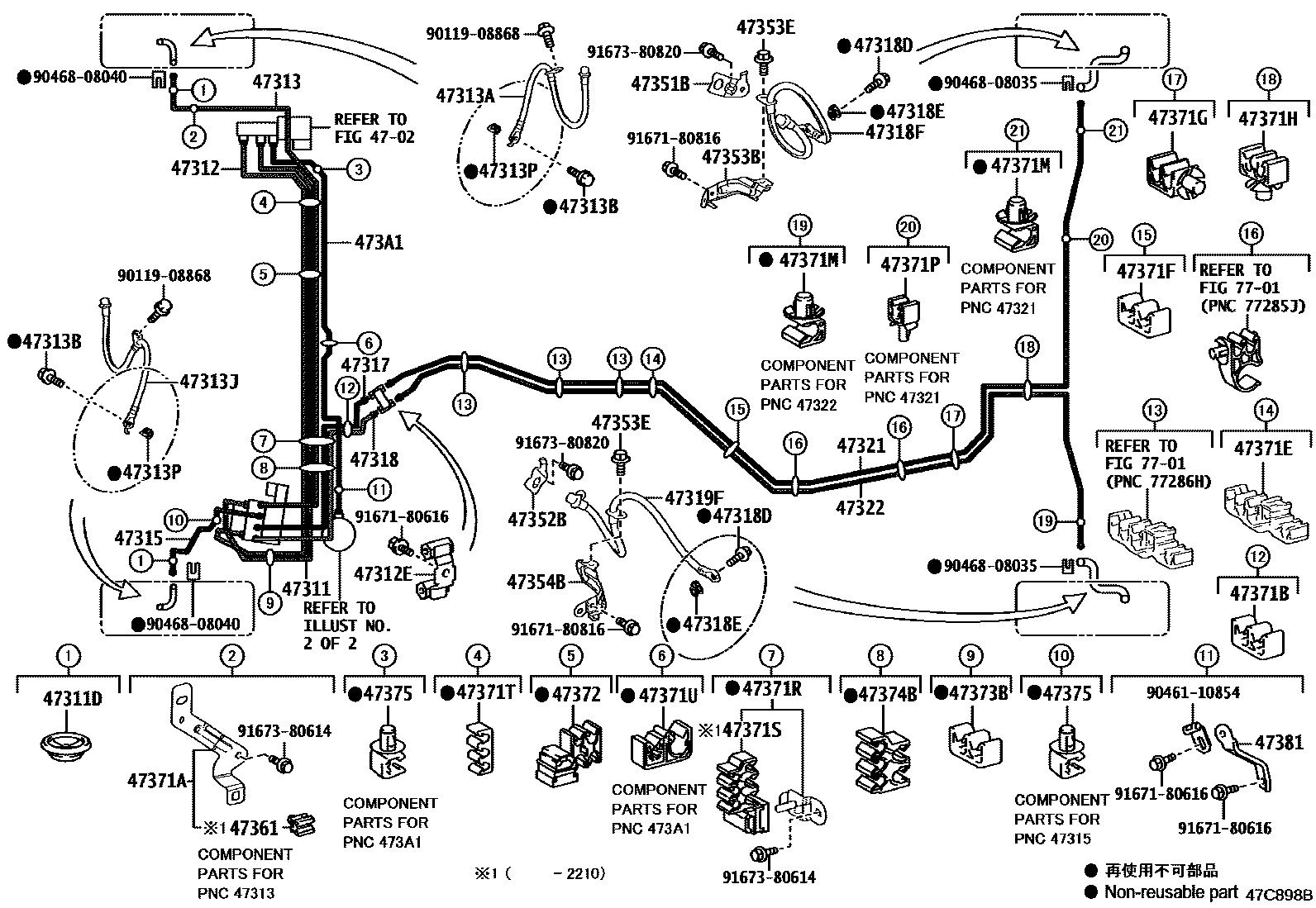

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-42270iAXUH80202210

main47311-48110iMXUA80..S202210

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAXUH80,MXUA80202009-202210

47312TUBE, FRONT BRAKE, NO.2

main47312-42440iAXUH80202010-202210

main47312-48060iMXUA80..G202210-202309

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10285iAXUH80;MXUA80..S202210

47313TUBE, FRONT BRAKE, NO.3

main47313-42430iMXUA80..S202210

main47313-48060iAXUH80202210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J12iAXUH80,MXUA80202009-202210

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXUH80;MXUA80..S202210

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J15iAXUH80,MXUA80202009-202210

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAXUH80,MXUA80202009-202210

47315TUBE, FRONT BRAKE, NO.5

main47315-42270iMXUA80..G202210-202309

main47315-42320iAXUH80202010-202210

47317TUBE, FRONT BRAKE, NO.7

main47317-42300iAXUH80202010-202210

main47317-48400iMXUA80..G202210-202309

47318TUBE, FRONT BRAKE, NO.8

main47318-42300iAXUH80202210

main47318-48250iMXUA80..G202210-202309

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXUH80,MXUA80202009-202210

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAXUH80,MXUA80202009-202210

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J08iAXUH80,MXUA80202009-202210

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J09iAXUH80,MXUA80202009-202210

47321TUBE, REAR BRAKE, NO.1

main47321-42210iAXUH80,MXUA80202009-202210

47322TUBE, REAR BRAKE, NO.2

main47322-42190iAXUH80,MXUA80202009-202210

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iAXUH80,MXUA80202009-202210

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iAXUH80,MXUA80202009-202210

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAXUH80,MXUA80202009-202210

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868×2iAXUH80,MXUA80202009-202210

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAXUH80,MXUA80202009-202210

47361CLAMP, TUBE

main90949-01D56iAXUH80,MXUA80202009-202210

47371ACLAMP, BRAKE TUBE, NO.1

main47371-42130iAXUH80,MXUA80202009-202210

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00903iAXUH80,MXUA80202009-202210

47371ECLAMP, BRAKE TUBE, NO.9

main77285-42150iAXUH80202010-202210

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00903iAXUH80,MXUA80202009-202210

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D13×3iMXUA80202009-202210

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D12iAXUH80,MXUA80202009-202210

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17×2iAXUH80,MXUA80202009-202210

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01E01iAXUH80,MXUA80202009-202210

47371RCLAMP, BRAKE TUBE, NO.16

main47371-42150iAXUH80,MXUA80202009-202210

47371SCLAMP, BRAKE TUBE, NO.17

main90949-01E31iAXUH80,MXUA80202009-202210

47371TCLAMP, BRAKE TUBE, NO.18

main90949-01E43iAXUH80202010-202210

47371UCLAMP, BRAKE TUBE, NO.19

main47371-42180iAXUH80202010-202210

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30iAXUH80,MXUA80202009-202210

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E23×2iMXUA80202009-202210

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E40×2iMXUA80202009-202210

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D17iMXUA80202009-202210

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-42200iAXUH80202010-202210

473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER

main473A1-42030iAXUH80202010-202210

7701

9011908868

main90119-08868

9046110854

main90461-10854

9046808035

main90468-08035

9046808040

main90468-08040

9167180616

main91671-80616

9167180816

main91671-80816

9167380614

main91673-80614

9167380820

main91673-80820

52 parts on this diagram · 4 diagrams in section
