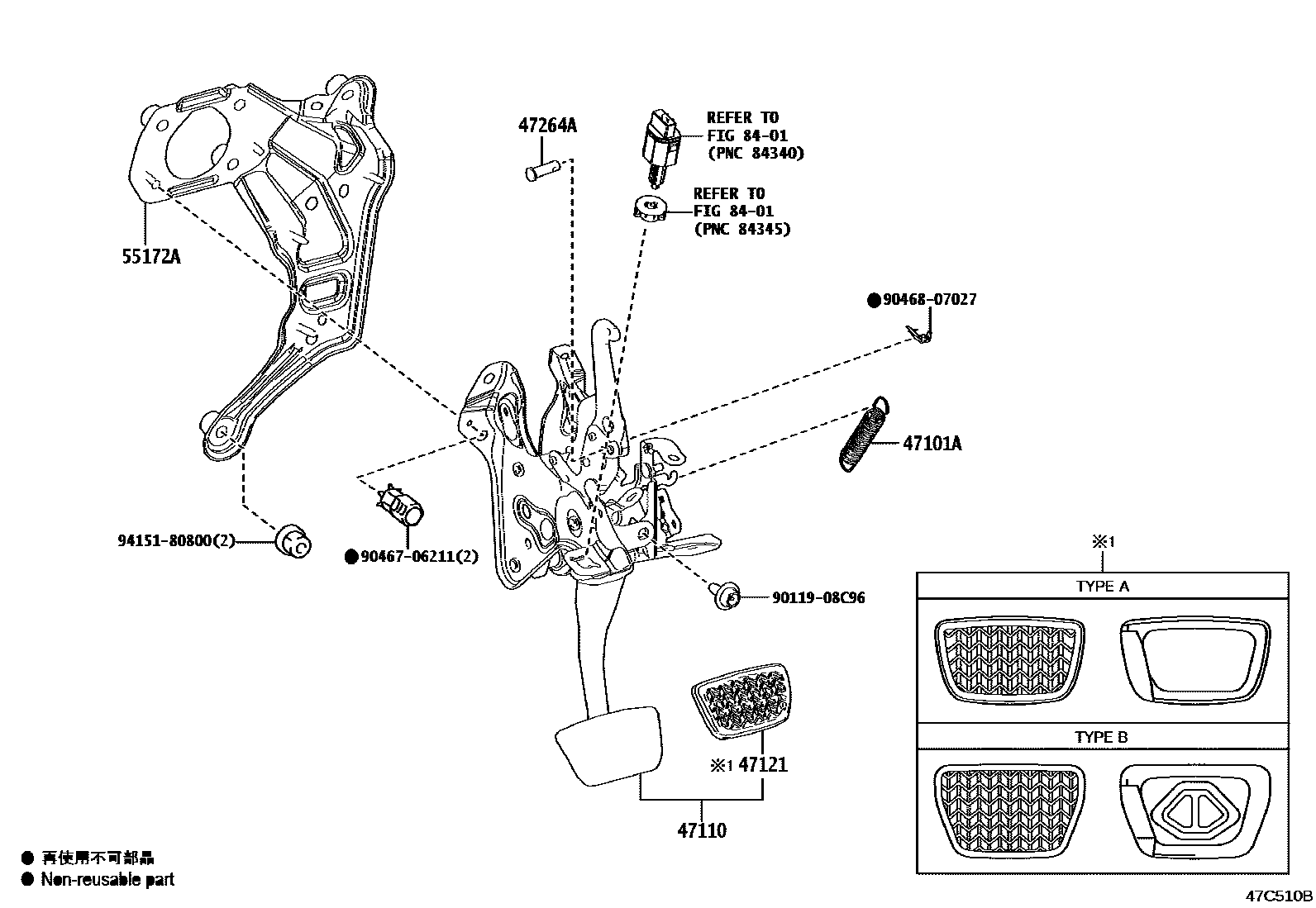

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXUH80,MXUA80202009-202210

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42280iMXUA80202009-202110

main47110-42370iAXUH80202010-202110

main47110-42400iMXUA80202110-202210

main47110-42440iAXUH80202110-202210

47121PAD, BRAKE PEDAL

main47121-48010iAXUH80,MXUA80202009-202110

TYPE A:REFER ILLUST.

main47121-62010iAXUH80,MXUA80202110-202112

TYPE B:REFER ILLUST.

47264APIN(FOR PUSH ROD)

main90240-06028iMXUA80..S202210

main90240-08078iAXUH80202210

55172ABASE, BRAKE PEDAL SUPPORT

main55172-42020iAXUH80,MXUA80202009-202210

8401

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
