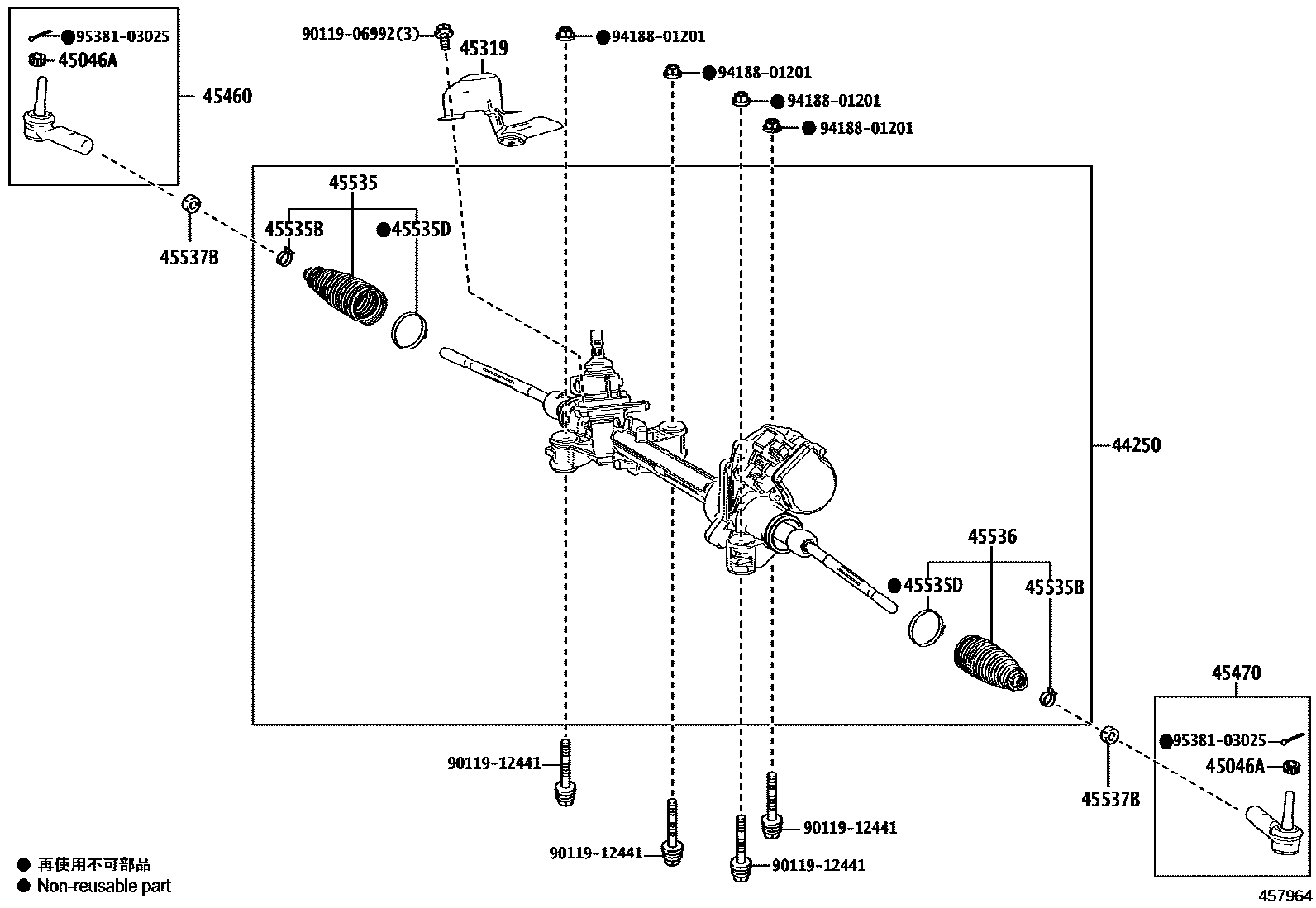

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48130iAXUH80,MXUA80202009-202112

*614

main44250-48240iAXUH80,MXUA80202112-202210

*614

main44250-48310iMXUA80..G202210-202309

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAXUH80202210

main90171-12016×2iMXUA80..S202210

45319INSULATOR, STEERING GEAR HEAT

main45319-42030iAXUH80,MXUA80202009-202210

45460ROD ASSY, TIE, RH

main45460-49095iAXUH80202210

main45460-49105iMXUA80..G202210-202309

45470ROD ASSY, TIE, LH

main45460-49095iAXUH80202210

main45460-49105iMXUA80..G202210-202309

45535BOOT, STEERING RACK, NO.1

main45535-29025iMXUA80..G202210-202309

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAXUH80,MXUA80202009-202210

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06030×2iAXUH80;MXUA80..S202210

45536BOOT, STEERING RACK, NO.2

main45535-29025iAXUH80,MXUA80202009-202210

45537BNUT, RACK END LOCK

main90178-16001×2iAXUH80,MXUA80202009-202210

(J)

main90178-A0013×2iAXUH80,MXUA80202009-202210

(L)

9011906992

main90119-06992

9011912441

main90119-12441

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
