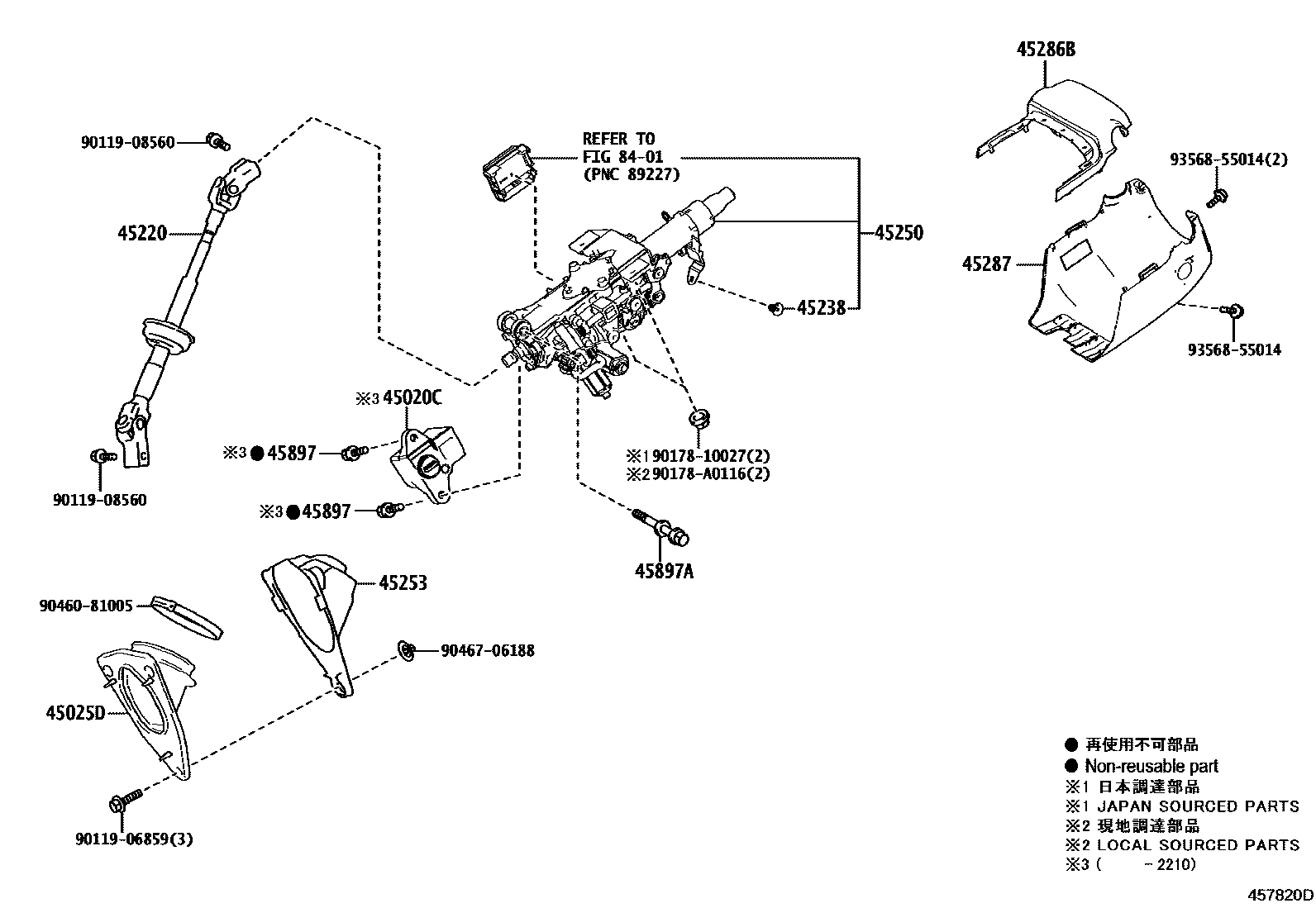

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48120iAXUH80,MXUA80202009-202210

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42090iAXUH80,MXUA80202009-202210

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42020iAXUH80,MXUA80202009-202210

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXUH80,MXUA80202009-202210

45250COLUMN ASSY, STEERING

main45250-48430iAXUH80,MXUA80202009-202210

45253COVER, STEERING COLUMN HOLE

main45253-42030iAXUH80,MXUA80202009-202210

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-33240-C0iAXUH80,MXUA80202009-202210

BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAXUH80,MXUA80202009-202210

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXUH80,MXUA80202009-202210

8401

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

90178A0116

main90178-A0116

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
