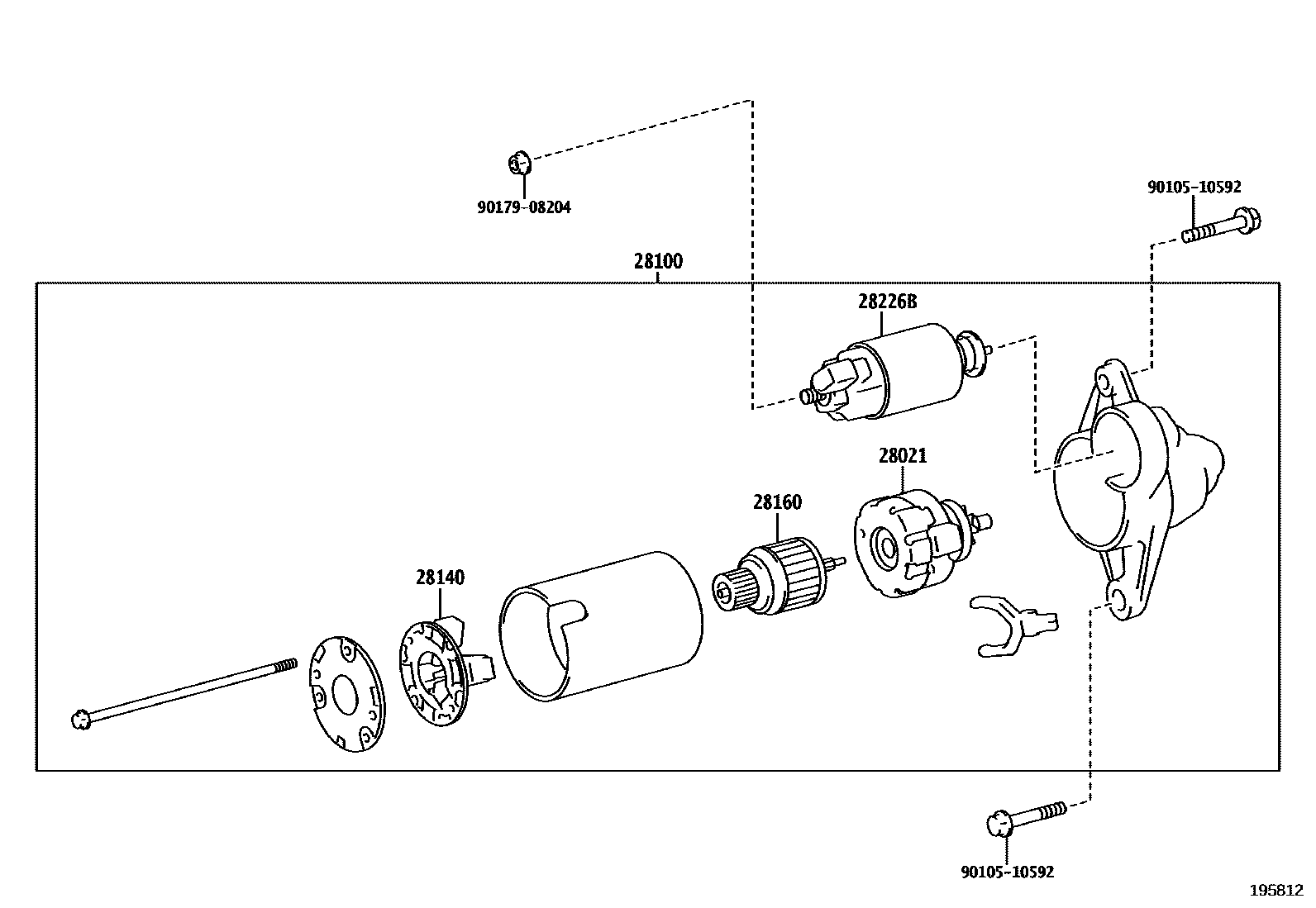

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MXUA80202009-202210

28100STARTER ASSY

main28100-24120iM20AFKS..MXUA80202009-202210

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MXUA80202009-202210

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MXUA80202009-202210

28226BSTARTER KIT, REPAIR SERVICE

main28226-24120iM20AFKS..MXUA80202009-202210

9010510592

main90105-10592

9017908204

main90179-08204

7 parts on this diagram · 1 diagram in section
