IGNITION COIL & SPARK PLUG / GLOW PLUG

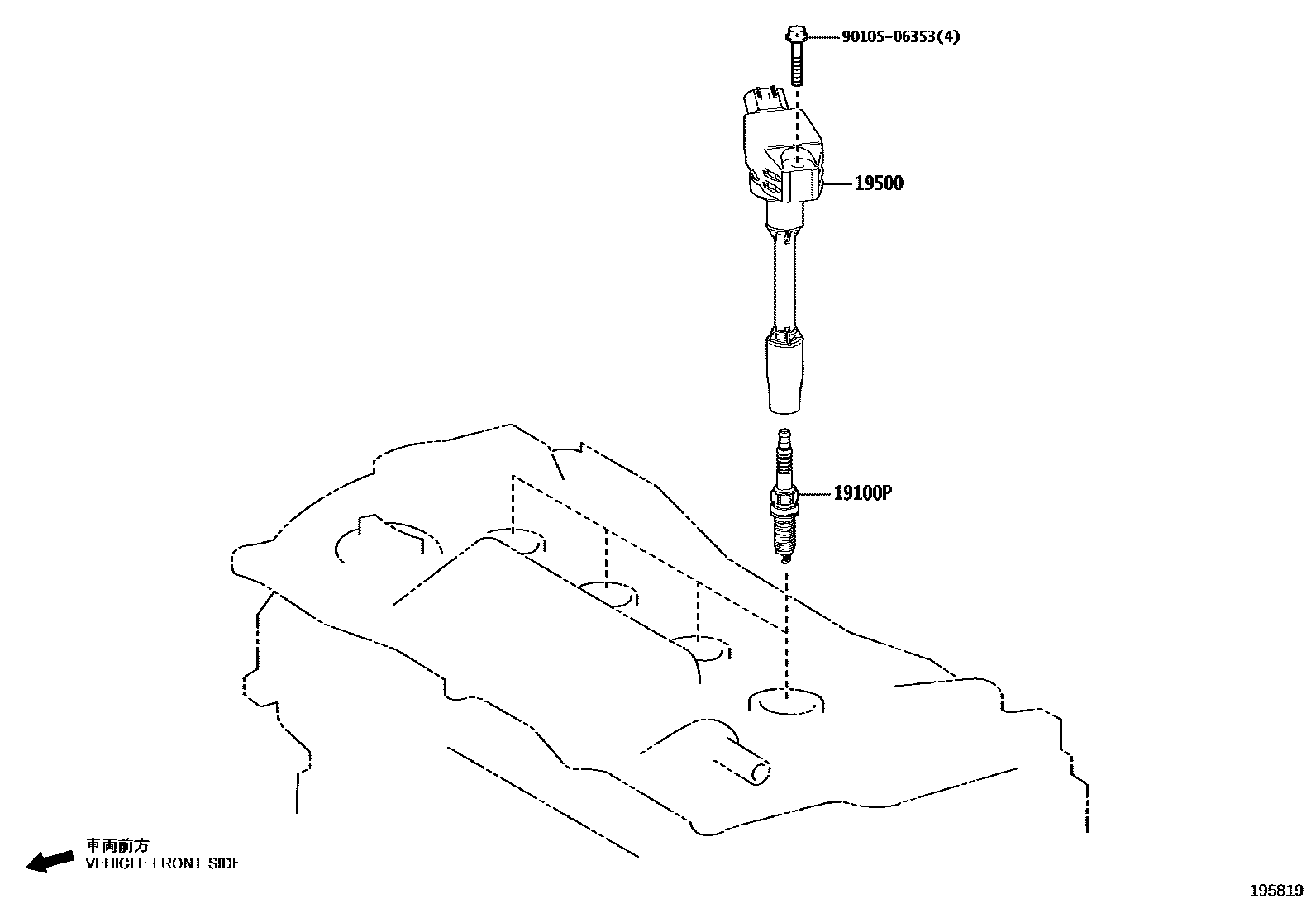

Parts diagram

19100PPLUG, SPARK

main90919-01289i202010-202210

FC16HR-Q8

main90919-01297i202009-202309

FC20HR-Q8

19500COIL ASSY, IGNITION

main90919-02276i202009-202309

main90919-02277i202010-202210

9010506353

main90105-06353

3 parts on this diagram · 2 diagrams in section
