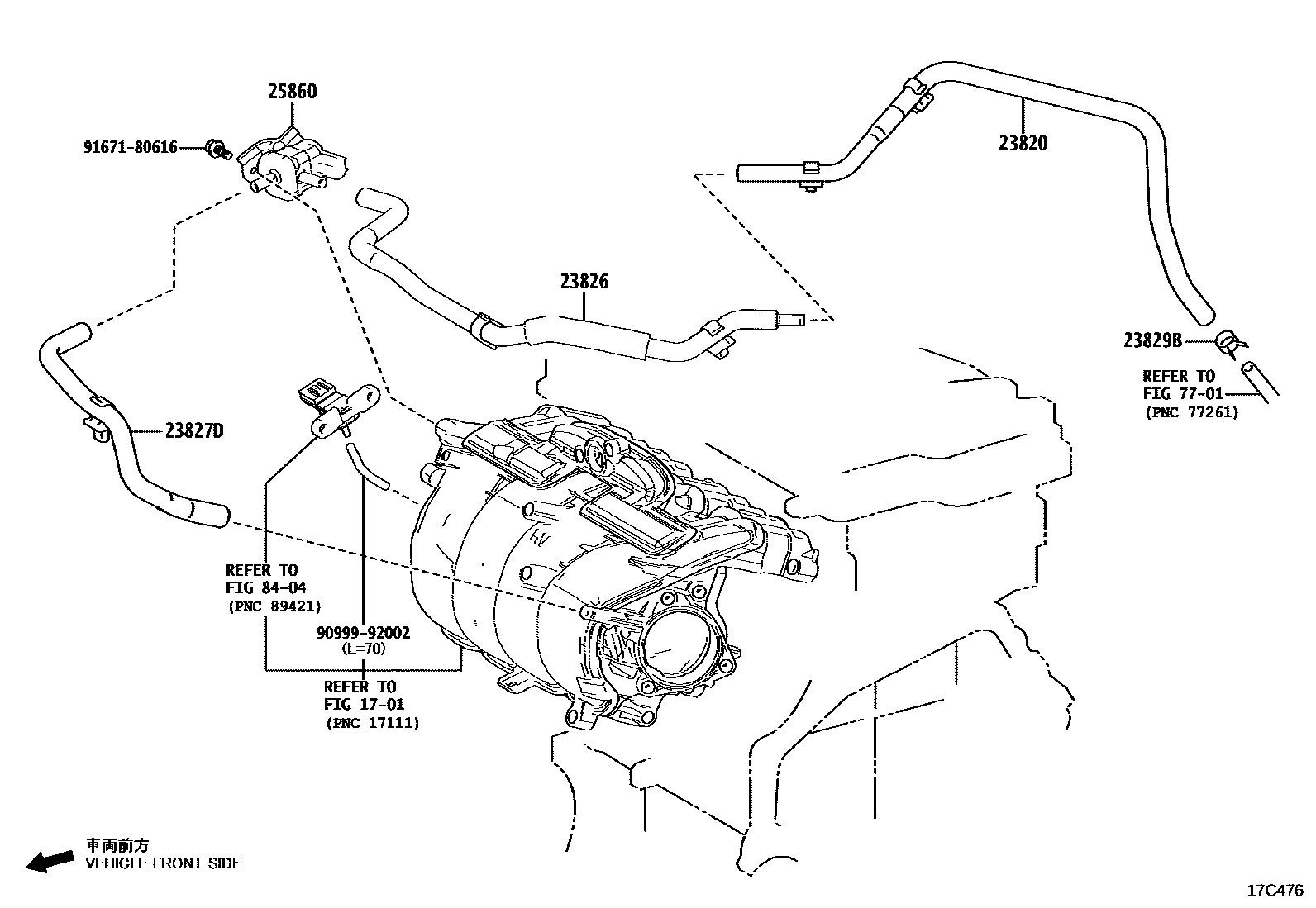

VACUUM PIPING

0001 1 0002 1 0003 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25190iA25AFXS..AXUH80202210

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AXUH80202210

main23826-24040iM20AFKS..MXUA80..S202210

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AXUH80202210

main23826-24020iM20AFKS..MXUA80202009-202210

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-15004iM20AFKS..MXUA80..S202210

main96136-41801iA25AFXS..AXUH80202210

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24020iM20AFKS..MXUA80..S202210

main25860-25020iA25AFXS..AXUH80202010-202210

7701

8404

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 3 diagrams in section
