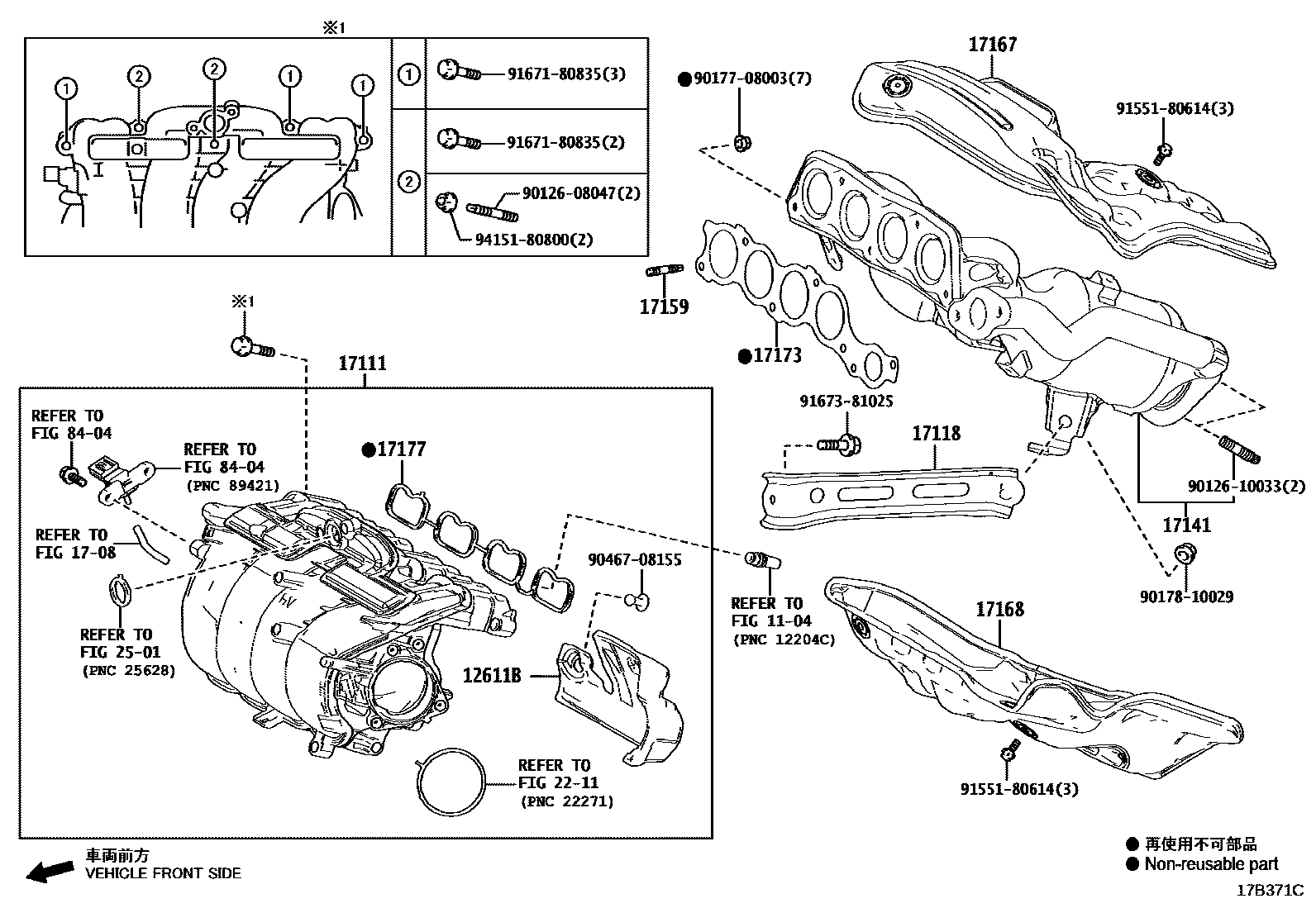

MANIFOLD

0001 1 0002 1 0003 1

1104

12611BCOVER, ENGINE, NO.1

main12613-25020iA25AFXS..AXUH80202010-202210

1708

17111MANIFOLD, INTAKE

main17120-24010iM20AFKS..MXUA80202009-202309

main17120-25020iA25AFXS..AXUH80202010-202210

17118STAY, MANIFOLD

main17118-24020iM20AFKS..MXUA80..S202009-202309

main17118-25030iA25AFXS..AXUH80202010-202210

17141MANIFOLD, EXHAUST

main17141-24080iM20AFKS..MXUA80202112-202309

main17141-24090iM20AFKS..MXUA80202009-202112

main17141-25131iA25AFXS..AXUH80202010-202210

sub17141-25021

main17141-25630iA25AFXS..AXUH80202210

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iA25AFXS..AXUH80202009-202309

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24040iM20AFKS..MXUA80202009-202309

main17167-25040iA25AFXS..AXUH80202010-202210

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24040iM20AFKS..MXUA80202009-202309

main17168-25040iA25AFXS..AXUH80202010-202210

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010iM20AFKS..MXUA80202009-202309

main17173-25020iA25AFXS..AXUH80202010-202210

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020iM20AFKS..MXUA80..S202009-202309

main17171-25010iA25AFXS..AXUH80202010-202210

2211

2501

8404

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9046708155

main90467-08155

9155180614

main91551-80614

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

23 parts on this diagram · 3 diagrams in section
