V-BELT

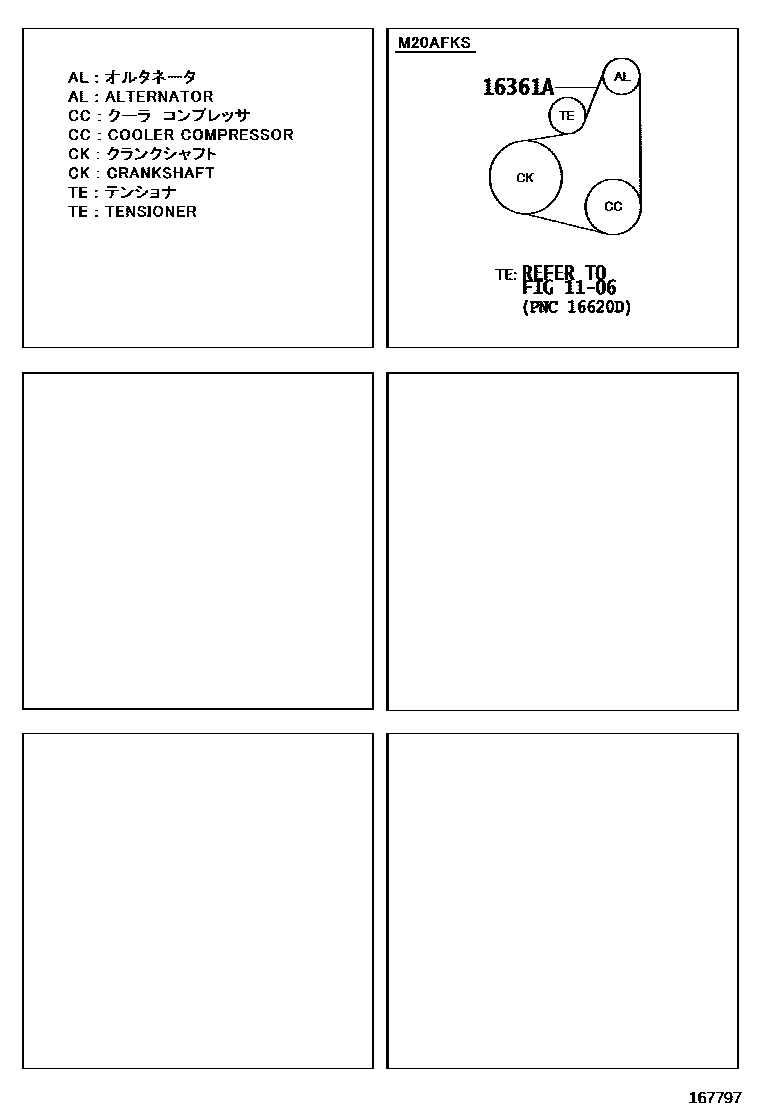

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02761i202009-202210

main90916-02788i202303-202309

2 parts on this diagram · 1 diagram in section
