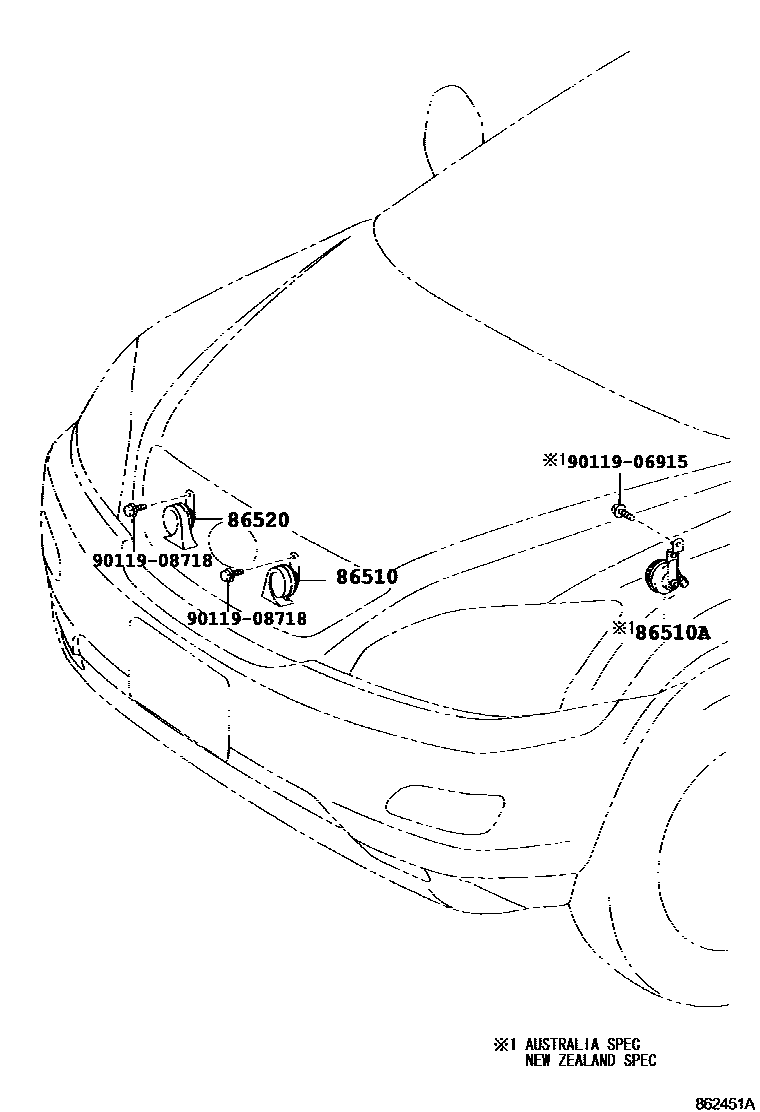

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48050iMHU38200503-200812

main86510-30690iMHU38..LHD200608-200610

CHINA SPEC

main86510-30691iMHU38..LHD200611-200812

CHINA SPEC

sub86510-30692

86510AHORN ASSY, SECURITY

main86510-48090iMHU38..RHD200608-200708

AUSTRALIA SPEC

86520HORN ASSY, LOW PITCHED

main86520-48030iMHU38200503-200812

main86520-30600iMHU38..LHD200608-200610

CHINA SPEC

main86520-30601iMHU38..LHD200611-200812

CHINA SPEC

sub86520-30602

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
