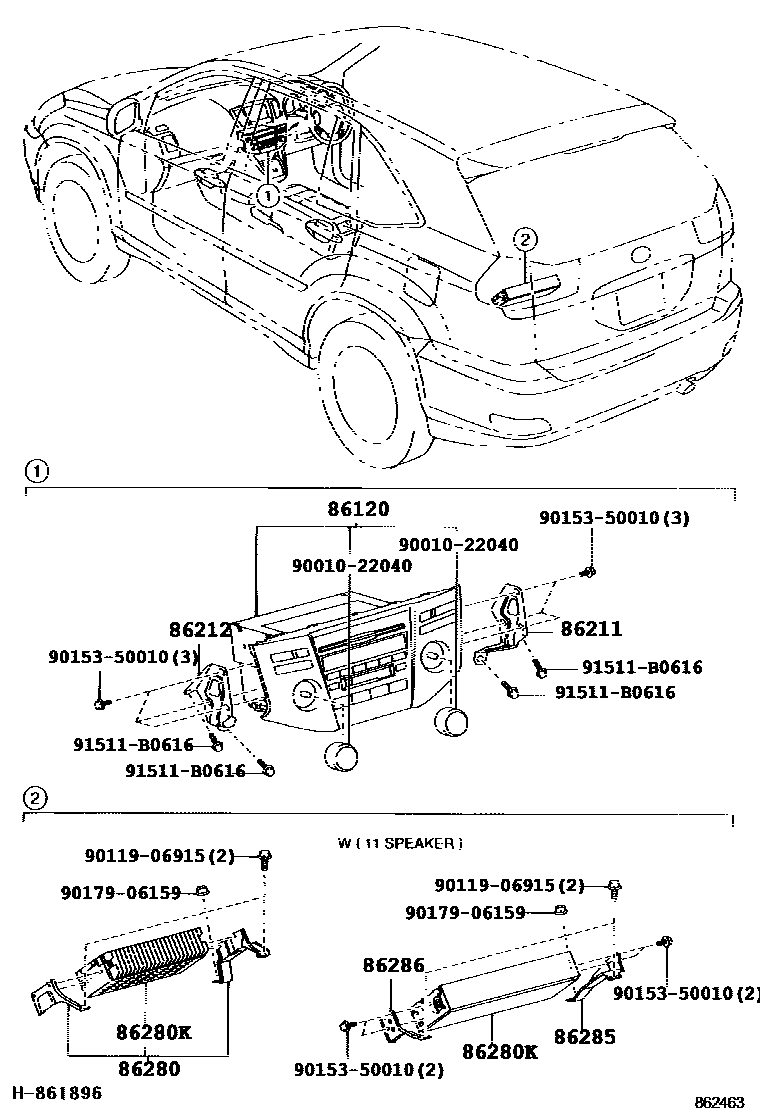

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-48590

main86120-48600

main86120-48610

main86120-48620

main86120-48670

main86120-48680

main86120-48690

main86120-48700

main86120-48C60

main86120-48C70

main86120-48C80

main86120-48C90

main86120-48D00

main86120-48D10

main86120-48D40

main86120-48D50

main86120-48D60

main86120-48D70

main86120-48D80

main86120-48D90

main86120-48E10

main86120-48F50

86211BRACKET, RADIO, NO.1

main86211-48030iMHU38200503-200812

86212BRACKET, RADIO, NO.2

main86212-48030iMHU38200503-200812

86280AMPLIFIER ASSY, STEREO COMPONENT

main86100-48070iMHU38200503-200607

main86100-48090iMHU38200608-200812

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-48010iMHU38200503-200608

main86280-0E010supersedes 86280-48080iMHU38..RHD200608-200812

AUDIO-MARK LEVINSON 11SPEAKER RDS RHD

main86280-0E021iMHU38..LHD200503-200608

SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS LHD

main86280-0W181iMHU38..RHD200503-200608

AUDIO-MARK LEVINSON 11SPEAKER RDS RHD

86285BRACKET, AMPLIFIER, NO.1

main86285-48070iMHU38..RHD200503-200608

AUDIO-MARK LEVINSON 11SPEAKER RDS RHD

main86285-48090iMHU38..RHD200608-200812

AUDIO-MARK LEVINSON 11SPEAKER RDS RHD

86286BRACKET, AMPLIFIER, NO.2

main86286-48050iMHU38..LHD200503-200607

AUDIO-MARK LEVINSON 11SPEAKER RDS LHD

main86286-48070iMHU38..RHD200608-200812

AUDIO-MARK LEVINSON 11SPEAKER RDS RHD

9001022040

main90010-22040

9011906915

main90119-06915

9015350010

main90153-50010

9017906159

main90179-06159

91511B0616

main91511-B0616

12 parts on this diagram · 5 diagrams in section
