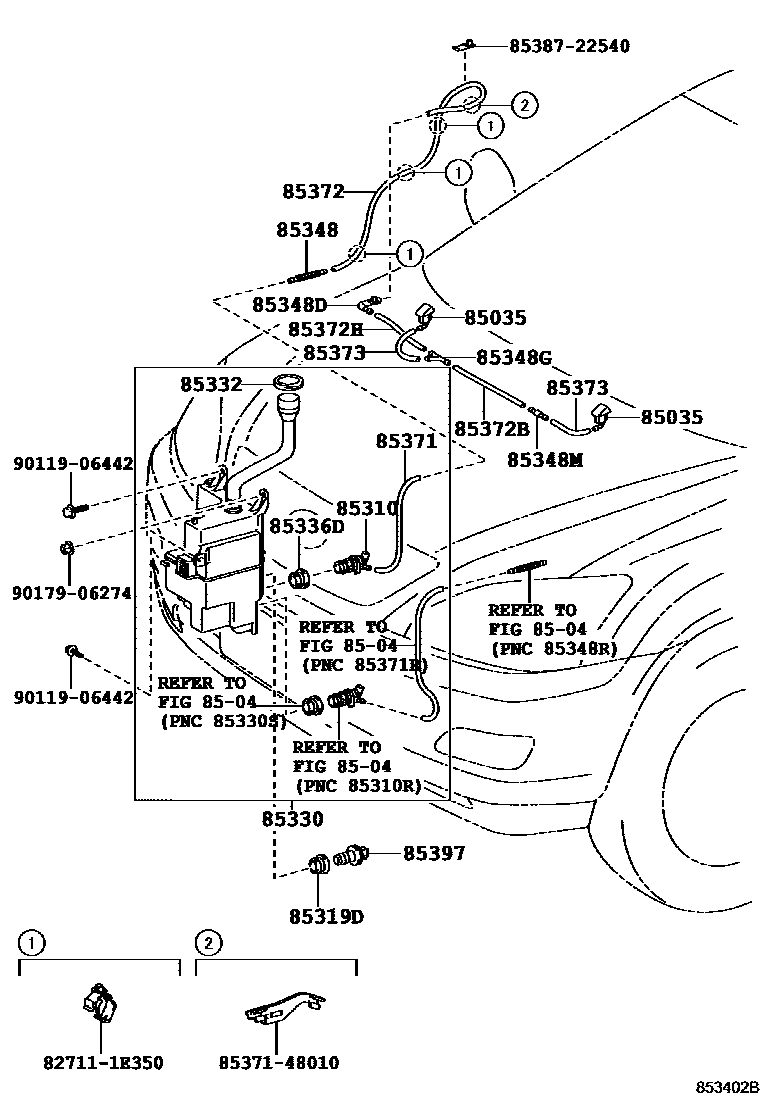

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E020×2iMHU38200503-200812

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iMHU38200503-200812

85319DPACKING, FRONT WASHER

main85319-33230iMHU38200503-200812

85330JAR ASSY, WINDSHIELD WASHER

main85355-48020iMHU38200503-200812

85332CAP, WINDSHIELD WASHER JAR

main85386-60070×2iMHU38200503-200812

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300iMHU38200503-200812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150iMHU38200503-200812

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iMHU38200503-200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iMHU38200503-200812

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iMHU38200503-200812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iMHU38200503-200812

L=1450(*H,L=290)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iMHU38200503-200812

L=1450(*H,L=1350)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMHU38200503-200812

L=1450(*H,L=440)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33082iMHU38200503-200812

L=1450(*H,L=310)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33037×2iMHU38200503-200812

L=200

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iMHU38200503-200812

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8537148010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-48010

8538722540CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22540

9011906442

main90119-06442

9017906274

main90179-06274

22 parts on this diagram · 1 diagram in section
