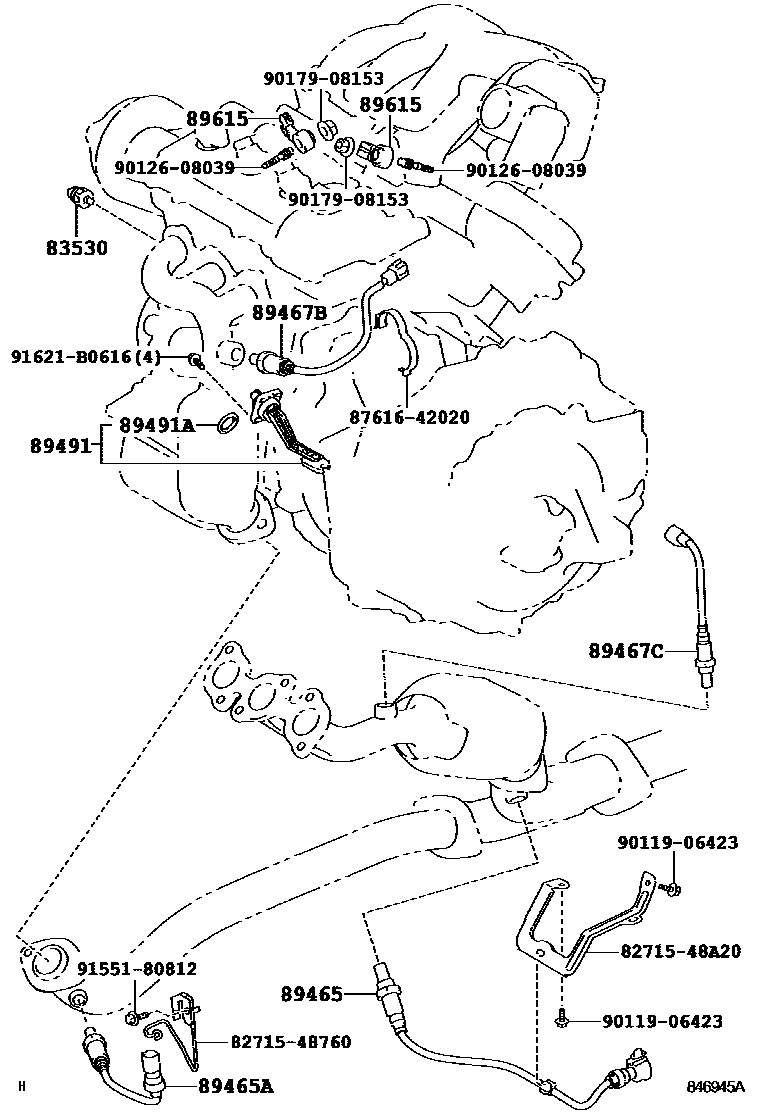

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL1/2 0007 1INSTRUMENT PANEL1/2 0008 1INSTRUMENT PANEL2/2 0009 1IGNITION & COMBINATION SW 0010 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMHU38200503-200812

DENSO

main83530-60020iMHU38200503-200812

YAZAKI

89465SENSOR, OXYGEN

main89465-48200iMHU38200503-200812

89465ASENSOR, OXYGEN NO.2

main89465-48210iMHU38200503-200812

89467BSENSOR, AIR FUEL RATIO

main89467-48060iMHU38200503-200812

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48080iMHU38200503-200812

89491SENSOR, ENGINE OIL LEVEL

main89491-33030iMHU38..RHD200503-200812

NEW ZEALAND SPEC

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iMHU38..RHD200503-200812

NEW ZEALAND SPEC

89615SENSOR, KNOCK CONTROL

main89615-20090×2iMHU38200503-200812

8271548760BRACKET,WIRING HARNESS CLAMP

main82715-48760

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9011906423

main90119-06423

9012608039

main90126-08039

9017908153

main90179-08153

9155180812

main91551-80812

91621B0616

main91621-B0616

16 parts on this diagram · 10 diagrams in section
