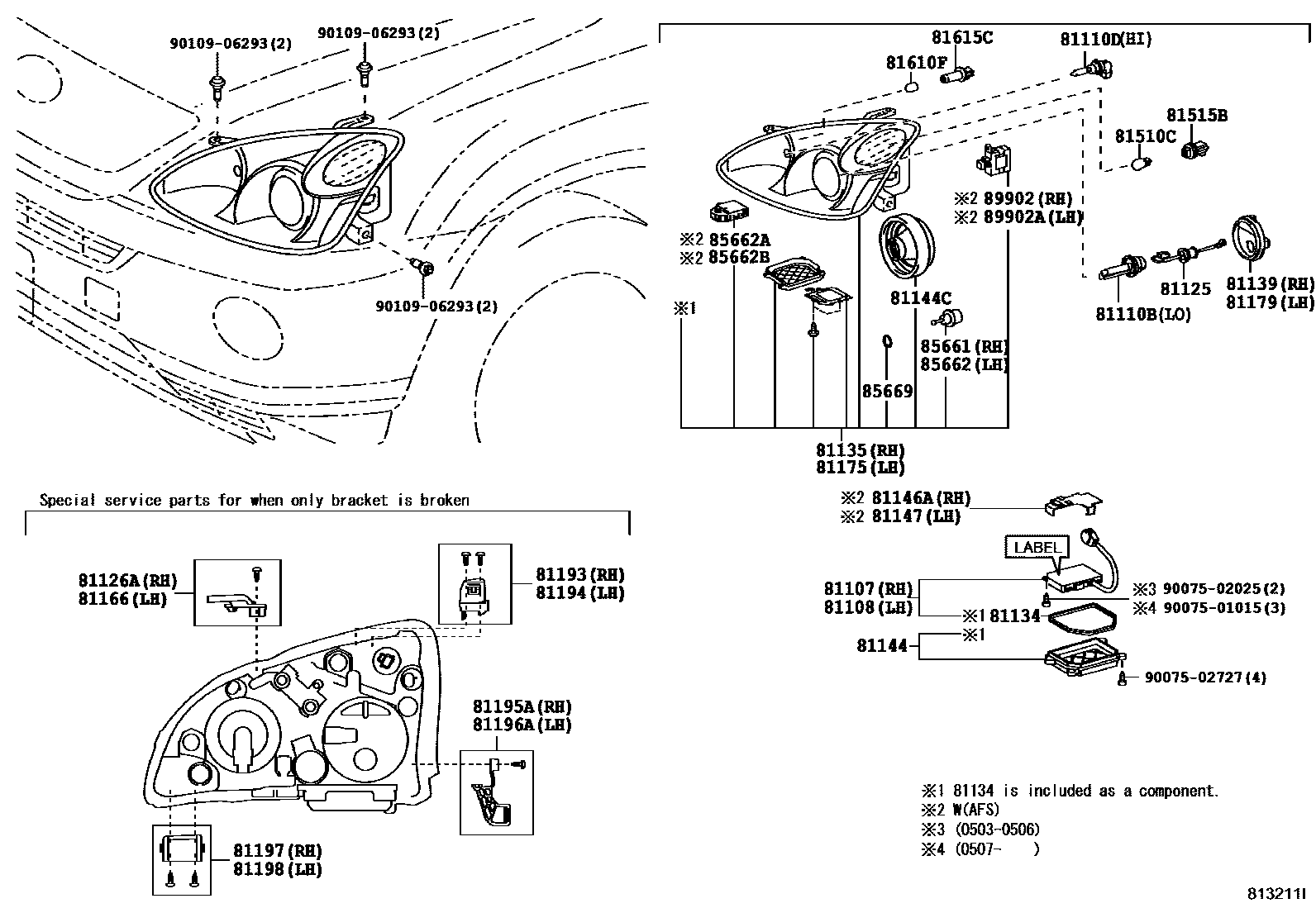

HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-48210i200503-200812

main81107-48190i200608-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-48210i200503-200812

main81107-48180i200503-200508

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION,LABEL=85967-28010

main81107-48190i200608-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

81110BBULB(FOR HEADLAMP, NO.1)

main90981-20005×2i200503-200812

85V 35W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2i200503-200812

12V65W(SAE),60W(ECE)

main90981-13066×2i200708-200812

12V 65W,HALOGEN,AUSTRALIA SPEC&LUXURY PACKAGE

81125CORD, HEADLAMP

main81125-48180×2i200503-200812

81126APLATE, HEADLAMP, RH

main81126-48020i200503-200812

81134GASKET, HEADLAMP

main90075-68005i200503-200812

81135UNIT ASSY, HEADLAMP, RH

main81145-48181i200508-200708

sub81145-48182

main81145-48190supersedes 81145-48180i200503-200508

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81145-48191i200508-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

sub81145-48192

main81145-48240supersedes 81145-48231i200503-200508

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81145-48241i200508-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81145-48242supersedes 81145-48232i200611-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81145-48341i200608-200708

AUSTRALIA SPEC&LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81145-48590supersedes 81145-48580i200708-200812

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81145-48630supersedes 81145-48620i200708-200812

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81145-48650supersedes 81145-48580i200708-200812

NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81145-48800supersedes 81145-48580i200708-200812

AUSTRALIA SPEC&LUXURY PACKAGE

81139COVER, HEADLAMP SOCKET

main81139-48180i200503-200812

81144COVER, HEADLAMP, NO.1

main90075-68003×2i200503-200507

main90075-68008i200508-200812

main90075-68009i200508-200812

81144CCOVER, HEADLAMP SOCKET

main90075-65006×2i200503-200708

81146AFITTING, HEADLAMP, RH

main81146-48190i200503-200507

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81146-48261i200708-200812

NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

81147FITTING, HEADLAMP, LH

main81146-48190i200503-200507

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81146-48261i200508-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

81166PLATE, HEADLAMP, LH

main81166-48020i200503-200812

81175UNIT ASSY, HEADLAMP, LH

main81185-48181i200508-200708

sub81185-48182

main81185-48190supersedes 81185-48180i200503-200508

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81185-48191i200508-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

sub81185-48192

main81185-48240supersedes 81185-48231i200503-200508

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81185-48241i200608-200610

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81185-48242supersedes 81185-48232i200611-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81185-48341i200608-200708

AUSTRALIA SPEC&LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main81185-48590supersedes 81185-48580i200708-200812

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81185-48630supersedes 81185-48620i200708-200812

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81185-48650supersedes 81185-48580i200708-200812

NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main81185-48800supersedes 81185-48580i200708-200812

AUSTRALIA SPEC&LUXURY PACKAGE

81179COVER, HEADLAMP SOCKET

main81179-48180i200503-200812

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48030i200503-200812

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48030i200503-200812

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48040i200503-200812

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48040i200503-200812

81197BRACKET, HEADLAMP, LOWER RH

main81197-48020i200503-200812

sub81197-48021

81198BRACKET, HEADLAMP, LWR LH

main81198-48020i200503-200812

sub81198-48021

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200503-200812

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200503-200812

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200503-200812

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60046×2i200503-200708

main90075-60077×2i200708-200812

85661MOTOR, HEADLAMP LEVELING, RH

main85661-50040i200503-200812

main85661-48030i200608-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

85662MOTOR, HEADLAMP LEVELING, LH

main85661-50040i200503-200812

main85661-48030i200708-200812

NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

85662AMOTOR, LIGHT REFLECTOR, RH

main85662-48010i200503-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

85662BMOTER, LIGHT REFLECTOR, LH

main85662-48010i200708-200812

NEW ZEALAND SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i200503-200812

89902COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH

main89902-48020i200503-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

89902ACOMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH

main89902-48010i200503-200608

LUXURY PACKAGE&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

9007501015

main90075-01015

9007502025

main90075-02025

9007502727

main90075-02727

9010906293

main90109-06293

37 parts on this diagram · 2 diagrams in section
