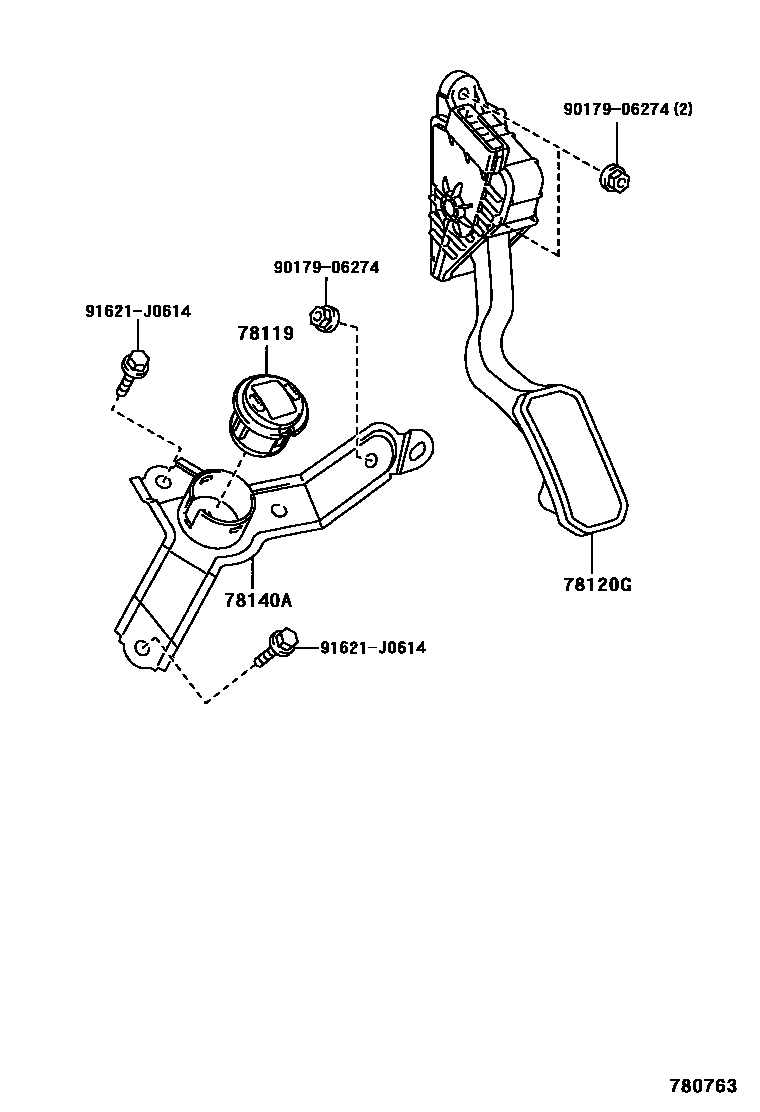

ACCELERATOR LINK

0001 1 0002 1

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iMHU38..LHD200503-200812

78120GROD ASSY, ACCELERATOR PEDAL

main78120-48070iMHU38..RHD200503-200812

sub78120-48071

main78120-48090iMHU38..LHD200503-200812

sub78120-48091

78140ABRACKET, ACCELERATOR CONTROL ROD

main78101-48010iMHU38..LHD200503-200812

main78140-48010iMHU38..RHD200503-200812

9017906274

main90179-06274

91621J0614

main91621-J0614

5 parts on this diagram · 2 diagrams in section
