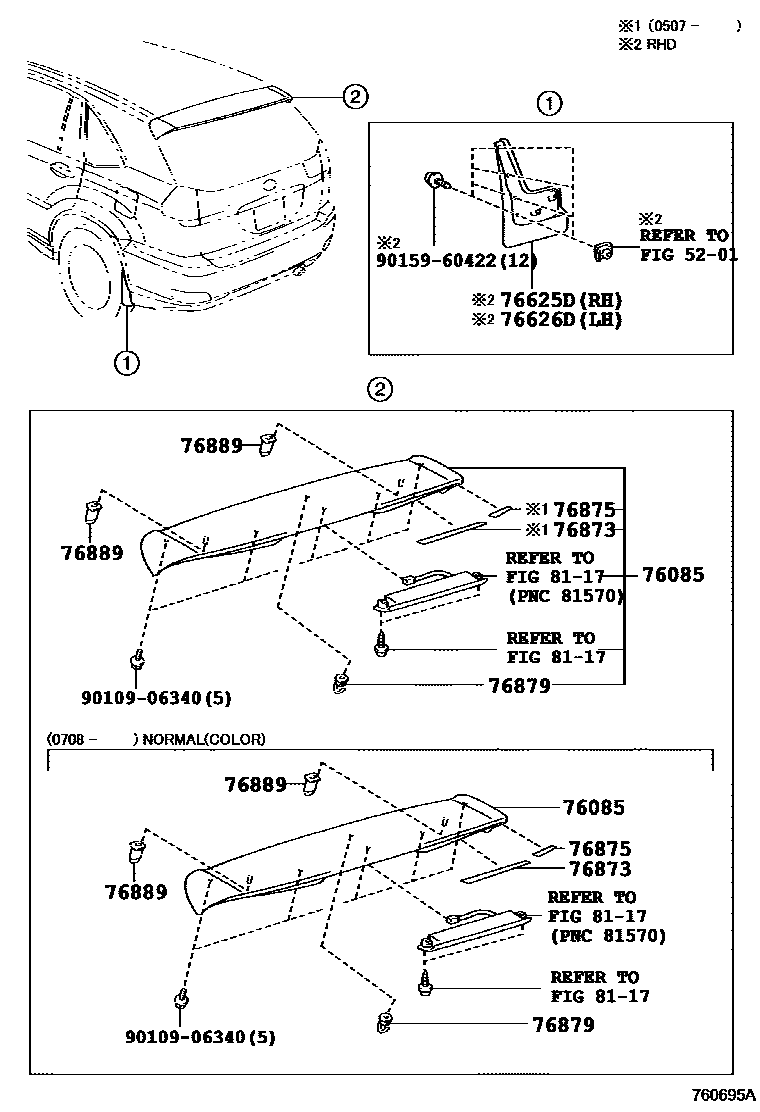

MUDGUARD & SPOILER

5201

76085SPOILER SUB-ASSY, REAR

main76085-48041iMHU38200503-200608

NO PAINT REQ.

sub76085-48042

main76871-48907supersedes 76085-48043iMHU38200708-200812

PAINT REQ.,REAR SPOILER-NORMAL(COLOR)

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-48070iMHU38..RHD200608-200812

AUSTRALIA SPEC

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-48060iMHU38..RHD200608-200812

AUSTRALIA SPEC

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48010×2iMHU38200507-200812

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48010×2iMHU38200507-200812

76879CLIP, REAR SPOILER, NO.1

main76879-48020iMHU38200503-200812

76889CLIP, REAR SPOILER, NO.2

main76889-44020×2iMHU38200503-200812

8117

9010906340

main90109-06340

9015960422

main90159-60422

11 parts on this diagram · 1 diagram in section
