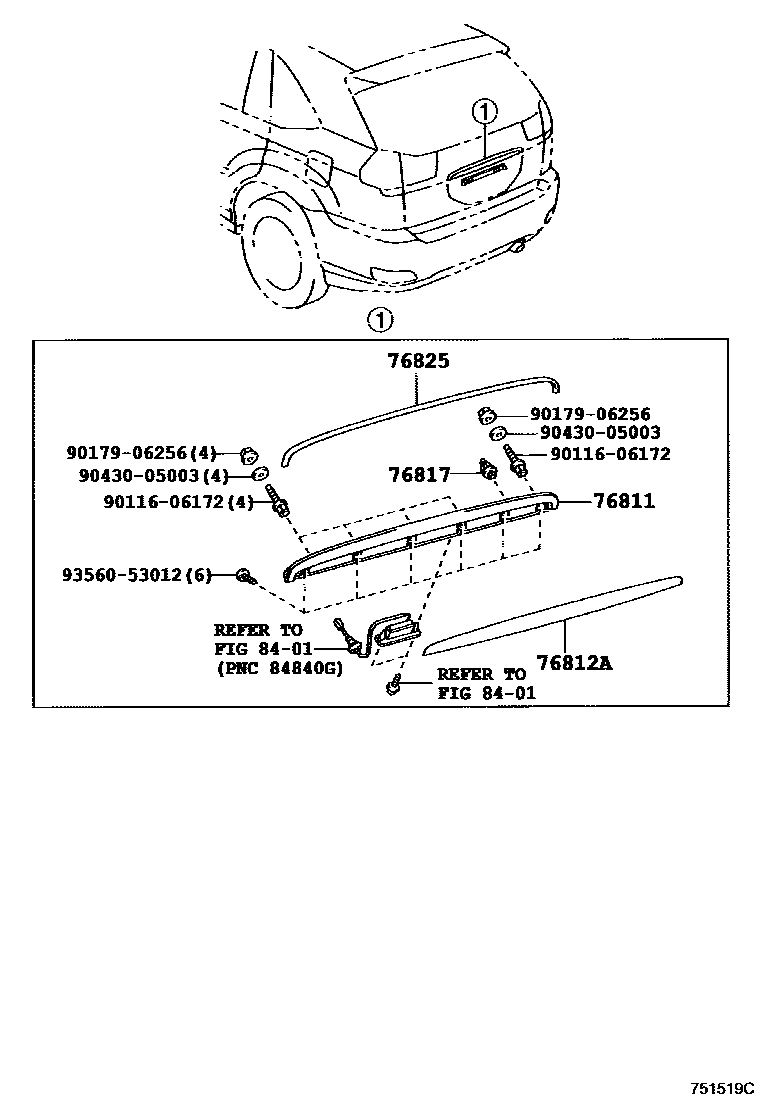

REAR MOULDING

76811GARNISH, BACK DOOR, OUTSIDE

main76811-48050-A0iMHU38200503-200812

WHITE PEARL CS.,062

main76811-48050-B0iMHU38200503-200708

SILVER ME.,1C0

main76811-48050-B1iMHU38200503-200708

DK.GRAY MC.,1E0

main76811-48050-B3iMHU38200708-200812

SILVER ME.,1F7

main76811-48050-B4iMHU38200708-200812

DK.GRAY MC.,1G0

main76811-48050-C0iMHU38200503-200812

BLACK,202

main76811-48050-D2iMHU38200708-200812

RED MC.CS.,3R1

main76811-48050-E0iMHU38200503-200708

BEIGE ME.,4R4

main76811-48050-E1iMHU38200708-200812

COPPER BROWN MC.,4S6

main76811-48050-E2iMHU38200708-200812

BEIGE ME.,4T1

main76811-48050-G0iMHU38200503-200812

LT.OLIVE M.M.,6T1

main76811-48050-G2iMHU38200708-200812

MD.GREEN M.M.,6U3

main76811-48050-J0iMHU38200708-200812

LT.BLUE ME.,8R6

main76811-48050-J1iMHU38200503-200812

DK.BLUE M.M.,8R7

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48010iMHU38200503-200812

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75819-33010iMHU38200503-200812

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48010iMHU38200503-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011606172

main90116-06172

9017906256

main90179-06256

9043005003

main90430-05003

9356053012

main93560-53012

9 parts on this diagram · 1 diagram in section
