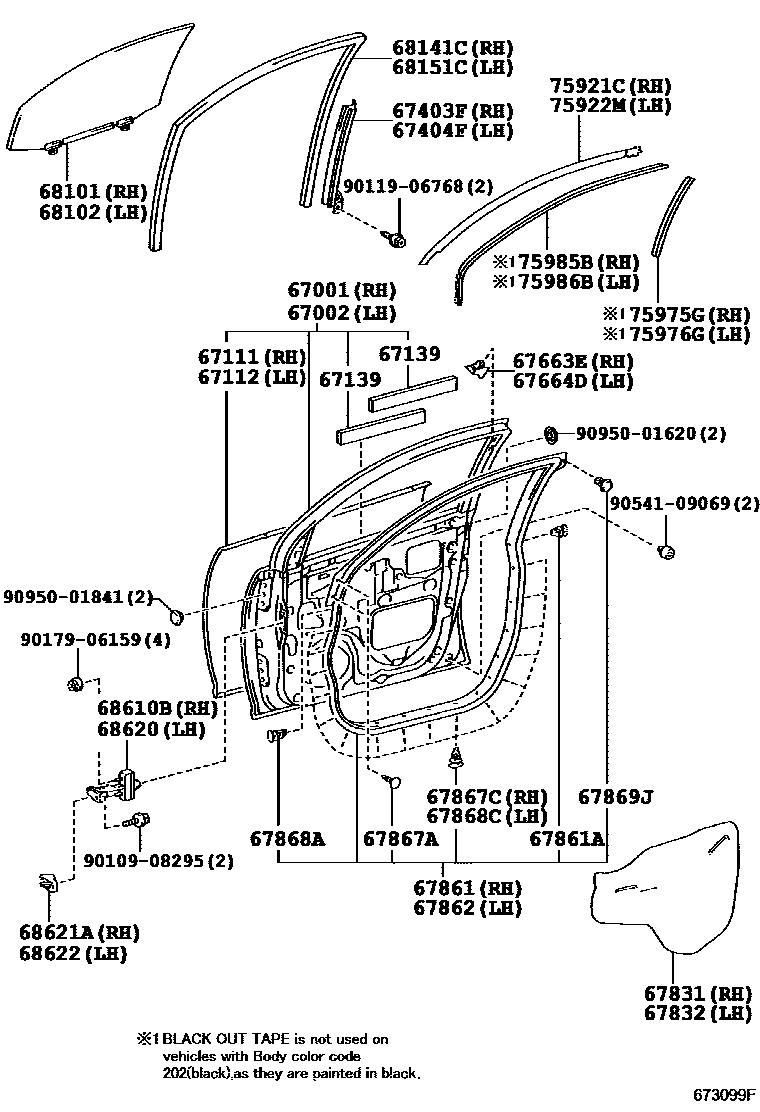

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-48060iMHU38200503-200812

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-48060iMHU38200503-200812

67111PANEL, FRONT DOOR, OUTER RH

main67111-48040iMHU38200503-200812

67112PANEL, FRONT DOOR, OUTER LH

main67112-48040iMHU38200503-200812

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67813-44010×4iMHU38200503-200812

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-48040iMHU38200503-200812

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-48040iMHU38200503-200812

67663EGARNISH, DOOR FRAME, RH

main67663-48010iMHU38200503-200812

67664DGARNISH, DOOR FRAME, LH

main67664-48010iMHU38200503-200812

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-48030iMHU38200503-200508

main67831-48031iMHU38200509-200510

main67831-48032iMHU38200510-200812

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-48030iMHU38200503-200508

main67832-48031iMHU38200509-200510

main67832-48032iMHU38200510-200812

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-48030iMHU38200503-200812

main67861-48040iMHU38..LHD200503-200708

FINLAND SPEC

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main90467-04034×2iMHU38200503-200812

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-48030iMHU38200503-200812

main67862-48040iMHU38..LHD200503-200708

SWEDEN SPEC

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-05097-22×4iMHU38200503-200812

BLACK

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×16iMHU38200503-200812

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×2iMHU38200503-200812

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×16iMHU38200503-200812

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-35010×2iMHU38200503-200812

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-48070iMHU38200503-200808

*UVCTT,T=5.0,GREEN

main68101-48071iMHU38200808-200812

*UVCTT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-48070iMHU38200503-200808

*UVCTT,T=5.0,GREEN

main68102-48071iMHU38200808-200812

*UVCTT,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-48031iMHU38200503-200812

68151CRUN, FRONT DOOR GLASS, LH

main68151-48031iMHU38200503-200812

68610BCHECK ASSY, FRONT DOOR, RH

main68610-48030iMHU38200503-200812

68620CHECK ASSY, FRONT DOOR, LH

main68620-48020iMHU38200503-200812

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iMHU38200503-200812

68622COVER, FRONT DOOR CHECK, LH

main68622-53010iMHU38200503-200812

75921CTAPE, BLACK OUT, NO.1 RH

main75921-48020iMHU38200503-200812

75922MTAPE, BLACK OUT, NO.1 LH

main75922-48020iMHU38200503-200812

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-48010iMHU38200503-200812

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-48010iMHU38200503-200812

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-48020iMHU38200503-200812

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-48020iMHU38200503-200812

9010908295

main90109-08295

9011906768

main90119-06768

9017906159

main90179-06159

9054109069

main90541-09069

9095001620

main90950-01620

9095001841

main90950-01841

39 parts on this diagram · 2 diagrams in section
