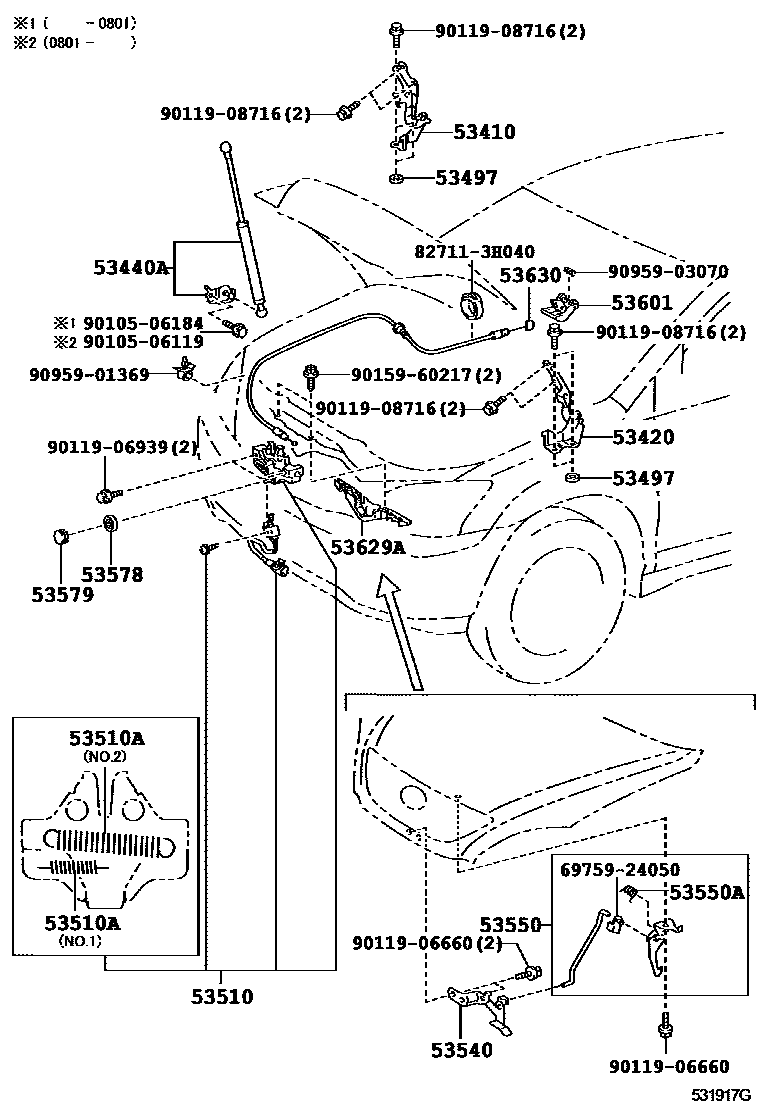

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-48030iMHU38200503-200812

53420HINGE ASSY, HOOD, LH

main53420-48030iMHU38200503-200812

53440ASUPPORT ASSY, HOOD, RH

main53440-49125iMHU38200503-200704

main53440-49145iMHU38200704-200812

sub53440-49155

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iMHU38200503-200812

T=1.0

53510LOCK ASSY, HOOD

main53510-48070iMHU38..LHD200503-200812

main53510-48080iMHU38..RHD200503-200812

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iMHU38200503-200812

WD=0.9,CW=20.5,NO.1

main90506-18068iMHU38200503-200812

WD=1.8,CW=18,NO.2

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-48010iMHU38200503-200812

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-48020iMHU38200503-200812

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iMHU38200503-200812

53578NUT, HOOD LOCK

main53578-50010iMHU38200503-200812

53579CAP, HOOD LOCK NUT

main53579-50010iMHU38200503-200812

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-A0iMHU38..RHD200503-200812

IVORY,TRIM0#

main53611-12040-B6iMHU38..RHD200503-200812

LT.GRAY,TRIM1#

main53611-12040-C0iMHU38..RHD200503-200812

BLACK,TRIM2#

main53611-22010-A0iMHU38..LHD200503-200812

IVORY,TRIM0#

main53611-22010-B6iMHU38..LHD200503-200812

LT.GRAY,TRIM1#

main53611-22010-C0iMHU38..LHD200503-200812

BLACK,TRIM2#

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-48010iMHU38200503-200812

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-48030iMHU38200503-200812

6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050

827113H040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H040

9010506119

main90105-06119

9010506184

main90105-06184

9011906660

main90119-06660

9011906939

main90119-06939

9011908716

main90119-08716

9015960217

main90159-60217

9095901369

main90959-01369

9095903070

main90959-03070

24 parts on this diagram · 2 diagrams in section
