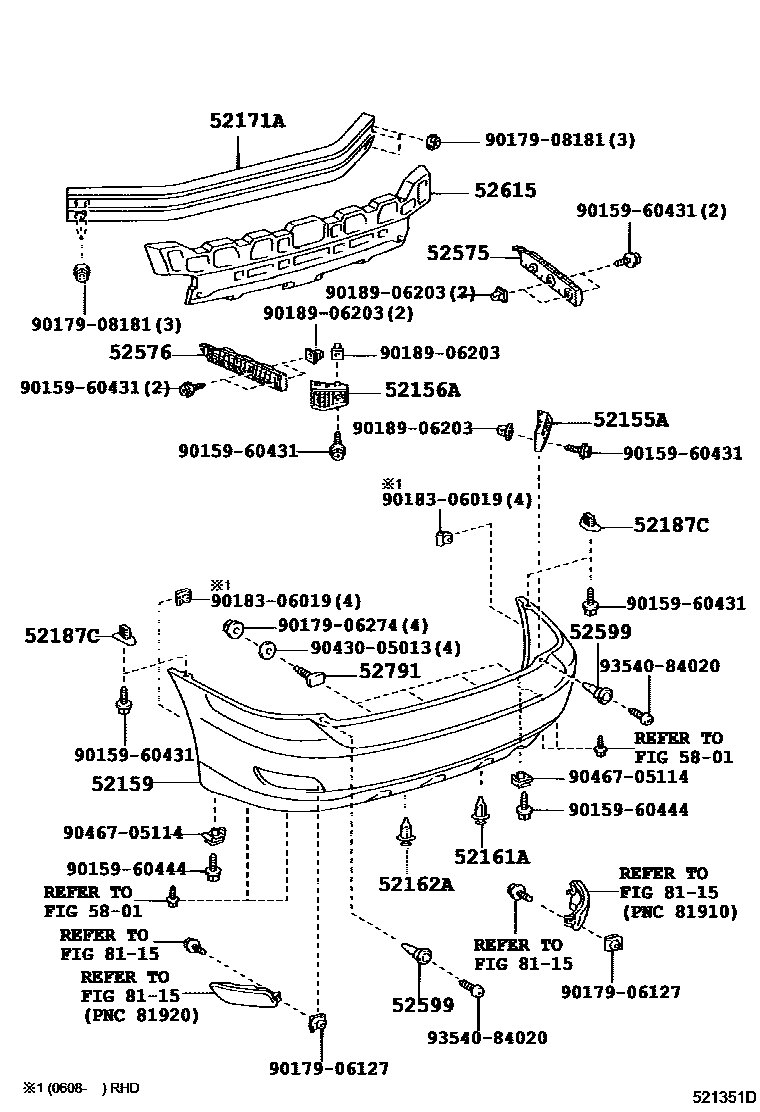

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-48011iMHU38200503-200812

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-48011iMHU38200503-200812

52159COVER, REAR BUMPER

main52159-48903iMHU38200503-200812

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-16010iMHU38200503-200812

sub52161-0K040

52162APIECE, REAR BUMPER, LH

main52161-16010iMHU38200503-200812

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48090iMHU38200503-200812

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-48010×2iMHU38200503-200812

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48020iMHU38200503-200812

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48020iMHU38200503-200812

52599STOPPER, REAR BUMPER, UPPER

main52599-48031×2iMHU38200503-200812

52615ABSORBER, REAR BUMPER ENERGY

main52615-48070iMHU38200503-200812

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-33010×4iMHU38200503-200812

5801

8115

9015960431

main90159-60431

9015960444

main90159-60444

9017906127

main90179-06127

9017906274

main90179-06274

9017908181

main90179-08181

9018306019

main90183-06019

9018906203

main90189-06203

9043005013

main90430-05013

9046705114

main90467-05114

9354084020

main93540-84020

24 parts on this diagram · 1 diagram in section
