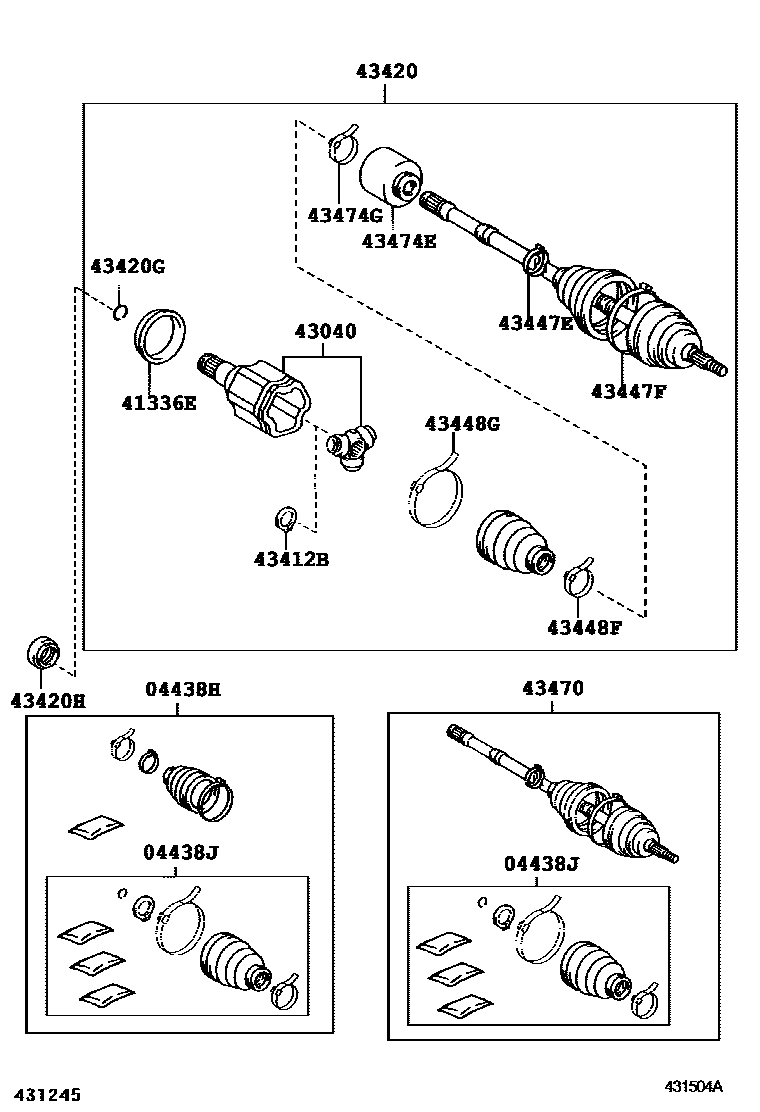

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-48030iMHU38200503-200812

sub04428-48031

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-48100iMHU38200503-200812

sub04437-62010

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-48010iMHU38200503-200812

sub41336-07030

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-48040iMHU38200503-200812

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-48010iMHU38200503-200812

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-48110iMHU38200503-200812

sub43420-48111

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-33002iMHU38200503-200812

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50031iMHU38200503-200812

sub90311-50053

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48070iMHU38200503-200812

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48080iMHU38200503-200812

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-22020iMHU38200503-200812

sub42345-50070

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42346-22010iMHU38200503-200812

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-49425iMHU38200503-200812

sub43470-80321

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-48030iMHU38200503-200812

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-14010iMHU38200503-200812

15 parts on this diagram · 2 diagrams in section
