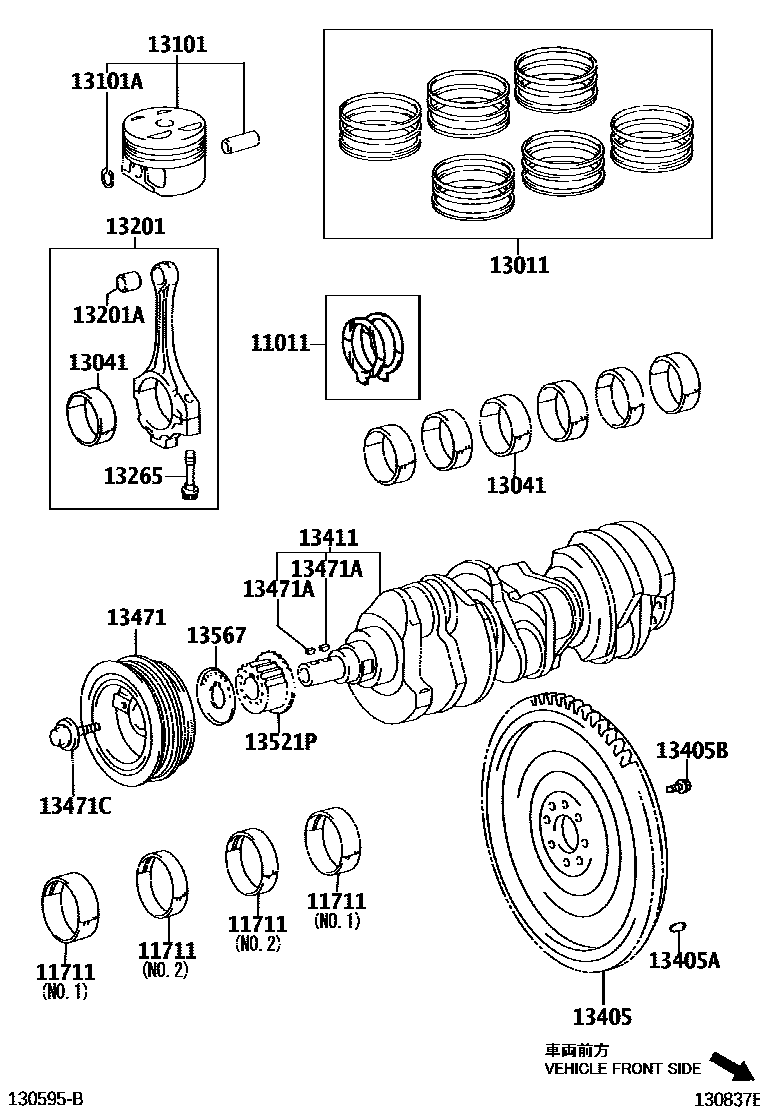

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK6,NO.2,REFER R/M
MARK7,NO.2,REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK6,NO.1,REFER R/M
MARK7,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
sub13265-28020
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
(L)
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
13567GUIDE, TIMING BELT, NO.2
18 parts on this diagram · 1 diagram in section
