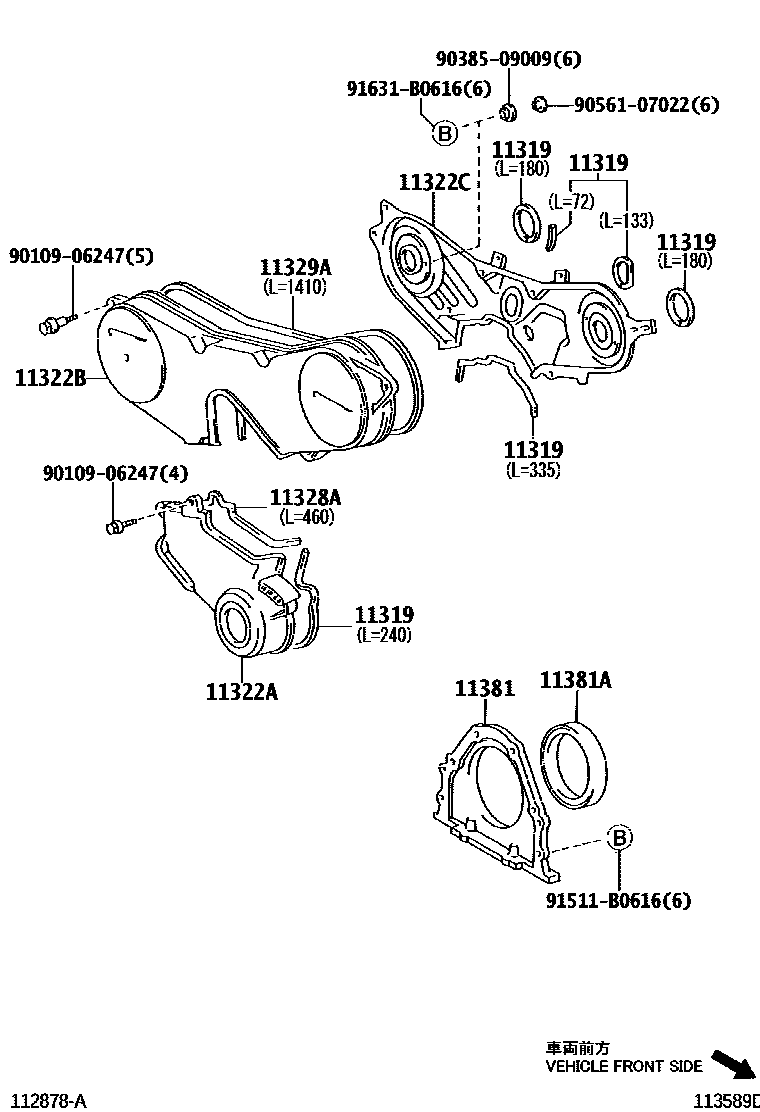

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010×5i3MZFE..MHU38200503-200812

11322ACOVER, TIMING BELT, NO.1

main11321-20030i3MZFE..MHU38200503-200812

11322BCOVER, TIMING BELT, NO.2

main11303-20040i3MZFE..MHU38200503-200812

11322CCOVER, TIMING BELT, NO.3

main11323-20030i3MZFE..MHU38200503-200812

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i3MZFE..MHU38200503-200812

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i3MZFE..MHU38200503-200812

11381RETAINER, ENGINE REAR OIL SEAL

main11381-20010i3MZFE..MHU38200503-200812

11381ASEAL, ENGINE REAR OIL

main90080-31053i3MZFE..MHU38200503-200606

(L)

sub90311-A0027

main90311-92008i3MZFE..MHU38200503-200606

(J)

9010906247

main90109-06247

9038509009

main90385-09009

9056107022

main90561-07022

91511B0616

main91511-B0616

91631B0616

main91631-B0616

13 parts on this diagram · 1 diagram in section
