STANDARD TOOL

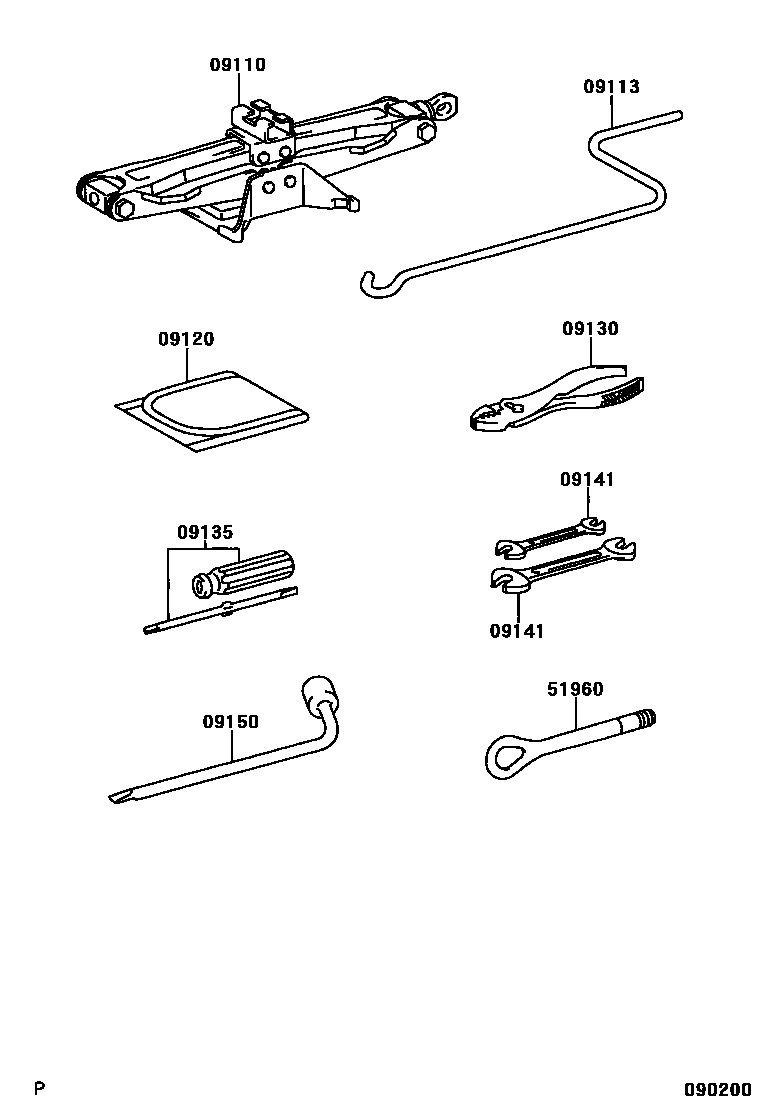

Parts diagram
09110JACK ASSY
main09111-0W090i200503-200703
main09111-0W091i200704-200812
sub09111-0W092
main09110-48020i200608-200703
CHINA SPEC
main09110-48021i200704-200812
CHINA SPEC
main09110-48040i200608-200703
NEW ZEALAND SPEC
main09110-48041i200704-200812
NEW ZEALAND SPEC
09113HANDLE, JACK
main09113-06020i200503-200812
09120BAG, TOOL
main09120-48010i200503-200812
09130PLIERS
main09130-50030i200503-200812
09135DRIVER, SCREW
main09135-50050i200608-200812
main99915-10700i200503-200607
09141SPANNER
main09141-50050i200503-200812
8 X 10
main09141-50060i200503-200812
12 X 14
09150WRENCH, HUB NUT BOX
main09150-48010i200503-200812
51960HOOK ASSY, FRONT
main51961-48030×2i200503-200812
sub51961-44010

8 parts on this diagram · 1 diagram in section
