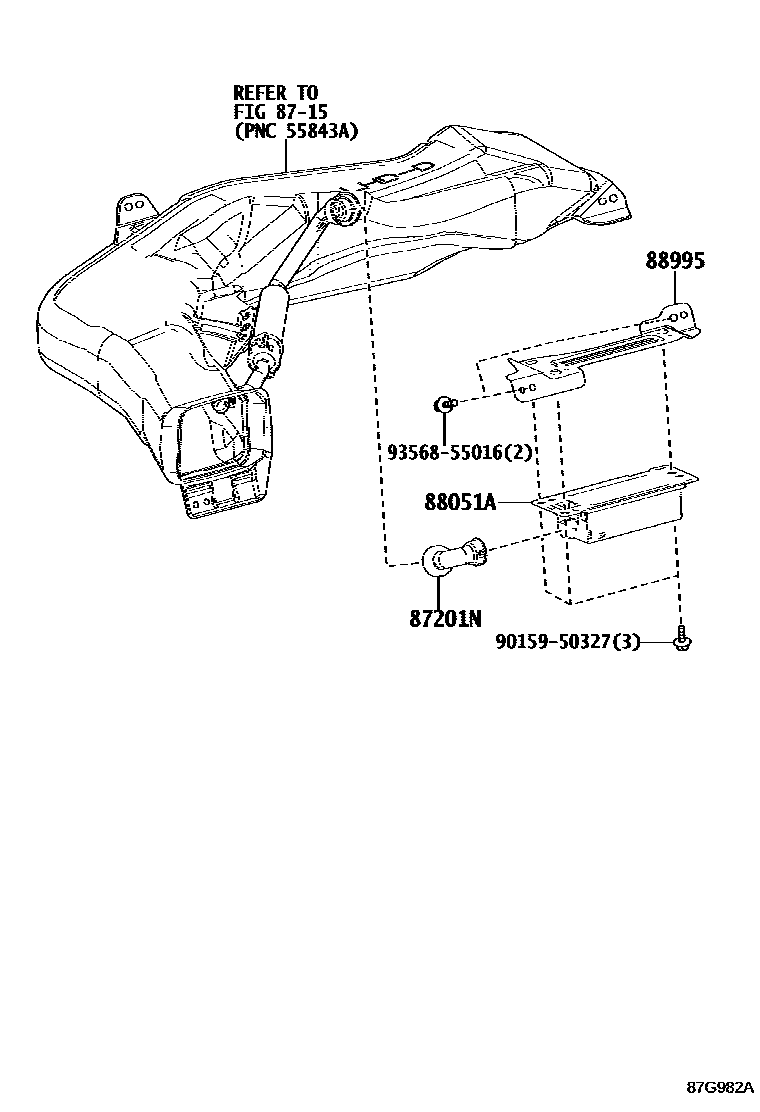

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-48050iGGL26,GYL26..LHD..(GCC,GEN); GYL26..CHI201908

MINUS ION GENERATOR-WITH

main55848-48060iGGL26,GYL26..RHD201712-201908

MINUS ION GENERATOR-WITH

88051AGENERATOR SUB-ASSY,ION

main88051-28060iGGL26,GYL26..GCC,GEN; GYL26..CHI201908

MINUS ION GENERATOR-WITH

88995BRACKET,ION GENERATOR, NO.1

main88995-48020iGGL26,GYL26..LHD..(GCC,GEN); GYL26..CHI201908

MINUS ION GENERATOR-WITH

main88995-48030iGGL26,GYL26..RHD201712-201908

MINUS ION GENERATOR-WITH

9015950327

main90159-50327

9356855016

main93568-55016

6 parts on this diagram · 2 diagrams in section
