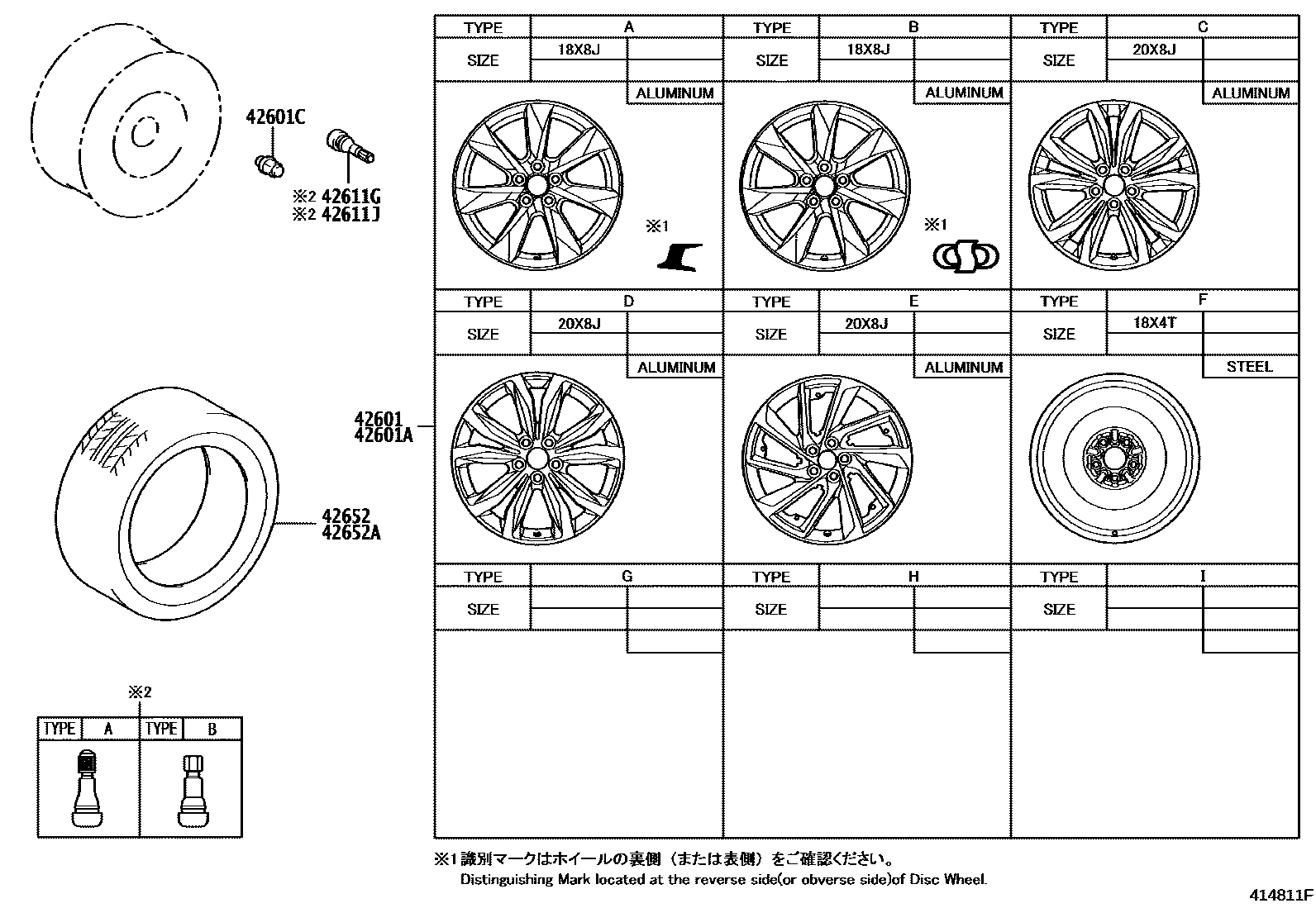

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-48830×4i201712-201908

20X8J,#,COSTA RICA&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE ALUMINUM,TYPE C:REFER ILLUST.

main42611-48850×4i201712-201907

20X8J,#,DOMINICA SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE MACHINING,TYPE D:REFER ILLUST.

main42611-48851×4i201908

20X8J,#,TIRE & DISC WHEEL-235/55R20 SUMMER TIRE,TYPE D:REFER ILLUST.

main42611-48890×4supersedes 4261A-48201i201712-201908

20X8J,#,BRUNEI SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE SELECTORBULL,TYPE E:REFER ILLUST.

main42611-48B10×4i201908-202107

20X8J,#,VIETNAM SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE BRONZE COLORED,TYPE D:REFER ILLUST.

main42611-48B20×4i202107

20X8J,#,VIETNAM SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE BRONZE COLORED,TYPE D:REFER ILLUST.

main4261A-48230×4supersedes 42611-48A90i201908

20X8J,*HCMP,MACAO SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE HIMETA,TYPE H:REFERILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-48751i201712-201908

18X4T,TYPE F:REFER ILLUST.

18X4T,TYPE F:REFER ILLUST.

main42601-48051i201712-201908

18X4T,BRAZIL SPEC,TYPE F:REFER ILLUST.

18X4T,INDONESIA SPEC,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201908

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4i201712-201908

MIDDLE AMERICA SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE ALUMINUM,TYPE B:REFERILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201712-201908

TYPE A:REFER ILLUST.

42652TIRE

main42652-48720×4supersedes 42652-48480i201712-201908

235/55R20,*D/L,BRUNEI SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE MACHINING

main42652-48A90×4supersedes 42652-48500i201712-201908

235/55R20 102V,*D/L,SOUTH AMERICA SPEC&TIRE & DISC WHEEL-235/55R20 SUMMER TIRE MACHINING

42652ATIRE (FOR SPARE)

main4265A-48012i201712-201908

T165/90D18

main42652-48691i201712-201908

T165/90D18,GOODYEAR,NEW ZEALAND SPEC

7 parts on this diagram · 4 diagrams in section
