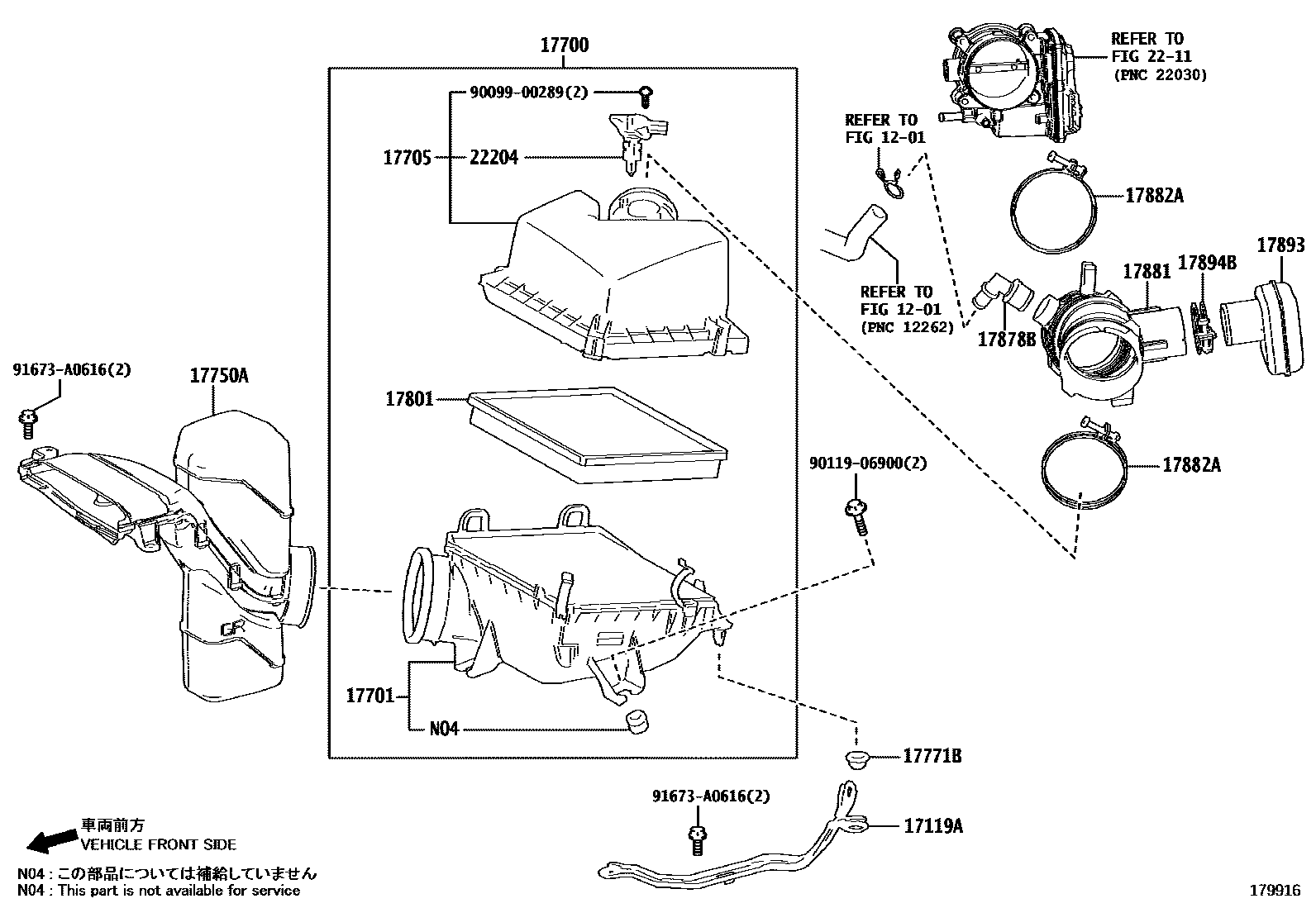

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-31120i2GRFKS..GGL26201712-201908

main17119-31130i2GRFXS..GYL26201908

17700CLEANER ASSY, AIR

main17700-31B10i2GRFKS..GGL26201908

main17700-31B30i2GRFXS..GYL26201712-201908

17701CASE SUB-ASSY, AIR CLEANER

main17701-31740i2GRFKS..GGL26201712-201908

17705CAP SUB-ASSY, AIR CLEANER

main17705-31470i2GRFKS..GGL26201908

main17705-31480i2GRFXS..GYL26201908

17750AINLET ASSY, AIR CLEANER

main17750-31030i2GRFKS..GGL26201908

main17750-31050i2GRFXS..GYL26201908

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90480-18006i2GR#..GGL26,GYL26201712-201908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P090i2GRFXS..GYL26201908-202209

(L)

main17801-31131i2GRFKS..GGL26201712-201908

(J)

main17801-45031i2GRFXS..GYL26201908-202209

(J)

17878BTUBE, VENTILATION

main17878-31020i2GR#..GGL26,GYL26201712-201908

17881HOSE, AIR CLEANER, NO.1

main17881-31400i2GRFKS..GGL26201908

main17881-31411i2GRFXS..GYL26201712-201908

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10900×2i2GR#..GGL26,GYL26201712-201908

17893RESONATOR, INTAKE AIR

main17893-31170i2GRFKS..GGL26201712-201908

main17893-31180i2GRFXS..GYL26201908

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10330i2GRFXS..GYL26201908

main96111-10550i2GRFKS..GGL26201908

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2GR#..GGL26,GYL26201908

9009900289

main90099-00289

9011906900

main90119-06900

91673A0616

main91673-A0616

18 parts on this diagram · 2 diagrams in section
